Item # 1007 459 006/1007 497 702
1007 497 649/1007 503 599
Model # 2364FP/2364FP-1
2364FP-2/2364FP-3
USE AND CARE GUIDE

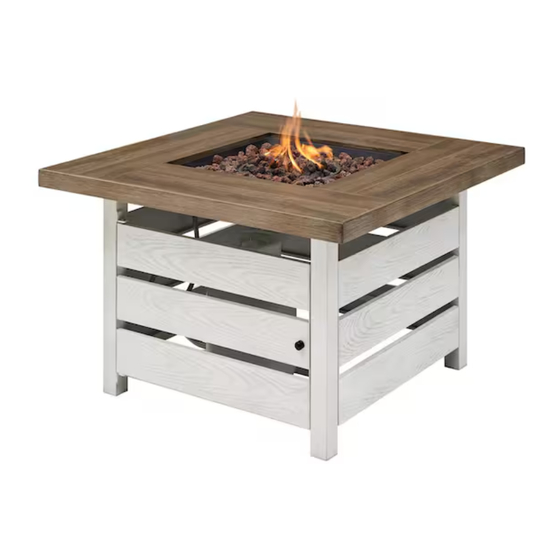

SUMMERFIELD 39.5 IN. SQUARE STEEL LP GAS FIRE PIT
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fire pit. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Related Manuals for Home Decorators Collection 2364FP
Summary of Contents for Home Decorators Collection 2364FP
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fire pit. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........2 Assembly . -
Page 3: Safety Information
Safety Information (continued) Use factory approved replacement parts and accessories only. Use of unapproved parts or WARNING: accessories can void the warranty on this product and result in a hazardous condition. Please contact us for information regarding replacement hoses, electrodes, ignition modules, lava rocks, logs, etc. The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54;... - Page 4 Safety Information (continued) Before each use of this gas appliance, open the LP (liquid propane) tank drawer and inspect the LP hose. If there is evidence of excessive abrasion or wear, or the hose is cut, it must be replaced prior to the gas appliance being put into operation.
-
Page 5: Pre-Assembly
Safety Information (continued) WARNING: Fuels used in liquefied propane gas appliances, and the products of combustion of such fuels, can expose you to chemicals including benzene, which is known to the State of California to cause cancer and cause birth defects or other reproductive harm. - Page 6 Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Bolt Gasket Bolt Gasket Allen key PACKAGE CONTENTS Part Description Quantity Part Description Quantity Front panel Connecting rod Tabletop Left panel Bracket Right panel Back panel Lava rocks...
-
Page 7: Assembly
Assembly Installing the front and the left panels □ Attach the front panel (A) to the Left panel (B) with bolts (AA) and gaskets (BB). Don't tighten fully at this step. Installing the right panel □ Attach the right panel (C) to the other side of the front panel (A) with bolts (AA) and gaskets (BB). - Page 8 Assembly (continued) Installing the tabletop □ Place the tabletop (F) face down on a non-abrasive surface. □ Place the four panels of the frame (A, B, C, and D) on top of the upside-down tabletop. □ Align the peg which is mid-way down the rod at the top of the back panel (D) with the hole underneath the tabletop (F) as shown in the circle.
- Page 9 Assembly (continued) Preparing to install the gas tank □ Gently open the back panel (D). Installing and using the gas tank □ Connect the gas hose to the LP gas cylinder. Hand tighten clockwise only. □ To disconnect the gas hose from LP gas cylinder, loosen the connector by turning counterclockwise by hand.
-
Page 10: Operation
Assembly (continued) Placing the lava rocks □ Add lava rocks (H) to the fire bowl. Maximum recommended amount of NOTE: lava rocks (H) for use in the fire bowl is 4~4.5 kg. Operation BEFORE LIGHTING: Firepit should be thoroughly inspected before each use and by a qualified service person at least annually. If relighting a hot fire pit, always wait at least 5 minutes. -
Page 11: Leak Check
Operation (continued) SHUTDOWN Push in and turn control knob clockwise to OFF position. Turn LP cylinder gas valve clockwise to OFF position when appliance is not in use. CAUTION: The gas supply must be turned off at the LP gas supply cylinder when this appliance is not in use. Leak Check WARNING: Perform all leak tests outdoors. - Page 12 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
