USE AND CARE GUIDE

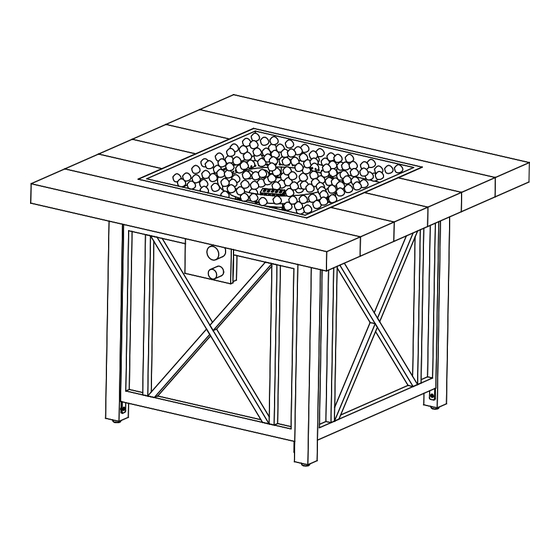

NORTH LAKE 34 IN. SQUARE FIRE PIT
ANSI Z21.97/CSA 2.41-2014
Outdoor Decorative Gas Appliances
R
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-998-7021
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this firepit.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products
available for your home improvement needs. Thank you for choosing Home Decorators Collection!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FG-BTB5PCFC-FP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Home Decorators Collection FG-BTB5PCFC-FP

Summary of Contents for Home Decorators Collection FG-BTB5PCFC-FP

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this firepit. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Assembly ............... 7 Warranty ................. 4 Operation– Gas Cylinder Installation......10 What is Covered ............... 4 Operation- Natural Gas Conversion ......11 Operation – Leak Check ..........13 What is Not Covered ..............4 Operation –...
  • Page 3 Safety Information (continued) 18. Keep the fuel supply hose away from any heated surface. 19. Never use this appliance closer than 10 ft. from anything flammable, including houses or overhead tree branches. 20. Never use gasoline, kerosene, or any other liquid fuel to start a fire. 21.

  • Page 4: Warranty

    Warranty YEAR LIMITED WARRANTY WHAT IS COVERED Fire Pits Burner, steel fire pit bowl, all mechanical parts and fittings to control panel and burner assembly, and all fire pit tops that are not cast aluminum are warranted for a period of one (1) year from original date of purchase, against defects in material and or workmanship. Rust is not covered.

  • Page 5: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Please read this entire instruction manual before beginning assembly. Identify all parts packed in carton using the parts lists. Remove all protective materials. If any parts are missing or damaged, do not attempt to assemble. NOTE: Place parts on a nonabrasive surface to avoid scratching.

  • Page 6: Pre-Assembly (Continued)

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Table top assembly Right panel Left panel Back panel Front-right leg Back-right leg Front-left leg Back-left leg Upper beam Bottom beam Gas cylinder support Foot glider Weather cover Handle assembly Lava rock (13.2 lbs) 2 package Natural gas orifice...

  • Page 7: Assembly

    Assembly Attaching the left panel and back panel Attaching the right panel Attach the Left Panel (C) to Front-Left Leg (H) and Back-Left □ □ Attach the Right Panel (B) to the Front-Right Leg (F) and the Leg (I) with four Bolts (AA) and four Washers (BB) using the Back-Right Leg (G) with four Bolts (AA) and four Washers (BB) Hex Screw Driver (CC).
  • Page 8 Assembly (continued) Attaching the upper beam and bottom Attaching the gas cylinder support beam Attach the Gas Cylinder Support (L) to the Right Panel (B) and Attach the Upper Beam (J) to the Front-Left Leg (H) and the □ □ the Left Panel (C) with four Bolts (AA) and four Washers (BB) Front-Right Leg (F) with four Bolts (AA) and four Washers (BB) using the Hex Screw Driver (CC).
  • Page 9 Assembly (continued) Placing the lava rocks in the burner Attaching the table top assembly Attach the assembled base to the Table Top Assembly (A) □ □ Place the Lava Rock (P) around the burner, and then remove the with four Bolts (AA) and four Washers (BB) by using the Hex label from the pilot box.

  • Page 10: Operation- Gas Cylinder Installation

    Operation – Gas Cylinder Installation Installing the gas cylinder Connecting the gas cylinder Open the door and place the gas cylinder into the Gas Cylinder □ □ Connect the regulator, screw the black handle clockwise to Support (L). tighten, turn the black handle counterclockwise to remove. The hose must point down.

  • Page 11: Operation- Natural Gas Conversion

    Operation – Natural Gas Conversion Disconnecting the propane hose Replacing with the natural gas orifice □ Disconnect the propane hose from the gas valve. □ Replace the propane orifice with the natural gas orifice, screw the natural gas orifice with the bellows tightly, then connect and tighten the natural gas orifice with inlet tube.
  • Page 12 □ Stick and cover the conversion label onto the propane rating plate. Serial Number: Model Number: FG-BTB5PCFC-FP CAUTION: This appliance has been converted to use natural gas. Propane orifice dia2.09mm, natural gas orifice dia4.18mm. Rated Heat Input : 50,000 BTU/hr Type of Gas : Natural gas Max Gas Supply Pressure : 7 inches water column (1.74kPa)

  • Page 13: Operation - Leak Check

    Operation – Leak Check Safety Information Checking for leaks □ □ Always perform the leak test as described below before Make 2~3 oz. of leak solution by mixing one part liquid lighting this appliance or each time the cylinder is connected dishwashing detergent and three parts water.

  • Page 14: Operation - Battery Installation And Lighting The Fire Pit

    Operation – Battery lnstallation and lighting the Fire Pit Battery Installation Lighting Instruction □ Make sure the control knob is in the “OFF” position. □ Push in gas control knob slightly and turn to “OFF”. □ Unscrew the push button cap on the igniter module located on □...

  • Page 15: Maintenance

    Maintenance □ Air flow must be unobstructed. Keep ventilation openings, controls, burner, and circulating air passageways clean and clear the debris. Signs of possible blockage include the following: (1) Gas odor with extreme yellow tipping of flame. (2) Fire pit does NOT reach the desired temperature. (3) Fire pit flame is excessively uneven.
  • Page 16 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-998-7021 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
