Item #1007 503 548/1007 497 706
1007 503 494/1007 503 589
Model # 2479FP-1/2479FP-2
2479FP-3/2479FP-4
USE AND CARE GUIDE

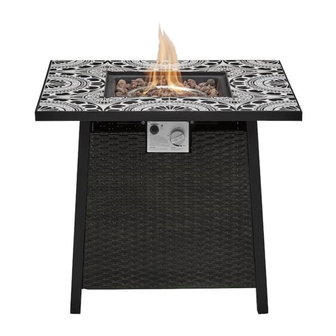

TUCSON 30 IN. SQUARE STEEL TILE TOP LP GAS FIRE PIT
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this re pit. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection 2479FP-1
Summary of Contents for Home Decorators Collection 2479FP-1
- Page 1 THANK YOU We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this re pit. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........2 Assembly . -
Page 3: Safety Information
Safety Information (continued) WARNING: Use factory approved replacement parts and accessories only. Use of unapproved parts or accessories can void the warranty on this product and result in a hazardous condition. Please contact us for information regarding replacement hoses, electrodes, ignition modules, re glasss, logs, etc. - Page 4 Safety Information (continued) Before each use of this gas appliance, open the LP (liquid propane) tank drawer and inspect the LP hose. If there is evidence of excessive abrasion or wear, or the hose is cut, it must be replaced prior to the gas appliance being put into operation. Use only the replacement hose assembly speci ed in this manual.
-
Page 5: Pre-Assembly
Safety Information (continued) WARNING: Fuels used in lique ed propane gas appliances, and the products of combustion of such fuels, can expose you to chemicals including benzene, which is known to the State of California to cause cancer and cause birth defects or other reproductive harm. - Page 6 Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Part Description Quantity Bolt Bolt Gasket Gasket Bolt Allen key Bolt PACKAGE CONTENTS Part Description Quantity Part Description Quantity Back panel Right panel Left panel Tabletop Front panel Lava rocks Bottom bracket...
-
Page 7: Assembly
Assembly Installing the back and left panels □ Place parts on a soft, non-abrasive surface. □ Attach the left panel (B) to the back panel (A) with bolts (AA) and gaskets (BB). □ Do not tighten fully. Installing the front panel □... - Page 8 Assembly (continued) Installing the right panel □ Carefully turn the frame upside down. □ Attach the right panel (E) to the back panel (A) with bolts (DD). Installing the tabletop □ Place the tabletop (F) facing down on a non-abrasive surface. □...
- Page 9 Assembly (continued) Installing and using the gas tank □ □ Connect the gas hose from the tabletop (F) to the LP gas cylinder. Hand tighten clockwise only. □ To disconnect the gas hose from LP gas cylinder, loosen the connector by turning counterclockwise by hand. □...
-
Page 10: Operation
Assembly (continued) Placing the lid □ □ Place the lid (H) on the top of the re bowl to complete the assembly. CAUTION: Keep the gas tank xed in the tank base. Operation BEFORE LIGHTING Fire pit should be thoroughly inspected before each use and by a quali ed service person at least annually. If relighting a hot re pit, always wait at least 5 minutes. -
Page 11: Leak Check
Operation(continued) SHUTDOWN Push in and turn control knob clockwise to OFF position. Turn LP cylinder gas valve clockwise to OFF position when appliance is not in use. CAUTION: The gas supply must be turned off at the LP gas supply cylinder when this appliance is not in use. Leak Check WARNING: Perform all leak tests outdoors. - Page 12 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use. Master No. 267946...
