Summary of Contents for golmar ART 4TH/G+

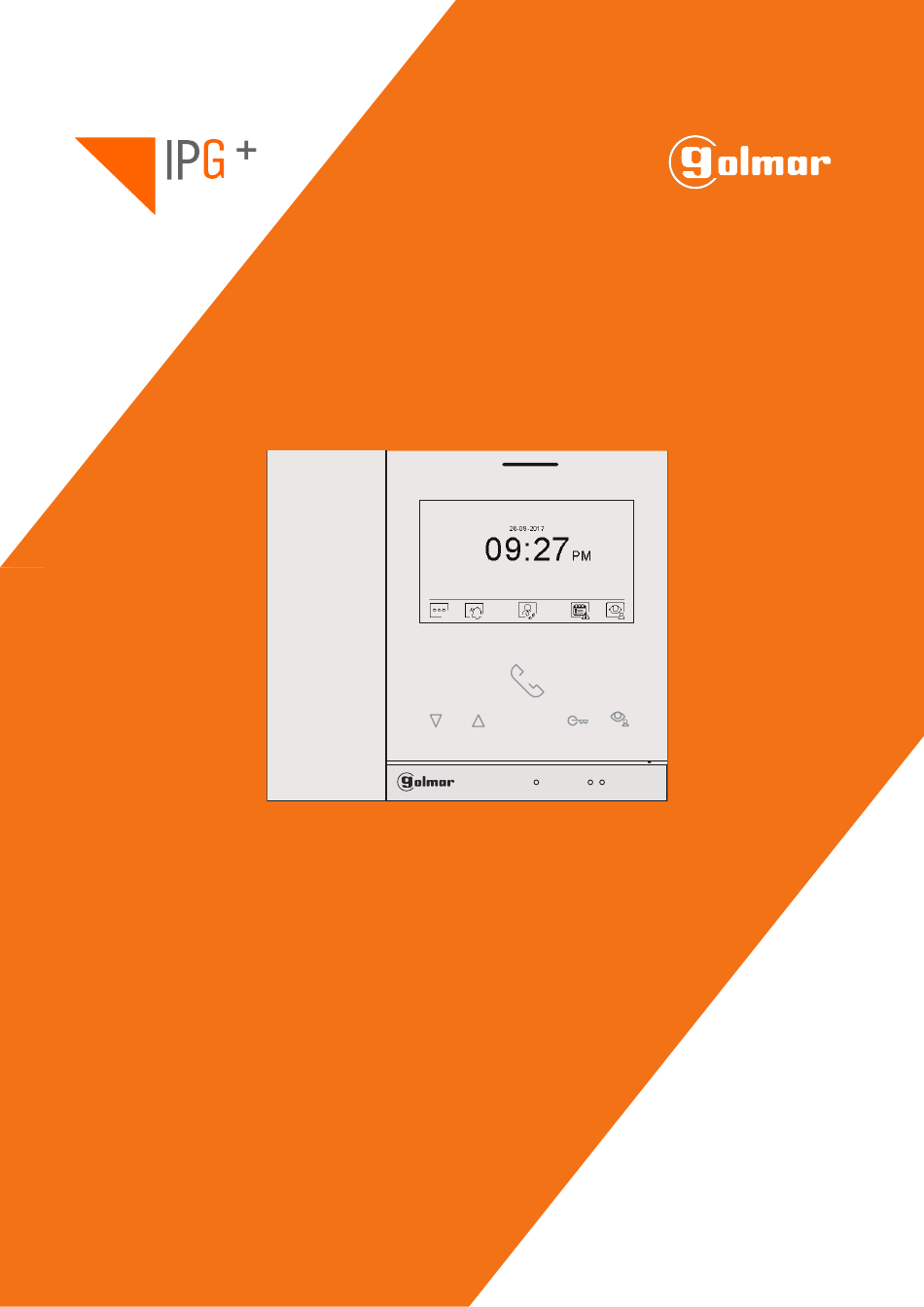

- Page 1 ART 4TH/G+ INSTALLER MANUAL ART 4TH/G+ V01 REV.0122|ENGLISH...
-
Page 2: Table Of Contents
6.1. Settings .................................. 6 6.2. SIP Servers ................................6 6.3. About ..................................7 7. Settings ................................... 7 7.1. Address.................................. 8 7.2. Privacy ................................... 8 7.3. Guard..................................8 7.4. Devices .................................. 9 7.5. SIP ..................................9 7.6. Password ................................9 Footer Infos www.golmar.es... -
Page 3: Safety Cautions And Warnings
- Front side: Speaker. Handset. Capacitive touch buttons. Microphone. - Back side: Supply voltage selector jumper. RJ45 connector. HZ(*) FPOE 18V 18V 18V Auxiliary sounder connector. 48V 48V SPOE 12V local supply connector. (*) Refers to the apartment door bell.. www.golmar.es... -
Page 4: Jumper Description
Add ART 7/G+/PCM DUAL POE y ART 7W/G+/PCM DUAL POE video units if you want the apartment unit has a PCM/G+ private call panel. • In case of a daisy-chain distribution of the devices (IN/OUT), use DCP/G+ injectors with the FA-DC48/G+ power supply and Ethernet DCS/G+ switches in monitors. www.golmar.es... -
Page 5: Initial Configuration
IP address that the system automatically assigned or we manually assigned. Type the IP address in the web browser: 10.0.14.9 Search Log in the Web Client: Thwe password to access is 888999. 10.0.14.9 Search www.golmar.es... -
Page 6: Settings
Enabled Name grandstream- 10.0.128.8 IP Address Transmission port 5060 Port Normally is the 5060. 1000 User Created user and password in the PABX ***** Password Transmission mode* *Transmission mode 0 IP - 1 to 30 SIP Servers Apply Delete www.golmar.es... -
Page 7: About
To return the monitor settings to factory values, we must press on the icon located on the bottom right in the second system settings screen. It will appear the following screen and we must confirm the restore to factory values of the monitor settings. Reset Reset system settings ? www.golmar.es... -
Page 8: Address
With regard to the guard unit settings, we will be able to set to which address we will call when we press the direct call to the guard icon from the main screen of the monitor. Guard Direct call button Block number Unit address www.golmar.es... -
Page 9: Devices
Link to access control 7.6. Password To finish with the system settings menu, we will emphasise in the “Password” section which allows us to change the password to access the system settings of the monitor. Password **** Enter new password www.golmar.es... - Page 10 Sistemas de comunicación S.A. C/ Silici 13. Poligon Industrial Famadas 08940 – Cornellà del llobregat – Spain golmar@golmar.es Telf: +34 934 800 696 www.golmar.es...
