VF-G1000
USER'S MANUAL
Rev. 2.0 - April 2022
1. IN THE BOX

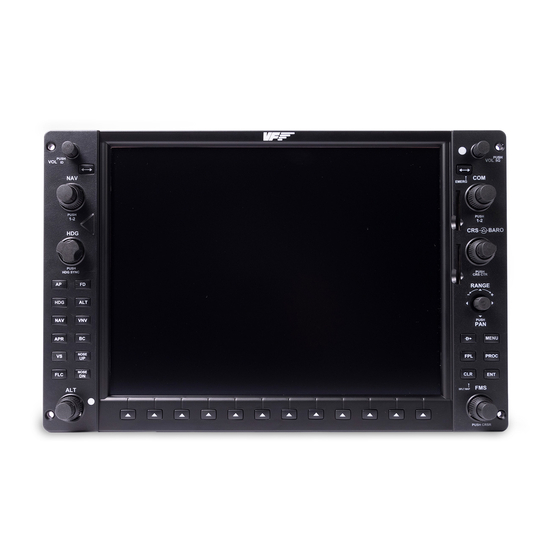

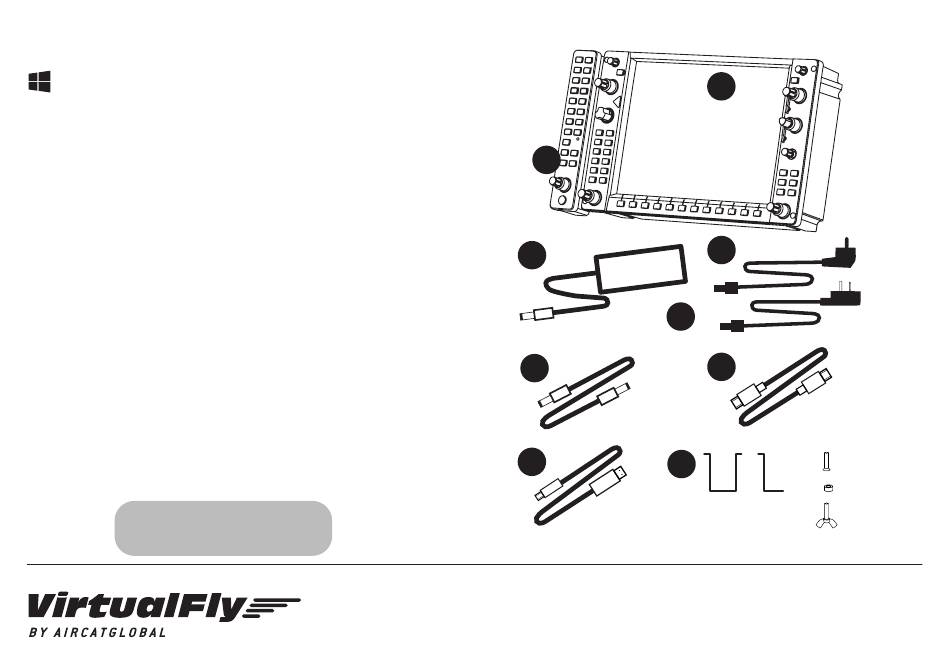

A) PFD/MFD Panel
B) Audio Panel
C) Power supply
D) EU power cable
E) US power cable
F) Jack cable
G) HDMI cable
For support, contact us at
support@virtual-fly.com
H) USB cable
I ) Set of "L"s & "U"s
supports for panel
mounting, includ-
ing M4x16 coun-
tersunk screws,
M4x8 butterfly
screws and 3mm
spacers.
© 2022 Virtual Fly, SL
All trademarks and brand names are
trademarks or registered trademarks of their
respective owners. All rights reserved.
1x
B
C
1x
E
1x
F
2x
H
I
3x
C. Maria Aurèlia Capmany, 21
P.I. La Fàbrica – 08297 Castellgalí (Spain)
Phone: (+34) 938 333 301
https://www.virtual-fly.com
A
2x
D
1x
G
2x
8x
30x
2x
8x
10x
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Aircatglobal VirtualFly VF-G1000
Summary of Contents for Aircatglobal VirtualFly VF-G1000
- Page 1 VF-G1000 USER’S MANUAL Rev. 2.0 - April 2022 1. IN THE BOX H) USB cable A) PFD/MFD Panel I ) Set of “L”s & “U”s supports for panel B) Audio Panel mounting, includ- C) Power supply ing M4x16 coun- D) EU power cable tersunk screws, E) US power cable M4x8 butterfly...
-
Page 2: Hardware Setup
2. HARDWARE SETUP 2.1 ATTACHING TO HOME COCKPIT SETUP Always mount the Audio panel first before the PFD Select, with the back switch indicated below, the panel you and MFD panels. wish to be PFD and the one you wish to be MFD. Acording to the picture below the PFD will be installed on the left and the MFD on the right. - Page 3 You have several options to mount your PFD/MFD displays. OPTION B: Attaching PFD/MFD from the front OPTION A: Attaching PFD/MFD to VF-G1000 Desktop To mount the PFD/MFD to your custom flight panel from Support - Recommended the front, your panel will need a cutout that matches the measurements depicted in the blueprint below.
- Page 4 OPTION B: Attaching PFD/MFD from the back To mount the PFD/MFD to your custom flight panel from the back, your panel will need a cutout that matches You can also mount the PFD/ MFD panels from the back, as the measurements depicted in the blueprint below. All depicted in the diagram below, using the provided supports measurements displayed are in millimeters.
- Page 5 3. Connect the power supply (C) to the back of the PFD panel 2.2 CONNECTING TO PC and two jack cables (F) from the Audio panel to PFD and MFD panels, as displayed in the following diagram. 1. Connect the two HDMI cables (G) to the back of the PFD and MFD panels and the computer where the flight simulation software is running.
- Page 6 2.3 BACKLIGHTING CONTROL 2.4 OSD CONTROLS You can control the backlighting of the PFD, MFD and Audio The screens come configurated from factory, but the user panels from the equipment itself. can access the screen menus using the rotaries and buttons displayed below.
-
Page 7: Software Setup
3. SOFTWARE SETUP 3.2 INTERFACE WITH G1000 SOFTWARE 3.1 CONFIGURING PFD/MFD DISPLAYS IN WINDOWS Open “Display Settings” and make sure that the “Display The PFD, MFD and Audio panels interact with any computer resolution” of both displays is set to 1024x768, as displayed both as a joystick (HID) and with our own custom protocol. - Page 8 VFHub takes care of making your VF-G1000 work with MSFS 3.3 CONFIGURING G1000 SCREENS INSIDE and X-Plane 11, so it must always be running when you use SIMULATION SOFTWARE the VF-G1000. MSFS If using X-Plane 11, make sure to use set up a blank profile After starting a flight with a G1000 airplane, click on both to the VF-G1000’s Audio Panel in the controls or joystick PFD and MFD screens in the virtual cockpit while you press...
- Page 9 2. Load a flight and, on the virtual cockpit, click on the PFD X-PLANE 11 screen. A pop-out of the PFD will appear on your monitor. 1. Before configuring the screens, you will need to remove the 3. Click on the icon on the top-right corner of the pop-out G1000 bezels in X-Plane 11.
- Page 10 4. Drag the window to the PFD display in your VF-G1000, making sure it is centered. You will see the top windows frame from the dragged PFD and MFD screens at the bottom of your main display as displayed below, but don’t worry, once you finish configuring it, it won’t be visible.
