Summary of Contents for Thermopatch NL-35

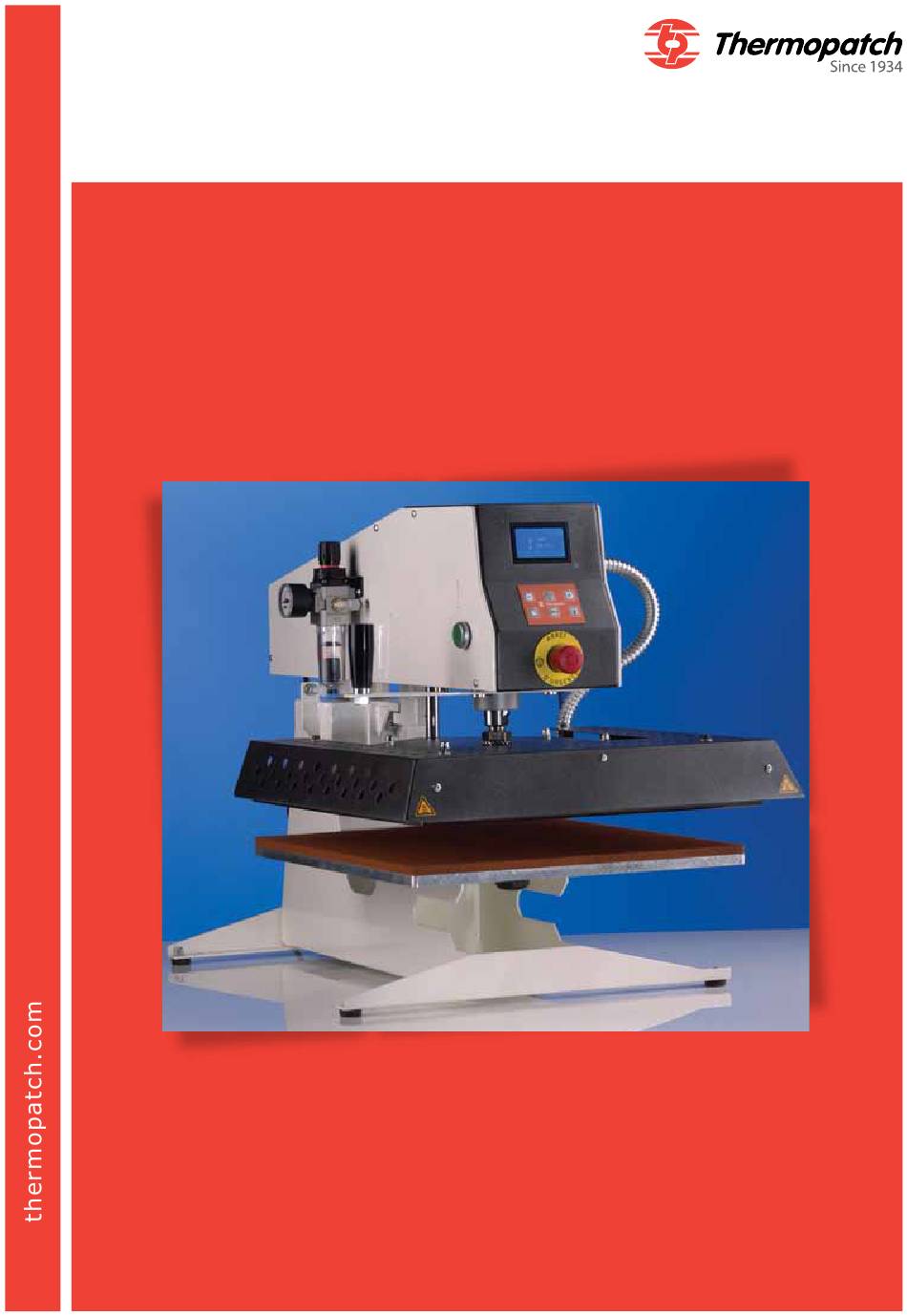

- Page 1 NL-35 User manual...
- Page 2 Copyrights © 2010, Thermopatch bv, Almere, The Netherlands. No part of this publication may be reproduced by any means without the prior written permission of Thermopatch bv, The Netherlands. Thermopatch and the Thermopatch logo, Thermoseal and Thermocrest are registered trademarks of Thermopatch.
- Page 3 Preface Dear user, Welcome to the growing group of Thermopatch users. The product you have purchased has been carefully designed and manufactured to ensure that you, the user, will gain the maximum benefit. All Thermopatch products are specifically designed to ensure ease of use with particular attention to safety requirements.
-
Page 4: Table Of Contents
Table of Contents CONDITIONS OF GUARANTEE SPECIFICATIONS III. GENERAL POINTS USE OF THE MACHINE 1. SAFETY 2. INSTALLATION 3. INSTRUCTIONS FOR THE RUNNING CYCLE PRESS SETTING 1. TEMPERATURE SETTINGS / PRESSING TIME a) TEMPERATURE SETTING b) TIME SETTING 2. PRESSURE ADJUSTMENT 3. - Page 5 EC - Statement Of Conformity Thermopatch bv Draaibrugweg 14-16 1332 AD ALMERE - NETHERLANDS...
-
Page 6: Conditions Of Guarantee
I. Conditions of Guarantee • The guarantee period starts the day of putting the equipment into service at the user’s place, for a duration of one year and for a common use of 8 hours per day. • The guarantee is strictly limited to our equipments, against the defects of matter and execution, with the buyer’s responsibility to prove the known defects. -
Page 7: Specifications
II. Specifications Weight in running order 63 kg Height 557 mm Depth 750 mm Width 498 mm Dimension of the heating plate 400 x 450 mm 220 V single-phase + Electric power supply earth 50/60 Hz Pneumatic power supply 10 bars maximum Power 2250 W Ampere... -
Page 8: General Points

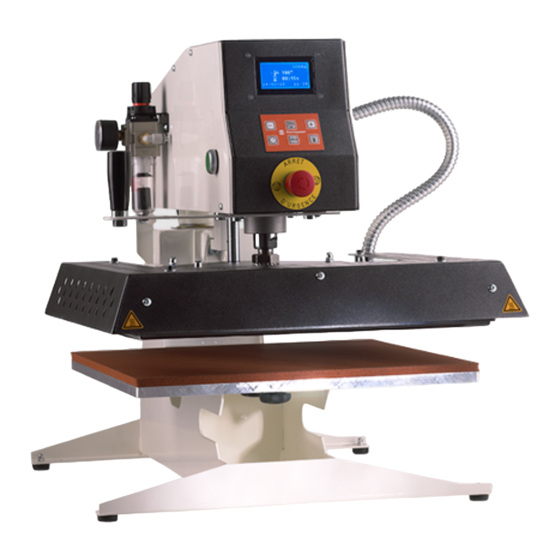

III. General Points LCD display (Time + T°) Cover + electronic board Keypad General switch Emergency stop & fuse HEAT PLATE Filter+pressing jack regulator Handle for plate rotation Silicon rubber Pressing buttons for lowering the plate Changeable bottom plate This heat seal press is standard to article L 233-5 of the labour laws to ensure the security of the user. -
Page 9: Use Of The Machine
IV. Use of the machine NL-35 The NL-35 press was designed for the application of transfers of all qualities in small and medium mass production. This equipment was tested in our workshops to obtain a one- year guarantee against any manufacturing vice. - Page 10 They must be re-installed in case of possible removal for the maintenance. They must not be moved, and have to be maintained in good condition during normal operation. The NL-35 is equiped with security systems protecting the operator from any pinching risk. The main security elements The emergency stop: Situated on the front of the machine: if the operator puches it, he switches the machine off.
-
Page 11: Installation
2. INSTALLATION USE BY QUALIFIED STAFF ONLY Do not handle the machine by the plates! Unpack the machine from the box. Place it on a stable table handling it by its frame. After having properly positioned the equipment on its working place: •... -
Page 12: Press Setting
V. Press Setting USE BY QUALIFIED STAFF ONLY 1. Temperature settings / Pressing time These parameters have to be programmed in the control electronic card with the keyboard situated on the front (the parameters will scroll on the display unit next to it). TEMPERATURE SETTING •... - Page 13 RESETABLE COUNTER : press - > reset counter > press OK (or Fonct to cancel) PERMANENT COUNTER : : not modifiable PRE-HEATTING : press OK, then + to modify ON/OFF Nota : pre-heating time will be able only if pre-heating parameter is ON.
-
Page 14: Introduction Of The Equipment
VI. Introduction of the equipment Pressing jack Jack piston crossing sensor Electro-distributor Push buttons Terminal block Filter + Pressure regulator Jack stopper Pneumatic connection Manometer General switch & fuse NOTE : electronic board is under cover removed on picture... -
Page 15: Electric And Pneumatic Diagram
VII. Electric and Pneumatic Diagram... -
Page 17: Service
VIII. Service USE BY QUALIFIED STAFF ONLY ANY SERVICING INTERVENTION MUST BE DONE WHEN THE MACHINE IS OFF AND LOCKED (ELECTRIC AND PNEUMATIC ENERGIES UNPLUGGED) It is recommended to have the following tools within reach: • Cruciform and bit screwdrivers •... -
Page 18: Replacement Of Worn Parts
Get in touch with your retailer to evaluate their change or their repair. 3. MAINTENANCE The heat press NL-35 require hardly any maintenance. To ensure a good functioning, follow the preventive notice indicated below: - Do not heat up objects which could deteriorate or even cut the silicone rubber or damage the teflon surface of the heating plate. - Page 19 ERROR CODE LISTING: SSH/B : HEAT SENSOR DEFECT High/Bottom RRH/S : RESISTOR out of service High/Bottom : Overshoot 30°C of order : Fall out of 30°C of order : Sensor still activate at end cycle TRIAC : TRIAC defect TIME OUT : Time out to get temperature order, heating defect...
-
Page 20: Possible Breakdowns
4. POSSIBLE BREAKDOWNS ANY SERVICING INTERVENTION MUST BE DONE WHEN THE MACHINE IS OFF AND LOCKED (ELECTRIC AND PNEUMATIC ENERGIES UNPLUGGED) Symptoms Possible breakdowns Repairs • The plug is not in. • Check your network and if the machine is linked to it. •... -
Page 21: Maintenance Log
5. MAINTENANCE LOG The control and maintenance operations indicated in this table must be done regularly so as to check the functioning state and the reliability of the press. Number Pressure Air filter Jacks Rubber Resistors Changed Date Observations of hours control control control... - Page 22 F +1 315 445-8046 sales@thermopatch.com Thermopatch European Headquarters The Netherlands T +31 36 549 11 11 F +31 36 532 03 98 sales@thermopatch.nl Thermopatch Australia Pty Ltd Australia T +61 395325722 F +386 2 80 55 232 marktpatchaust@bigpond.com.au Thermopatch Canada Inc Canada...
