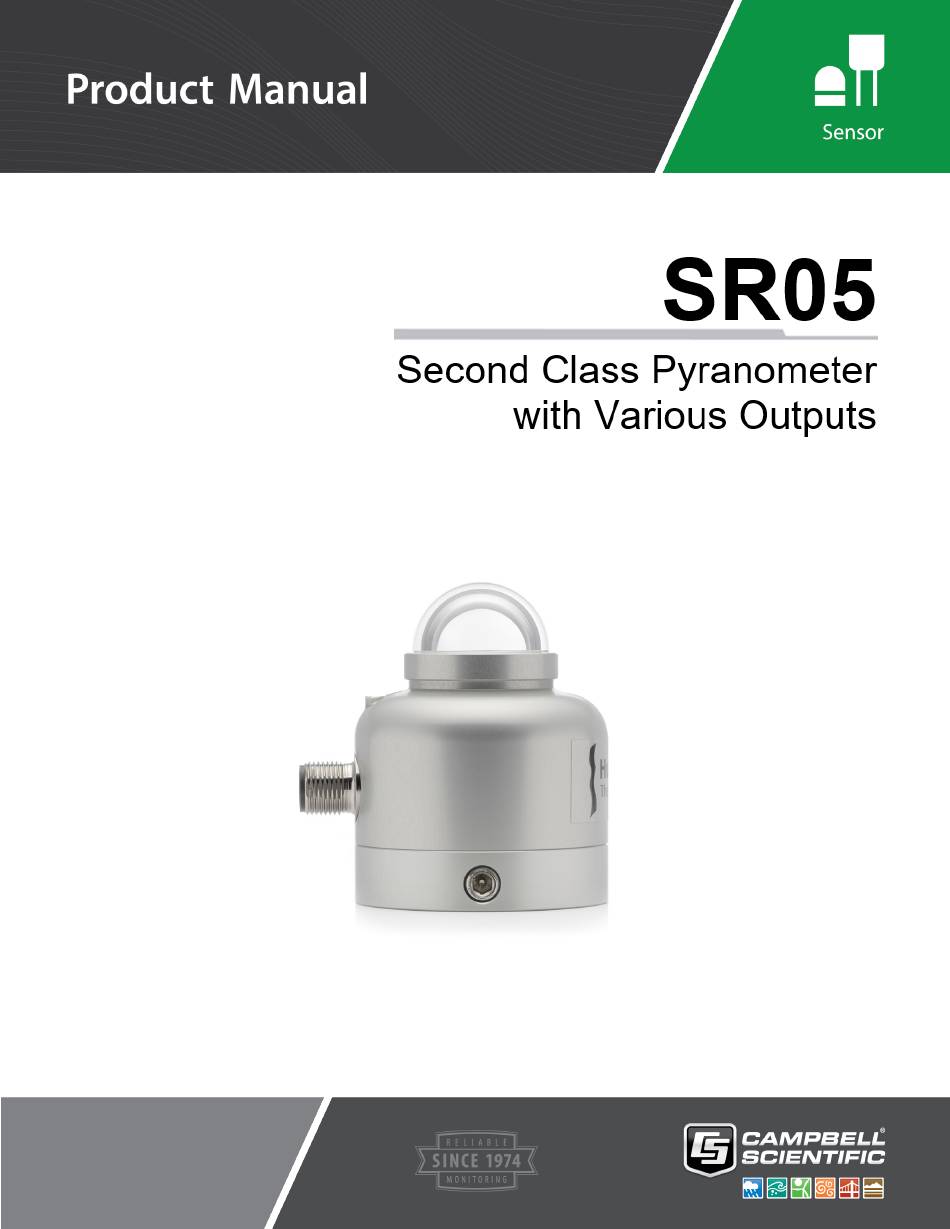

- Page 1 Revision: 08/2019 Copyright © 2019 Campbell Scientific...
- Page 3 Quotations for repairs can be given on request. It is the policy of Campbell Scientific to protect the health of its employees and provide a safe working environment, in support of this policy a “Declaration of Hazardous Material and Decontamination”...
- Page 5 PLEASE READ FIRST About this manual Please note that this manual was originally produced by Campbell Scientific Inc. primarily for the North American market. Some spellings, weights and measures may reflect this origin. Some useful conversion factors: Area: 1 in...
- Page 7 • Periodically (at least yearly) check electrical ground connections. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR ATTACHMENTS TO TRIPODS AND TOWERS...
-
Page 9: Table Of Contents
Table of contents 1.Introduction 2.Specifications 3.Siting 4.Mounting procedure 5.Wiring 6.Register map 7.RS-485 programming 8.Analogue programming 9.Example programs 10. Maintenance and troubleshooting Table of Contents - iv... -
Page 11: Introduction

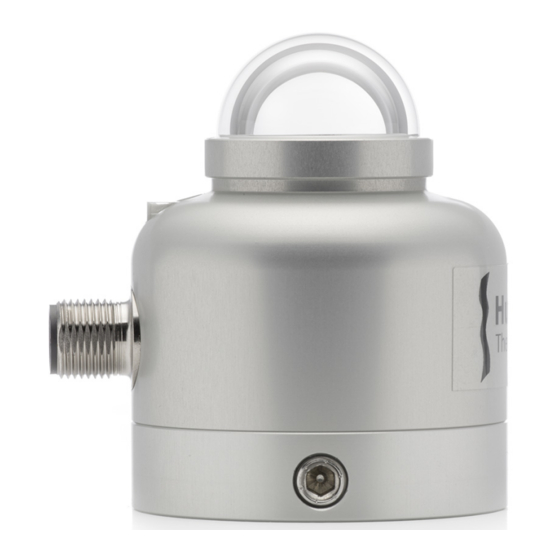

1. Introduction The SR05, manufactured by Hukseflux Thermal Sensors, is an ISO 9060 second class pyranometer designed for general solar radiation measurements in agricultural and meteorological networks and PV monitoring. Both analogue output and Modbus over RS-485 are supported. 2. Specifications... -
Page 12: Siting
Alternatively, remove the sensor levelling feet to allow it to be mounted directly to the mounting bracket. 2. Secure the solar radiation sensor to the mounting bracket. The blue dots in the following figure indicate the mounting holes used for this pyranometer. SR05 Second Class Pyranometer with Various Outputs... - Page 13 For pyranometers mounted horizontally, ensure the mounting bracket is horizontal in two dimensions. For pyranometers mounted at an angle, set the mounting bracket angle to the desired angle prior to tightening the mounting hardware. SR05 Second Class Pyranometer with Various Outputs...
-
Page 14: Wiring
Green RS485 A+ C (odd) White RS485 B- C (even) Power in (12 V) Black Power ground Clear Shield ⏚ (analogue ground)⏚ (analogue ground) Assumes the sensor directly connects to the data logger. SR05 Second Class Pyranometer with Various Outputs... -
Page 15: Register Map
Signed 16 bit integer x 0.1 Ω resistance Signed 16 bit integer Scaling factor irradiance Scaling factor Signed 16 bit integer temperature Signed 32 bit integer Sensor voltage output Signed 16 bit integer Serial number SR05 Second Class Pyranometer with Various Outputs... -
Page 16: Rs-485 Programming
7. RS-485 programming The RS-485 output can be directly read by a MeteoPV, CR6-series, CR1000X-series, or Modbus RTU RS-485 network. Other Campbell Scientific data loggers can use an MD485 multidrop interface to read the RS-485 output (refer to the MD485 manual). -
Page 17: Example Programs
= data logger program execution interval in seconds 9. Example programs Table 9-1 (p. 8) provides wiring for the example programs. CRBasic Example 1 (p. 8) uses Modbus over RS-485 and CRBasic Example 2 (p. 11) uses analogue voltage measurements. SR05 Second Class Pyranometer with Various Outputs... - Page 18 Clear Shield ⏚ (analogue ground) ⏚ (analogue ground) CRBasic Example 1: CR1000X program using Modbus over RS-485 to measure the SR05 'CR1000X Series Datalogger 'Hukseflux SR2005 Pyranometer 'SR05 is an ISO 9060 Second Class pyranometer Public CheckSensorID As Boolean...
- Page 19 CRBasic Example 1: CR1000X program using Modbus over RS-485 to measure the SR05 Public MBResult_ElecRes Public MBResult_VoltOut Units SR05_IRR = W/m^2 Units SR05_IRR_TC = W/m^2 Units SR05_BodyTemp = DegC Units SR05_Humidity = % Units SR05_ElecResistance = Ohm Units SR05_VoltageOut = uV...
- Page 20 CRBasic Example 1: CR1000X program using Modbus over RS-485 to measure the SR05 'Scaling Factor IRR ModbusMaster (MBResult_SFIRR,ComC5,19200,62,4,SR05(3),9,1,1,100,3) SR05_ScaleFactor_IRR = SR05(3) 'Scaling Factor Temp ModbusMaster (MBResult_SRTemp,ComC5,19200,62,4,SR05(4),10,1,1,100,3) SR05_ScaleFactor_BodyTemp = SR05(4) 'Electrical Resistance ModbusMaster (MBResult_ElecRes,ComC5,19200,62,4,SR05(10),7,1,1,100,1) SR05_ElecResistance = SR05(10)/10 'Voltage output ModbusMaster (MBResult_VoltOut,ComC5,19200,62,4,SR05(11),3,2,1,100,2)
- Page 21 CRBasic Example 1: CR1000X program using Modbus over RS-485 to measure the SR05 ModbusMaster (MBResult_VoltOut,ComC5,19200,62,4,SR05(11),3,2,1,100,2) SR05_VoltageOut = SR05(11) 'Humidity ModbusMaster (MBResult_Humidity,ComC5,19200,62,4,SR05(13),99,1,1,100,3) SR05_Humidity = SR05(13)/100 CallTable SR05_MetaData NextScan EndProg CRBasic Example 2: CR1000X program using analogue voltage to measure the SR05...
-
Page 22: Maintenance And Troubleshooting
10. Maintenance and troubleshooting The SR05 has no service items requiring scheduled replacement. There is no accessible desiccant cartridge to maintain. Use pure alcohol or distilled water and a lint-free cloth to clean the dome, removing smears and deposits. Local conditions and application dictate cleaning interval. - Page 24 INFO Global Sales & Support Network A worldwide network to help meet your needs Australia Costa Rica Southeast Asia Garbutt, QLD Australia San Pedro, Costa Rica Bangkok, Thailand Location: Location: Location: 61.7.4401.7700 506.2280.1564 66.2.719.3399 Phone: Phone: Phone: info@campbellsci.com.au info@campbellsci.cc thitipongc@campbellsci.asia Email: Email: Email:...
