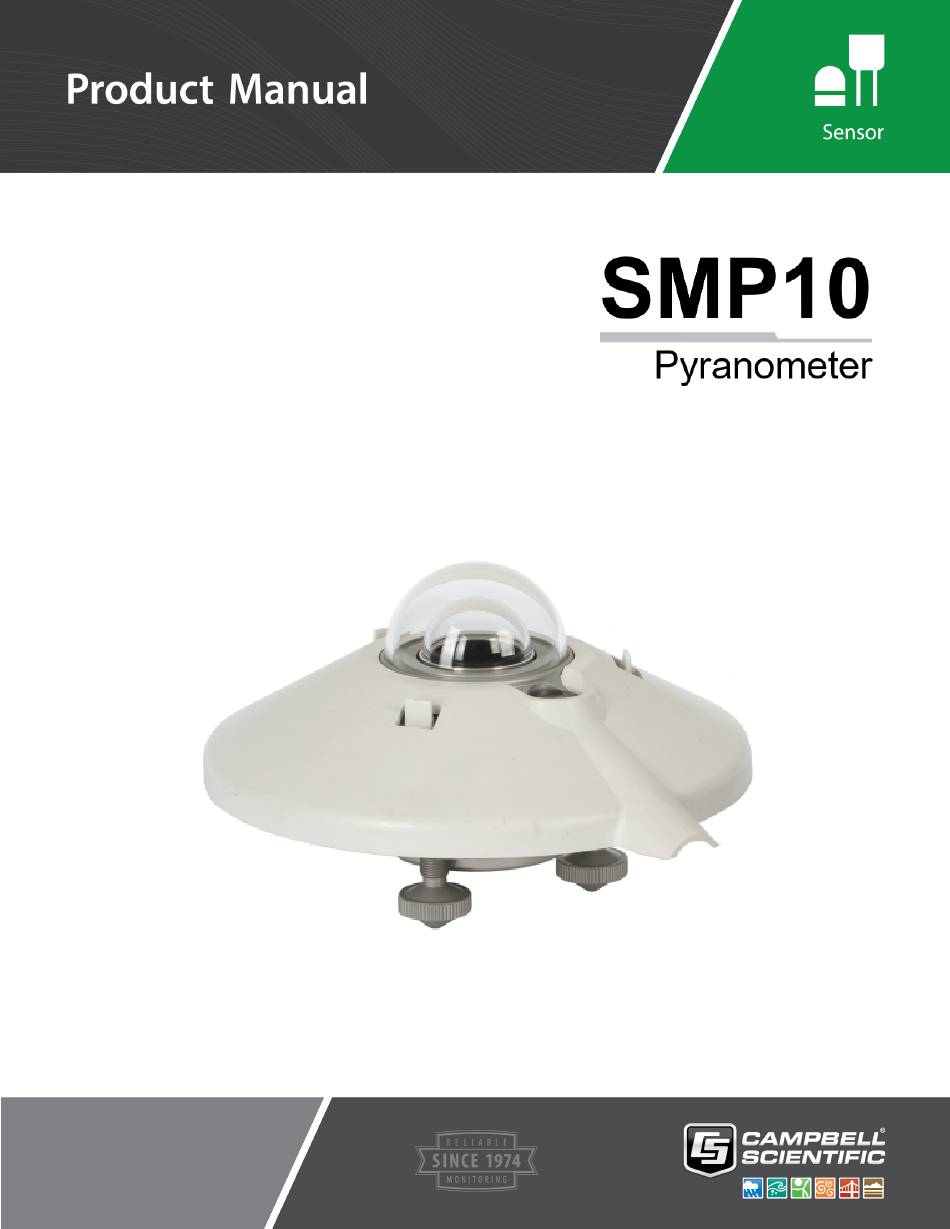

- Page 1 Revision: 01/2021 Copyright © 2019 – 2021 Campbell Scientific, Inc.
-
Page 2: Table Of Contents
Table of contents 1. Introduction 2. Specifications 3. Siting 4. Mounting procedure 5. Wiring 6. Modbus register map 7. Modbus programming 8. Analog programming 9. Maintenance and troubleshooting Table of Contents - i... -
Page 3: Introduction

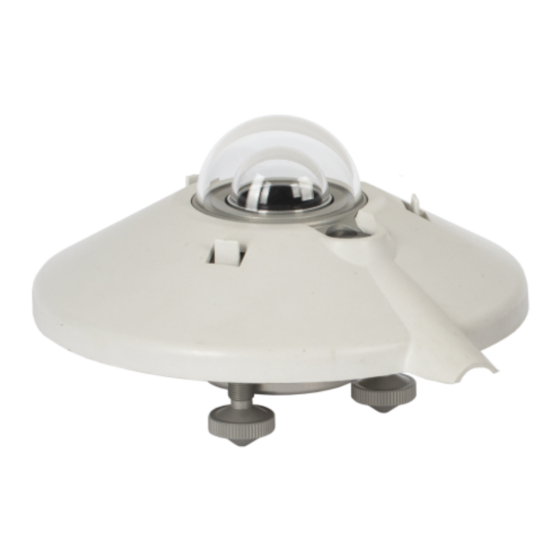

1. Introduction The SMP10 pyranometer, manufactured by Kipp & Zonen and cabled by Campbell Scientific, measures solar radiation with a high-quality blackened thermopile protected by two glass domes. Its flat spectral sensitivity makes it ideal for applications in natural sunlight, under plant canopies, and in greenhouses or buildings. -
Page 4: Siting
4. Use the two set screws to secure the bracket to the crossarm or pole as shown in the following figure. For pyranometers mounted horizontally, ensure the mounting bracket is horizontal in two dimensions. For pyranometers mounted at an angle, set the mounting bracket angle to the desired angle prior to tightening the mounting hardware. SMP10 Pyranometer... -
Page 5: Wiring
Pin-out Function MeteoPV connection connection Grey RS485A+ C (odd) Yellow RS485B- C (even) White Power in (12 V) Black Power ground Blue Ground ⏚ (analog ground) ⏚ (analog ground) Assumes the sensor directly connects to the data logger. SMP10 Pyranometer... -
Page 6: Modbus Register Map
Device Status flags Range and scale factor sensor signed integer Range data (determines number of decimal places) Temperature compensated net signed integer Sensor1 radiation signed integer RawData1 Net radiation Standard deviation of signed integer StDev1 temperature compensated radiation SMP10 Pyranometer... -
Page 7: Modbus Programming
7. Modbus programming The RS-485 output can be directly read by a MeteoPV, CR6-series, CR1000X, or Modbus RTU RS- 485 network. Other Campbell Scientific data loggers can use an MD485 multidrop interface to read the RS-485 output (refer to the MD485 manual). -
Page 8: Analog Programming
60 or 50 Hz rejection integration option as shown in the analog voltage program available at: www.campbellsci.com/downloads/smp10-example-programs. VoltDiff() If measurement time is not critical, the autorange option can be used in the VoltSE() instruction;... -
Page 9: Maintenance And Troubleshooting
9. Maintenance and troubleshooting The SMP10 has no service items requiring scheduled replacement. There is no accessible desiccant cartridge to maintain. Use pure alcohol or distilled water and a lint-free cloth to clean the dome, removing smears and deposits. Local conditions and application dictate cleaning interval. - Page 10 See Product Details on the Ordering Information pages at www.campbellsci.com. Other manufacturer's products, that are resold by Campbell Scientific, are warranted only to the limits extended by the original manufacturer.
- Page 11 Campbell Scientific office serves your country. To obtain a Returned Materials Authorization or Repair Reference number, contact your CAMPBELL SCIENTIFIC regional office. Please write the issued number clearly on the outside of the shipping container and ship as directed.
- Page 12 Do not recharge, disassemble, heat above 100 °C (212 °F), solder directly to the cell, incinerate, or expose contents to water. Dispose of spent batteries properly. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR...
- Page 13 Campbell Scientific regional offices Australia France Thailand Location: Garbutt, QLD Australia Location: Vincennes, France Location: Bangkok, Thailand Phone: 61.7.4401.7700 Phone: 0033.0.1.56.45.15.20 Phone: 66.2.719.3399 Email: info@campbellsci.com.au Email: info@campbellsci.fr Email: info@campbellsci.asia Website: www.campbellsci.com.au Website: www.campbellsci.fr Website: www.campbellsci.asia Brazil Germany Location: São Paulo, SP Brazil...
