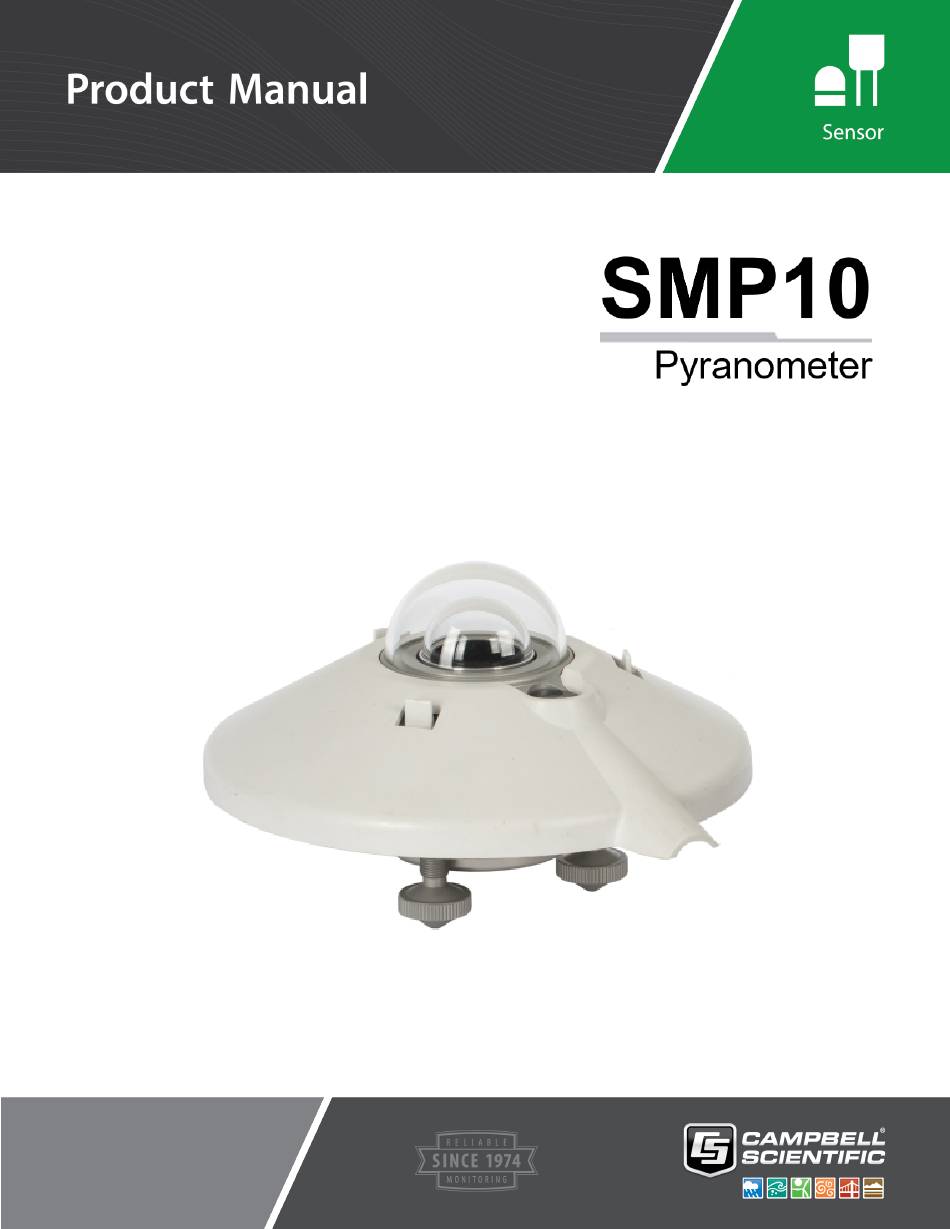

- Page 1 05/2019 Copyright © 2019 Campbell Scientific...
- Page 3 Quotations for repairs can be given on request. It is the policy of Campbell Scientific to protect the health of its employees and provide a safe working environment, in support of this policy a “Declaration of Hazardous Material and Decontamination”...
- Page 5 PLEASE READ FIRST About this manual Please note that this manual was originally produced by Campbell Scientific Inc. primarily for the North American market. Some spellings, weights and measures may reflect this origin. Some useful conversion factors: Area: 1 in...
- Page 7 • Periodically (at least yearly) check electrical ground connections. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR ATTACHMENTS TO TRIPODS AND TOWERS...
-
Page 9: Table Of Contents
Table of contents 1.Introduction 2.Specifications 3.Siting 4.Mounting procedure 5.Wiring 6.Register map 7.RS-485 programming 8.Analogue programming 9.Example programs 10. Maintenance and troubleshooting Table of Contents - iv... -
Page 11: Introduction

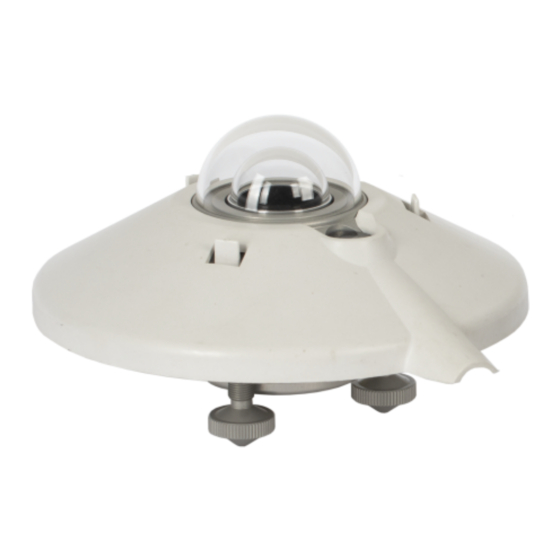

1. Introduction The SMP10 pyranometer, manufactured by Kipp & Zonen and cabled by Campbell Scientific, measures solar radiation with a high-quality blackened thermopile protected by two glass domes. Its flat spectral sensitivity makes it ideal for applications in natural sunlight, under plant canopies, and in greenhouses or buildings. -
Page 12: Siting
Alternatively, remove the sensor levelling feet to allow it to be mounted directly to the mounting bracket. 2. Secure the solar radiation sensor to the mounting bracket. The blue dots in the following figure indicate the mounting holes used for this pyranometer. SMP10 Pyranometer... - Page 13 For pyranometers mounted horizontally, ensure the mounting bracket is horizontal in two dimensions. For pyranometers mounted at an angle, set the mounting bracket angle to the desired angle prior to tightening the mounting hardware. SMP10 Pyranometer...
-
Page 14: Wiring
Pin-out Function MeteoPV connection connection Grey RS485A+ C (odd) Yellow RS485B- C (even) White Power in (12 V) Black Power ground ⏚ (analogue ground) Blue Ground ⏚ (analogue ground) Assumes the sensor directly connects to the data logger. SMP10 Pyranometer... -
Page 15: Register Map
Device Status flags Range and scale factor sensor signed integer Range data (determines number of decimal places) Temperature compensated net signed integer Sensor1 radiation signed integer RawData1 Net radiation Standard deviation of signed integer StDev1 temperature compensated radiation SMP10 Pyranometer... -
Page 16: Rs-485 Programming
7. RS-485 programming The RS-485 output can be directly read by a MeteoPV, CR6-series, CR1000X-series, or Modbus RTU RS-485 network. Other Campbell Scientific data loggers can use an MD485 multidrop interface to read the RS-485 output (refer to the MD485 manual). -
Page 17: Example Programs
M = 1000/c, where c is the sensor output in μV / W•m t = data logger program execution interval in seconds 9. Example programs Table 9-1 (p. 8) provides wiring for the example programs. CRBasic Example 1 (p. 8) uses Modbus over RS-485 and CRBasic Example 2 (p. 9). SMP10 Pyranometer... - Page 18 Ground ⏚ (analogue ground) ⏚ (analogue ground) CRBasic Example 1: CR1000X program using Modbus over RS-485 to measure the SMP10 'CR1000X Series Datalogger 'SMP10 Pyranometer 19200 BAUD, 8 data bits, 1 stop bit, no parity 'Modbus Address Set to 51...
- Page 19 CRBasic Example 1: CR1000X program using Modbus over RS-485 to measure the SMP10 Average (1,SMP10_NetRadTempCor,IEEE4,False) StdDev (1,SMP10_NetRadTempCor,IEEE4,False) Average (1,SMP10_BodyTemp,IEEE4,False) StdDev (1,SMP10_BodyTemp,IEEE4,False) Maximum (1,SMP10_ResultCode,FP2,False,False) EndTable BeginProg SerialOpen (ComC7,19200,18,0,300,4) Scan (5,Sec,0,0) PanelTemp (PTemp,60) Battery (Batt_volt) 'Modbus RS485 ModbusMaster (SMP10_ResultCode,ComC7,19200,51,3,Input_Reg(),1,10,1,100,3) SMP10_ResultCode = 0...
-
Page 20: Maintenance And Troubleshooting
10. Maintenance and troubleshooting The SMP10 has no service items requiring scheduled replacement. There is no accessible desiccant cartridge to maintain. Use pure alcohol or distilled water and a lint-free cloth to clean the dome, removing smears and deposits. Local conditions and application dictate cleaning interval. - Page 22 Global Sales & Support Network A worldwide network of companies to help meet your needs CANADA GERMANY FRANCE CHINA SPAIN SOUTHEAST ASIA COSTA RICA Campbell Scientific group companies Sales representatives AUSTRALIA BRAZIL SOUTH AFRICA Australia Costa Rica Southeast Asia Garbutt, QLD Australia...
