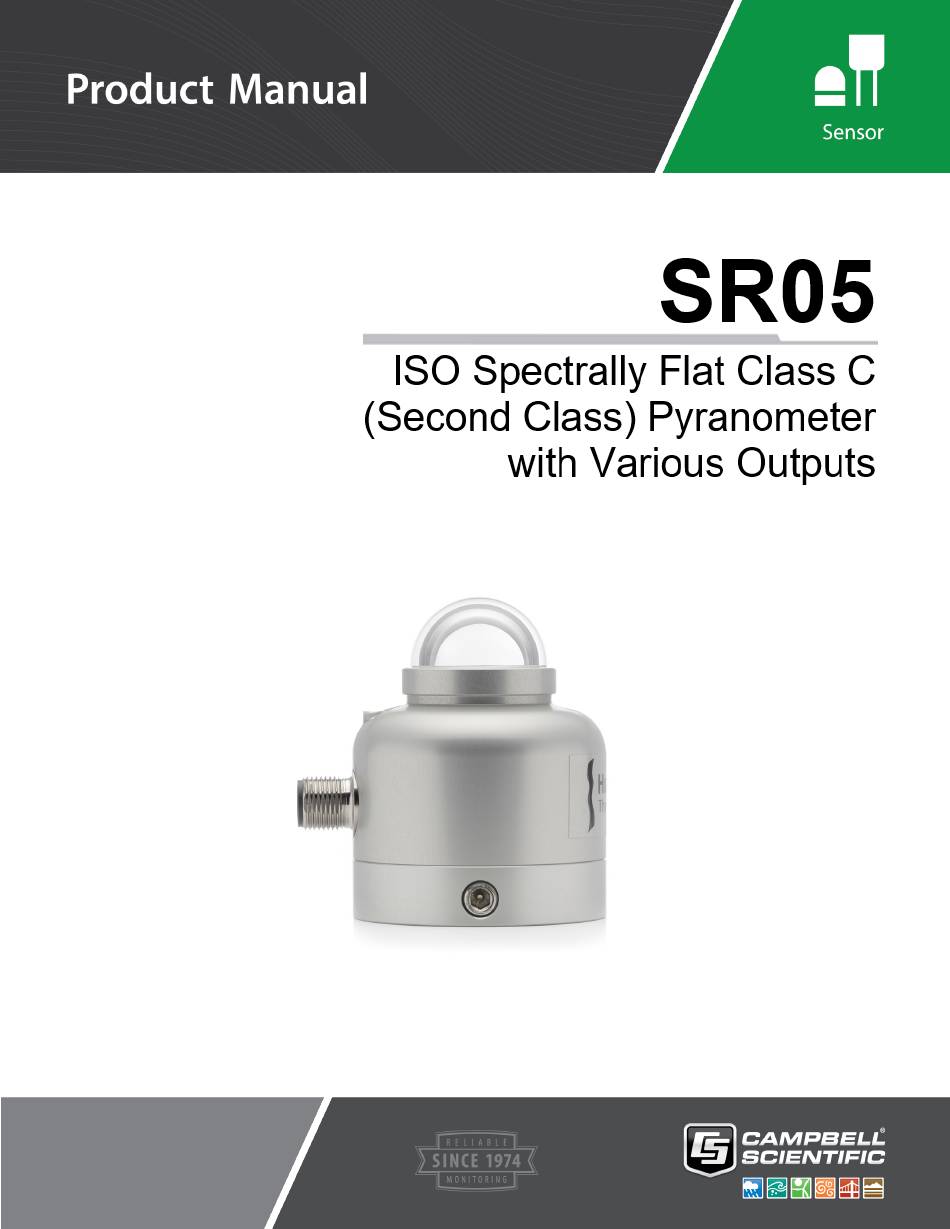

- Page 1 Revision: 04/2020 Copyright © 2019 – 2020 Campbell Scientific, Inc.
-
Page 2: Table Of Contents
Table of contents 1. Introduction 2. Specifications 3. Siting 4. Mounting procedure 5. Wiring 6. Register map 7. RS-485 programming 8. Analog programming 9. Example programs 10. Maintenance and troubleshooting Table of Contents - i... -
Page 3: Introduction

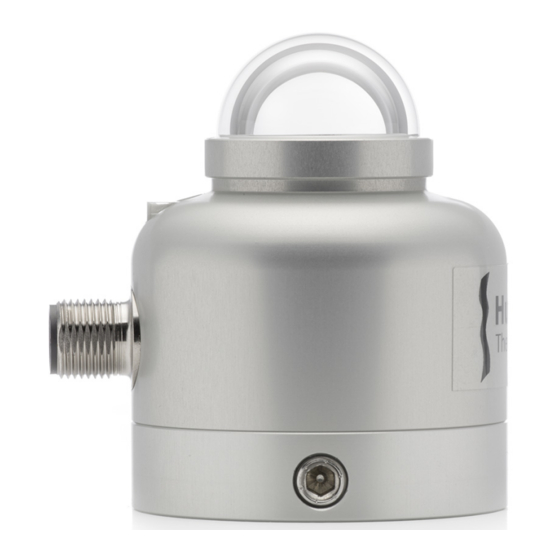

1. Introduction The SR05, manufactured by Hukseflux Thermal Sensors, is an ISO 9060:2018 spectrally flat Class C (second class) pyranometer designed for general solar radiation measurements in agricultural and meteorological networks and PV monitoring. Both analog output and Modbus over RS-485 are supported. -
Page 4: Siting
Alternatively, remove the sensor leveling feet to allow it to be mounted directly to the mounting bracket. 2. Secure the solar radiation sensor to the mounting bracket. The blue dots in the following figure indicate the mounting holes used for this pyranometer. SR05 ISO Spectrally Flat Class C (Second Class) Pyranometer with Various Outputs... - Page 5 5. For pyranometers mounted horizontally, ensure the mounting bracket is horizontal in two dimensions. For pyranometers mounted at an angle, set the mounting bracket angle to the desired angle prior to tightening the mounting hardware. SR05 ISO Spectrally Flat Class C (Second Class) Pyranometer with Various Outputs...
-
Page 6: Wiring
Power in (12 V) Black Power ground Clear Shield ⏚ (analog ground) ⏚ (analog ground) Blue wire is not used. Assumes the sensor directly connects to the data logger. SR05 ISO Spectrally Flat Class C (Second Class) Pyranometer with Various Outputs... -
Page 7: Register Map
0.01 °C Sensor body temperature Sensor electrical Signed 16 bit integer x 0.1 Ω resistance Signed 16 bit integer Scaling factor irradiance Scaling factor Signed 16 bit integer temperature SR05 ISO Spectrally Flat Class C (Second Class) Pyranometer with Various Outputs... -
Page 8: Rs-485 Programming
7. RS-485 programming The RS-485 output can be directly read by a MeteoPV, CR6-series, CR1000X-series, or Modbus RTU RS-485 network. Other Campbell Scientific data loggers can use an MD485 multidrop interface to read the RS-485 output (refer to the MD485 manual). -
Page 9: Analog Programming
M × t / 3600 Totalize –2 M = 1000/c, where c is the sensor output in μV / W × m t = data logger program execution interval in seconds SR05 ISO Spectrally Flat Class C (Second Class) Pyranometer with Various Outputs... -
Page 10: Example Programs
Clear Shield ⏚ (analog ground) ⏚ (analog ground) CRBasic Example 1: CR1000X program using Modbus over RS-485 to measure the SR05 'CR1000X Series Datalogger 'Hukseflux SR2005 Pyranometer 'SR05 is an ISO 9060 Second Class pyranometer Public CheckSensorID As Boolean... - Page 11 CRBasic Example 1: CR1000X program using Modbus over RS-485 to measure the SR05 Public MBResult_IRR_TC Public MBResult_IRR Public MBResult_BodyTemp Public MBResult_SN Public MBResult_CalDate Public MBResult_Humidity Public MBResult_SFIRR Public MBResult_SRTemp Public MBResult_ElecRes Public MBResult_VoltOut Units SR05_IRR = W/m^2 Units SR05_IRR_TC = W/m^2...
- Page 12 CRBasic Example 1: CR1000X program using Modbus over RS-485 to measure the SR05 Then CheckSensorID = True 'Serial Number ModbusMaster (MBResult_SN,ComC5,19200,62,4,SR05(1),41,1,1,100,3) SR05_SerialNumber = SR05(1) 'Cal Date ModbusMaster (MBResult_CalDate,ComC5,19200,62,4,SR05(2),47,1,1,100,2) SR05_CalDate = SR05(2) 'Scaling Factor IRR ModbusMaster (MBResult_SFIRR,ComC5,19200,62,4,SR05(3),9,1,1,100,3) SR05_ScaleFactor_IRR = SR05(3) 'Scaling Factor Temp...
- Page 13 CRBasic Example 1: CR1000X program using Modbus over RS-485 to measure the SR05 NextScan SlowSequence Scan (6,Hr,0,0) 'Electrical Resistance ModbusMaster (MBResult_ElecRes,ComC5,19200,62,4,SR05(10),7,1,1,100,1) SR05_ElecResistance = SR05(10)/10 'Voltage output ModbusMaster (MBResult_VoltOut,ComC5,19200,62,4,SR05(11),3,2,1,100,2) SR05_VoltageOut = SR05(11) 'Humidity ModbusMaster (MBResult_Humidity,ComC5,19200,62,4,SR05(13),99,1,1,100,3) SR05_Humidity = SR05(13)/100 CallTable SR05_MetaData NextScan...
-
Page 14: Maintenance And Troubleshooting
10. Maintenance and troubleshooting The SR05 has no service items requiring scheduled replacement. There is no accessible desiccant cartridge to maintain. Use pure alcohol or distilled water and a lint-free cloth to clean the dome, removing smears and deposits. Local conditions and application dictate cleaning interval. - Page 15 See Product Details on the Ordering Information pages at www.campbellsci.com. Other manufacturer's products, that are resold by Campbell Scientific, are warranted only to the limits extended by the original manufacturer.
- Page 16 Campbell Scientific reserves the right to refuse service on products that were exposed to contaminants that may cause health or safety concerns for our employees.
- Page 17 Do not recharge, disassemble, heat above 100 °C (212 °F), solder directly to the cell, incinerate, or expose contents to water. Dispose of spent batteries properly. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR...
- Page 18 Campbell Scientific regional offices Australia France Thailand Location: Garbutt, QLD Australia Location: Vincennes, France Location: Bangkok, Thailand Phone: 61.7.4401.7700 Phone: 0033.0.1.56.45.15.20 Phone: 66.2.719.3399 Email: info@campbellsci.com.au Email: info@campbellsci.fr Email: info@campbellsci.asia Website: www.campbellsci.com.au Website: www.campbellsci.fr Website: www.campbellsci.asia Brazil Germany Location: São Paulo, SP Brazil...
