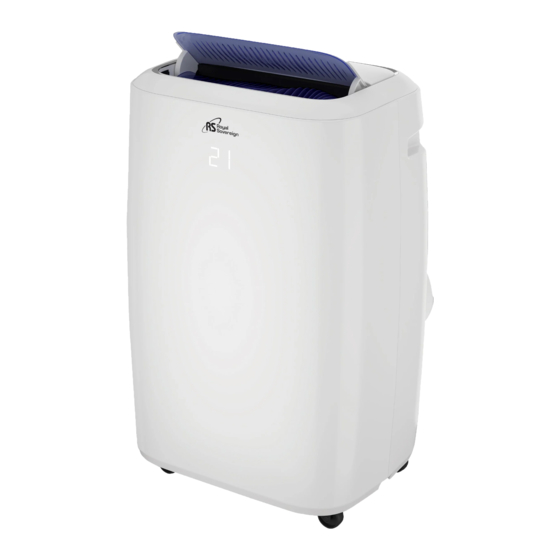

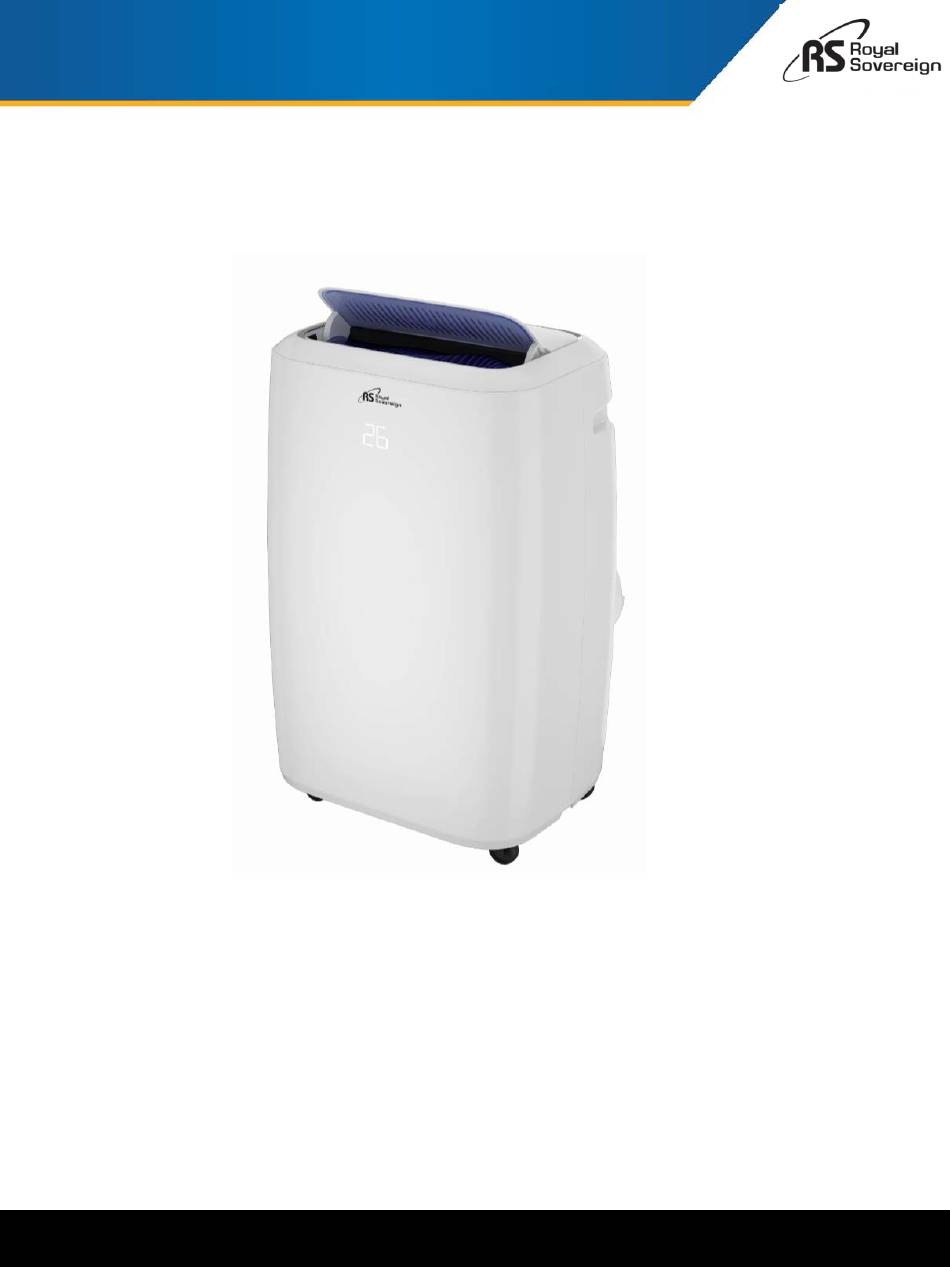

- Page 1 Owner Manual 3 in 1 Portable Air Conditioner ARP-2214P Please read and retain these instructions. For more information, please visit Royal Sovereign International Inc. www.royalsovereign.com(USA) or www.royalsovereign.ca(Canada)
-
Page 2: Table Of Contents
Contents SAFETY INSTRUCTIONS ..............X PRODUCT VIEW ................X INSTALLATION ................X OPERATION ..................X MAINTAINANCE AND SELF DRAINAGE,,,,..........X TROUBLESHOOTING.................X SPECIFICATIONS................X WARRANTY ..................X... -
Page 3: Safety Instructions
5. In case of any abnormality, be sure to turn off the machine, disconnect the plug, and contact Royal Sovereign Customer Service. 6. Do not operate if the electrical plug or power cord is damaged. If damaged, call Royal Sovereign Customer Service for repair/replacement. - Page 4 Safety Instructions When using this unit follow these safety precautions to reduce risk of fire, electric shock, or injury Operational Safety 1. Install the unit according to the installation instructions supplied 2. Do not block air outlets or intake with obstacles. 3.
-
Page 5: Product View
Product View Unit Remote Control Unit Louver Air Inlet Power Cord Control Panel Drainage Outlet Drainage Outlet Front Panel Air Outlet Cord Management Display Caster Wheels Remote Control Temperature Power (ON/OFF) Sleep Mode Down Timer (ON/OFF) Temperature Up Swing (ON/OFF) Mode (Cool /Dry Fan Speed / Fan) - Page 6 Unpacking Accessories Included: 1. Exhaust hose 2. Hose connector 3. Window connector 4. Remote control (battery included) 5. Window kit 6 Hose (used for continuous drainage option) Important: To prevent damage after moving, unpack the unit and let the unit stand upright for a minimum of 2 hours. If the unit was accidentally placed on its side, allow the unit to set upright for at least 24 hours before use Placement 1.
-
Page 7: Installation
BEFORE PLUGGING IN THE UNIT TO A POWER SOURCE: 1. Let the unit stand upright for a minimum of 2 hours. This will reduce the chance of malfunction in the cooling system. 2. Ensure the rubber drain plugs are securely plugged into the drain ports on the back of the unit to prevent any possible water leaks. - Page 8 Step 1: Connect one end of the exhaust hose to the window connector and the other end to the hose connector. Step 2: Connect the hose connector to the unit. Step 3. Connect the widow connector to the window kit. Extend the adjustable hose the length of your window.
-
Page 9: Operation
Operation Unit Panel Power ON/OFF Dehumidifying icon Fan speed Fan Icon Temperature up Digital Display Temperature down Auto Swing Icon Mode (Cool, Fan, Dehumidify) Low fan speed icon Timer ON/OFF Medium fan speed Icon High speed Icon Sleep Icon Water full Icon Cooling Icon Water full Icon Note: Switching between °C/°F Setting:... - Page 10 Cooling Mode Press the Mode button until the cool mode icon appears. Press the up or down icons to set the desired temperature. Press the Fan button to change between high, medium and low setting To control the direction of the air flow press the auto swing button Dehumidifying Mode Press the Mode button until the dehumidify icon appears In dehumidify mode, only fan runs at low speed and the temperature is not adjustable and the temperature...
- Page 11 Sleep Mode While in cooling mode, press the sleep button to set the temperature. It will increase 1°C after an hour and at most increase 2°C after 2 hours. Auto Swing Press this button to have the louver automatically swing continuously up and down. Press the button again to turn off Auto Swing function Water Drainage Water Full Alarm...
- Page 12 Built into this unit is self-evaporating drainage feature. Under normal operating conditions, the self-evaporative feature of the unit will operate without issue or maintenance being required. However, in high humidity conditions, you may need to drain manually water from the unit. (Ft error) You may also choose to do continuous drain option, which would drain water automatically from the unit (in dehumidifier mode) For continuous drainage into a floor drain...
-
Page 13: Troubleshooting
This is normal operation conditioner Replace room temperature 4. E0 Code Room temperature sensor failed sensor. Contact Royal Sovereign customer service Replace condenser temperature Condenser temperature sensor 5. E1 Code sensor Contact Royal Sovereign failed... -
Page 14: Specifications
Specifications Attributes BTU: 14,000 BTU ASHRAE /10000 BTU SACC Room Size: 500 sq. ft. (45m2) Functions: Cool, Fan, Dehumidify Touch Screen Control: Yes Front LED Temperature Display: Yes Automatic and Manual Louvres: Yes Fan Speeds: 3 24 Hour Timer: Yes Sleep Mode: Yes Auto Restart: Yes Cord Management: Yes... -
Page 15: Warranty
One Year Limited Warranty Royal Sovereign International, Inc. warranties this product to be free from defects in material and workmanship to the original purchaser only as outlined below. Parts: Replacement of defective parts for 1 year from the date of customer purchase.
