Transducer Connections - Interphase 180 Operation Manual

Wiring and Cable Connectors
9 Pin Master Cable Connectors:
(view from front of female plug)
1 White 1st element
2 Brown 2nd element
3 Orange 3rd element
4 Yellow 4th element
5 Green 5th element
6 Blue 6th element
7 Violet 7th element
8 Gray 8th element
9 Shield Ground/Return
3 Pin Video Input
1 Ground Return
2 +12 VDC
3 Video Signal
2 Pin Video Output
1 Video Out
2 Ground
4 Pin Master Control Cable
1 DC +12V
2 RXB
3 TXA
4 Ground
3
1
2
2 1
1 4
2 3
MAIN POWER - I/O WIRING FROM QUICK DISCONNECT BRACKET CABLE
WIRE DESCRIPTION
COLOR
BLACK GND/COMMON
RED POWER +11-16 VDC
WHITE RXA (+)
GREEN RX-TX - GND -
YELLOW
TXA (+)
BROWN
RXC (+)
GRAY +12 Vdc - OUTPUT
ORANGE
RXB (+)
PINK TXB (+)
BLUE TXC - OUTPUT 3+

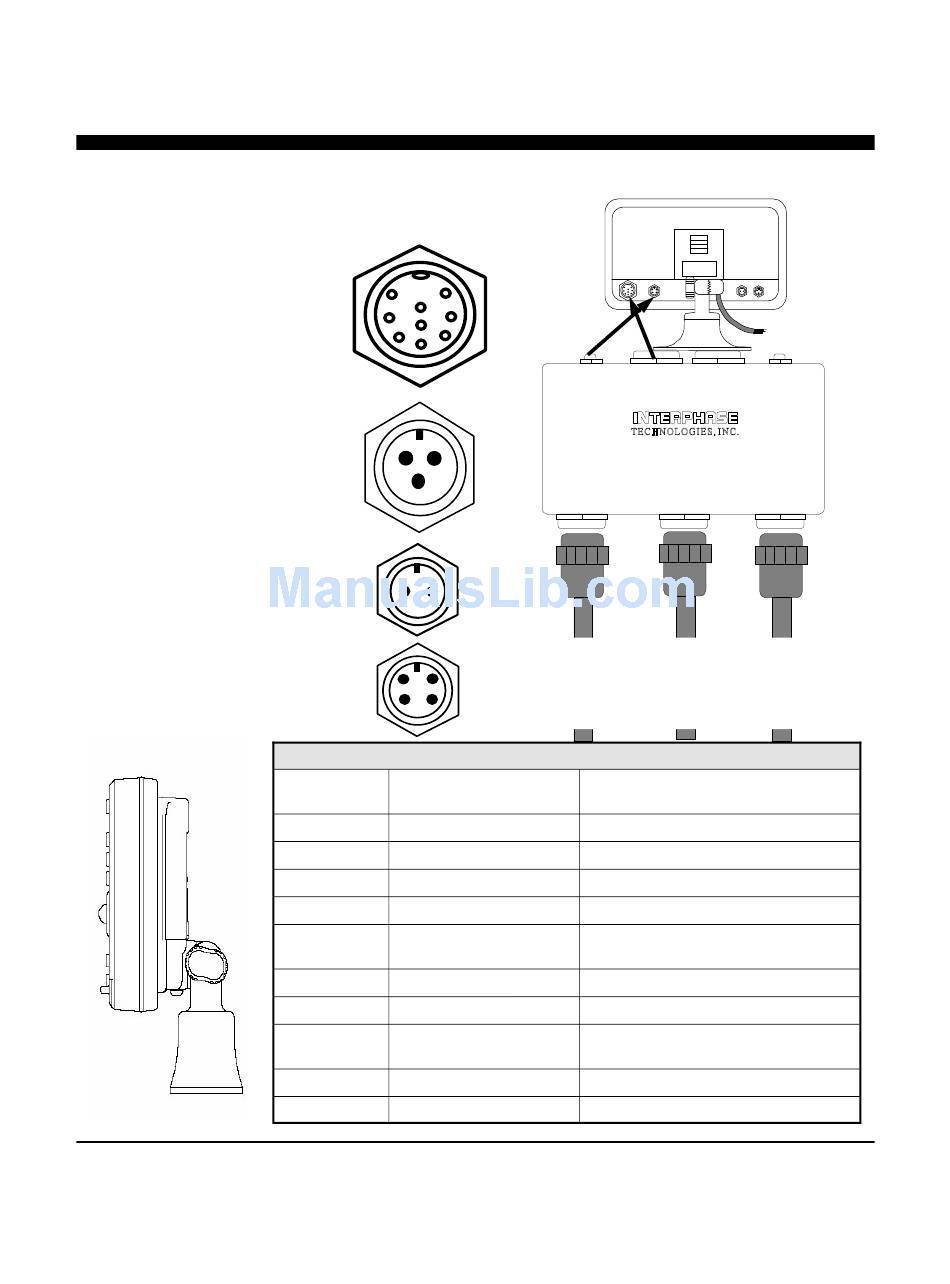

Transducer Connections

MASTER REMOTE
MASTER
DISPLAY DISPLAY
CONTROL
CABLE
iSCAN 180 AUTO SWITCH
MADE IN U.S.A.
STBD - VERT STBD - HORZ
TRANSDUCER TRANSDUCER
Transducer Connectors - Color Coded:
Green = Starboard Vertical
Blue = Starboard Horizontal
FUNCTION
POWER SUPPLY GND (-)
POWER SUPPLY (+)
GPS INPUT PORT
SERIAL PORT(s) RETURN
NMEA OUT/ MASTER-REMOTE/
SOFTWARE DOWNLOADS
NMEA TEMP INPUT PORT
12VDC - FOR ALARM
MASTER-REMOTE/SOFTWARE
DOWNLOADS
N/C
EXTERNAL ALARM SIGNAL
7
REMOTE
CONTROL
CABLE
PORT - HORZ
TRANSDUCER
Black = Port Horz.
