Intermec D5020 Connecting Manual

Part No. 069649-001
D5020 Ganging Jumper and Clip Instruction Sheet
You can use the ganging jumper and clip to connect multiple D5020
Communications Docks together. The ganging jumper and clip kit consists of
four each of these parts:
Ganging jumper
Clip
The ganging jumper links the power between multiple communications docks.
The clip connects the docks together. Use the ganging jumpers and clips to
power up to five D5020 Communications Docks with one power cord.
Caution
To prevent electric shock or damage to your dock, do not
connect more than five docks together.
Conseil
Ne connectez pas plus de cinq stations d'accueil
ensemble.
To connect multiple docks
1. Unplug the power cord.

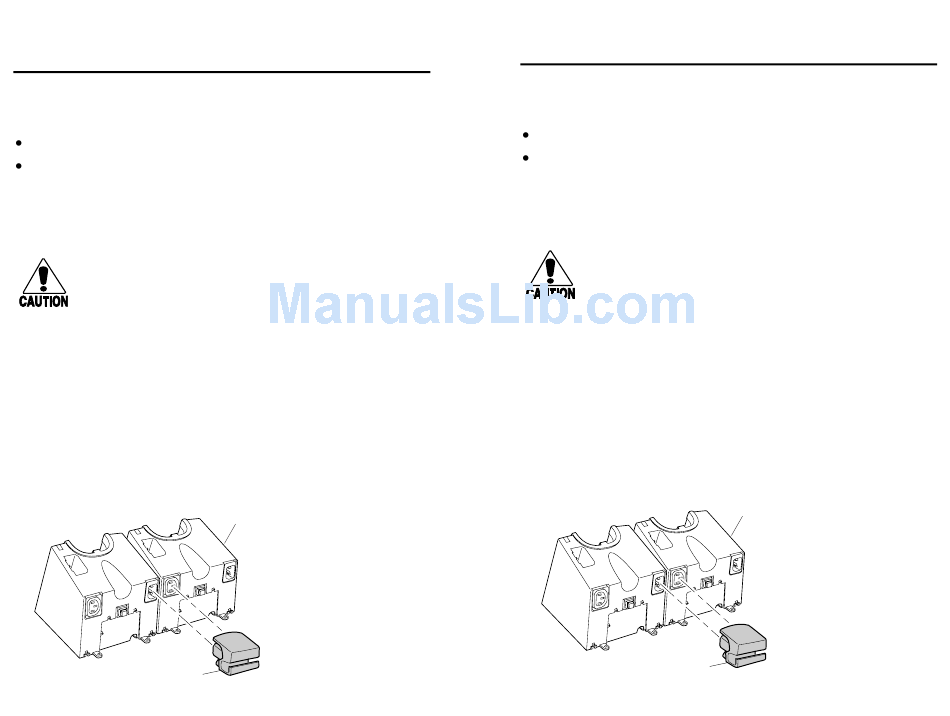

2. Connect the docks together by inserting a ganging jumper between each
two docks.
Ganging
5020GJIS001.eps
jumper
D5020
Communications
dock
Part No. 069649-001
D5020 Ganging Jumper and Clip Instruction Sheet
You can use the ganging jumper and clip to connect multiple D5020
Communications Docks together. The ganging jumper and clip kit consists of
four each of these parts:
Ganging jumper
Clip
The ganging jumper links the power between multiple communications docks.
The clip connects the docks together. Use the ganging jumpers and clips to
power up to five D5020 Communications Docks with one power cord.
Caution
To prevent electric shock or damage to your dock, do not
connect more than five docks together.
Conseil
Ne connectez pas plus de cinq stations d'accueil
ensemble.
To connect multiple docks
1. Unplug the power cord.
2. Connect the docks together by inserting a ganging jumper between each
two docks.
Ganging
5020GJIS001.eps
jumper
D5020
Communications
dock
