SRC BMW-F750GS-01-01-SL Quick Start Manual

Scope of supply/bill of material & mounting drawings

Scope of Supply/Bill of Material & Mounting Drawings

Part Number: BMW-F750GS-01-01-SL / BMW-F750GS-01-02

Part Description: Head Light Guard –BMW F750 GS / F850 GS

Installation / Parts List / Bill of Material for Mounting

Design and Specification are subjected to change

Page 1

Table of Contents

Need help?

Do you have a question about the BMW-F750GS-01-01-SL and is the answer not in the manual?

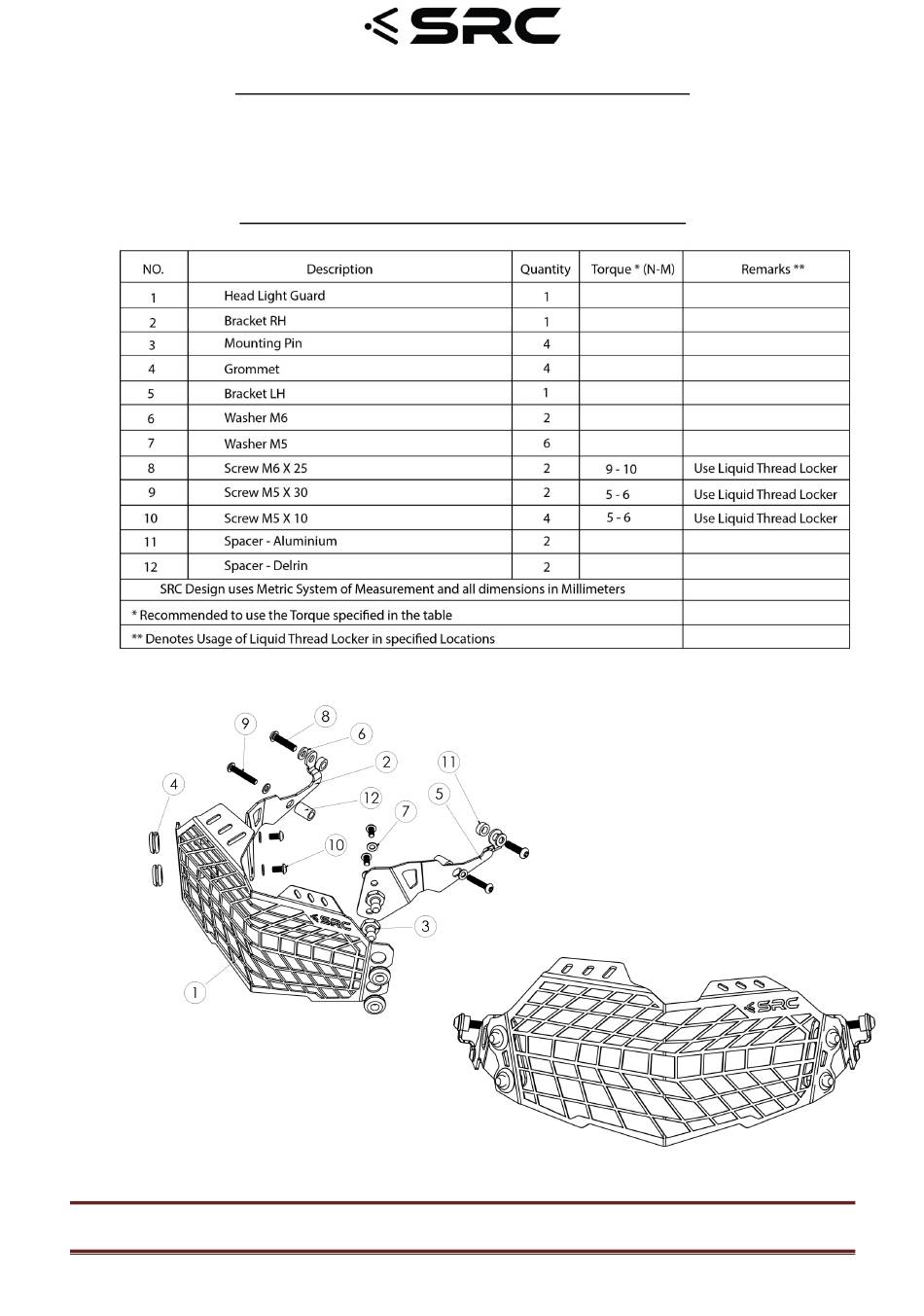

Page 1 Scope of Supply/Bill of Material & Mounting Drawings Part Number: BMW-F750GS-01-01-SL / BMW-F750GS-01-02 Part Description: Head Light Guard –BMW F750 GS / F850 GS Installation / Parts List / Bill of Material for Mounting Copyright By SRC Design and Specification are subjected to change...
Page 2 MOUNTING DRAWINGS Copyright By SRC Design and Specification are subjected to change Page 2...
Page 3 Slide-in the Washer M5 (7) and Screw M5 x 30 (9) – 1 off, into the bottom side of the mounting hole, from either sides. Copyright By SRC Design and Specification are subjected to change Page 3...
Page 4 Mounting the Head Light Guard. Orient the Head Light Guard (1), as shown. Assemble the Grommet (4) – 4 off, hugging and flush, with the outer surfaces of the Head Light Guard. Copyright By SRC Design and Specification are subjected to change Page 4...
Page 5 Grommet bore to the Shank of the Pins. The Shank of the pins, will hold by Interference fit, the Rubber grommet, as shown. The final mounted condition of the Head Light Guard is as shown above. Copyright By SRC Design and Specification are subjected to change Page 5...
Page 6 Vehicle. We have prepared this based on our experience and knowledge, related to the Vehicle, Part and its functional aspects. 3. SRC cannot guarantee the interchangeability of the parts to any other manufacturer’s accessory part. It is advised to the User, to inspect and ensure the original state of all other Vehicle parts.
