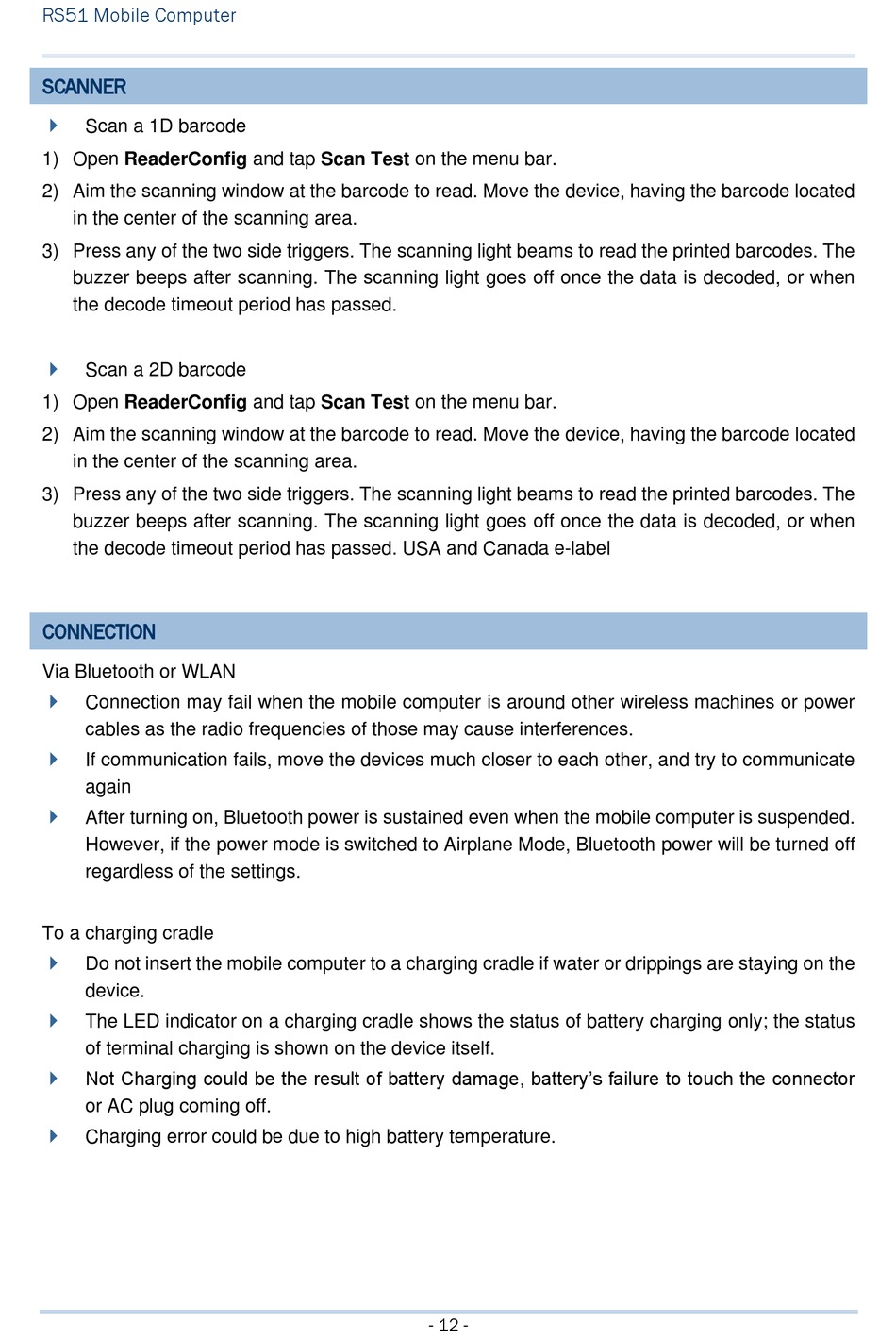

RS51 Mobile Computer

SCANNER


Scan a 1D barcode
1) Open ReaderConfig and tap Scan Test on the menu bar.
2) Aim the scanning window at the barcode to read. Move the device, having the barcode located
in the center of the scanning area.
3) Press any of the two side triggers. The scanning light beams to read the printed barcodes. The
buzzer beeps after scanning. The scanning light goes off once the data is decoded, or when
the decode timeout period has passed.

Scan a 2D barcode
1) Open ReaderConfig and tap Scan Test on the menu bar.
2) Aim the scanning window at the barcode to read. Move the device, having the barcode located
in the center of the scanning area.
3) Press any of the two side triggers. The scanning light beams to read the printed barcodes. The
buzzer beeps after scanning. The scanning light goes off once the data is decoded, or when
the decode timeout period has passed. USA and Canada e-label

CONNECTION

Via Bluetooth or WLAN

Connection may fail when the mobile computer is around other wireless machines or power
cables as the radio frequencies of those may cause interferences.

If communication fails, move the devices much closer to each other, and try to communicate
again

After turning on, Bluetooth power is sustained even when the mobile computer is suspended.
However, if the power mode is switched to Airplane Mode, Bluetooth power will be turned off
regardless of the settings.
To a charging cradle

Do not insert the mobile computer to a charging cradle if water or drippings are staying on the
device.

The LED indicator on a charging cradle shows the status of battery charging only; the status
of terminal charging is shown on the device itself.
 Not Charging could be the result of battery damage, battery's failure to touch the connector
or AC plug coming off.

Charging error could be due to high battery temperature.
- 12 -
