Getting started with the X-NUCLEO-NFC07A1 NFC/RFID tag IC expansion board
Introduction
The
X-NUCLEO-NFC07A1
dynamic NFC/RFID tag IC expansion board is based on the
tag IC with a 64-Kbit dual interface EEPROM and fast transfer mode feature. It can be powered through the
development board or directly through the received carrier electromagnetic field.
The
X-NUCLEO-NFC07A1
expansion board is compatible with the Arduino UNO R3 connector pin assignment and can easily
be plugged onto any
STM32 Nucleo
that work together with the dynamic NFC tag.
The board also features a single-layer antenna with a diameter of 54 mm and copper etched on the PCB.
The expansion board package with order code
UM2960 - Rev 2 - March 2022
For further information contact your local STMicroelectronics sales office.
based on ST25DV64KC for STM32 Nucleo
development board. You can stack other expansion boards to evaluate different devices
X-NUCLEO-NFC07A1

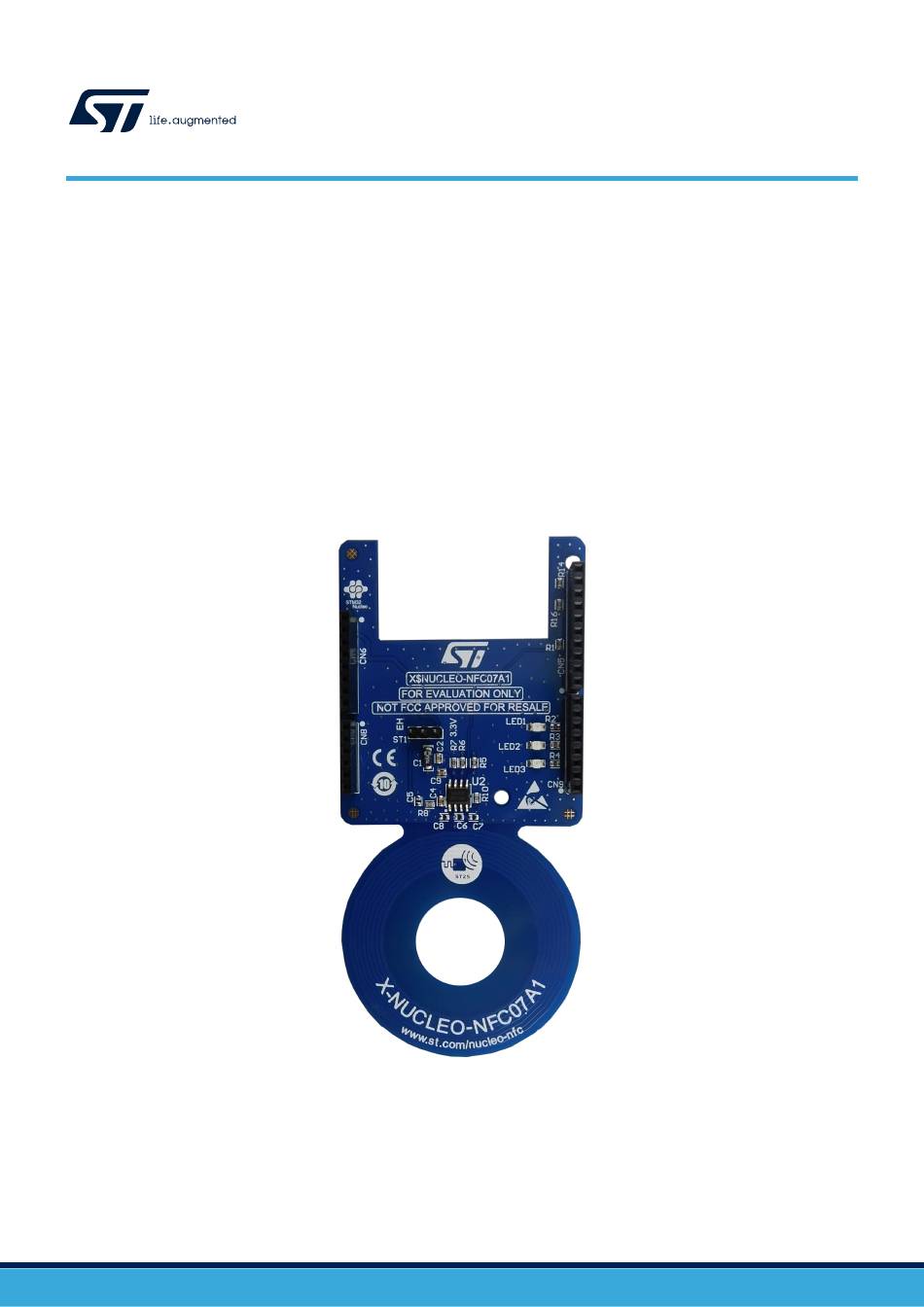

Figure 1.
X-NUCLEO-NFC07A1 expansion board
ST25DV64KC
contains the X$NUCLEO-NFC07A board.
UM2960
User manual
dynamic NFC/RFID
STM32 Nucleo
www.st.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UM2960 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ST UM2960

Summary of Contents for ST UM2960

  • Page 1: Figure 1. X-Nucleo-Nfc07A1 Expansion Board

    The board also features a single-layer antenna with a diameter of 54 mm and copper etched on the PCB. The expansion board package with order code X-NUCLEO-NFC07A1 contains the X$NUCLEO-NFC07A board. Figure 1. X-NUCLEO-NFC07A1 expansion board UM2960 - Rev 2 - March 2022 www.st.com For further information contact your local STMicroelectronics sales office.

  • Page 2: Getting Started

    STM32 Nucleo development board using the provided firmware example. Step 5. Reset the MCU board using the reset button available on the STM32 Nucleo development board. The evaluation kit is ready to be used. UM2960 - Rev 2 page 2/15...

  • Page 3: Hardware Description And Configuration

    X-CUBE-NFC7 software. Note: To program the microcontroller on the STM32 Nucleo board refer to user manuals UM1724," STM32 Nucleo-64 board", and UM1725, "Description of STM32F4 HAL and LL drivers", available on www.st.com.). STM32 Nucleo and the X-NUCLEO-NFC07A1 are connected through CN5, CN6, CN8, and CN9 connectors as detailed in the following tables.

  • Page 4: Power Supply And Gpio Connection Options

    The same option applies to the lines driving the three general-purpose LEDs (MCU_LED1, MCU_LED2, and MCU_LED3) that can be dedicated to other purposes (by removing R2, R3 and R4, respectively). In case you modify these connections, update the firmware to enable proper use of the STM32 Nucleo resources. UM2960 - Rev 2 page 4/15...

  • Page 5: Board Components

    UM2960 Board components Board components Figure 3. X-NUCLEO-NFC07A1 expansion board component placement Arduino connector Arduino connector ST25DV64KC UM2960 - Rev 2 page 5/15...

  • Page 6: Block Diagram

    ST25DV64KC Low-power down Arduino connector Arduino connector Operating information X-NUCLEO-NFC07A1 frequency band or operating frequency is 13.56 MHz. Its power output is < 60 dBμA/m at 10 m (measured 10.01 dBμA/m at 10 m). UM2960 - Rev 2 page 6/15...

  • Page 7: Schematic Diagrams

    Schematic diagrams Figure 5. X-NUCLEO-NFC07A1 circuit schematic Extension connectors ST25DV_SCL 3.3V MCU_LED3 i Alims ST25DV_SDA MCU_LED2 MCU_LED1 IOREF RESET ST25DV_GPO +3V3 180R 560R SSQ-110-03-L-S SSQ-108-03-L-S LED1 LED2 LED3 GREEN BLUE YELLOW PB10 MCU_LED1 MCU_LED2 MCU_LED3 PA10 SSQ-106-03-L-S HE14 SSQ-108-03-L-S 3.3V i Alims i Alims Alims...

  • Page 8: Bill Of Materials

    AC0603JR-071KL 0603, 50V, +/-5% RESISTOR 560R PANASONIC ERJPA3F5600V R5, R6 0603, 50V, +/-5% RESISTOR 1K5 YAGEO AC0603FR-071K5L CRCW060320K0FKEA 0603, 50V, +/-5% RESISTOR 20K VISHAY CONNECTOR TSW-103-07-G-S SAMTEC TSW-103-07-G-S 1x3Pts CI ST25DV64KC- ST25DV64KC-IE6S3 IE6S3 SO8 UM2960 - Rev 2 page 8/15...

  • Page 9: Board Versions

    UM2960 Board versions Board versions Table 3. X-NUCLEO-NFC07A1 versions Finished good Schematic diagrams Bill of materials X$NUCLEO-NFC07A1 X$NUCLEO-NFC07A1 schematic diagrams X$NUCLEO-NFC07A1 bill of materials 1. This code identifies the X-NUCLEO-NFC07A1 evaluation board first version. UM2960 - Rev 2 page 9/15...

  • Page 10: Regulatory Compliance Information

    Formal product notice required by EU X-NUCLEO-NFC07A1 board is in conformity with the essential requirements of the Directive 2014/53/EU (RED) and of the Directive 2015/863/EU (RoHS). Harmonized standards applied are listed in the EU Declaration of Conformity. UM2960 - Rev 2 page 10/15...

  • Page 11: Revision History

    UM2960 Revision history Table 4. Document revision history Date Revision Changes 19-Jan-2022 Initial release. Updated introduction. 01-Mar-2022 Added Section 2.4 Operating information Section 6 Regulatory compliance information. UM2960 - Rev 2 page 11/15...

  • Page 12: Table Of Contents

    List of figures................14 UM2960 - Rev 2...

  • Page 13: List Of Tables

    Document revision history ............. 11 UM2960 - Rev 2...

  • Page 14: List Of Figures

    X-NUCLEO-NFC07A1 circuit schematic........... 7 UM2960 - Rev 2...
  • Page 15 ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’...
