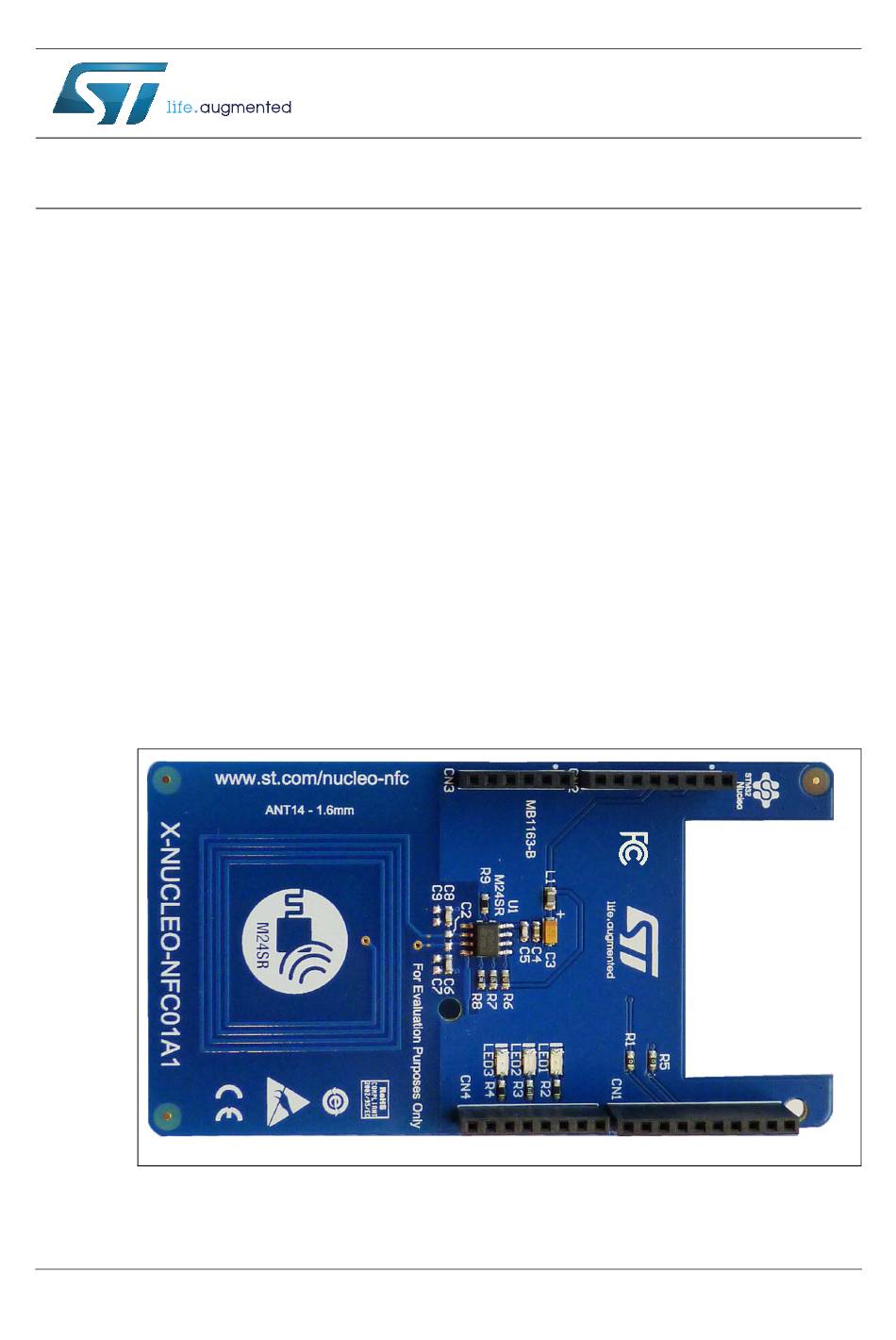

The board is powered through the Arduino UNO R3 connectors. It also includes three LEDs for general purpose. The X-NUCLEO-NFC01A1 (MB1163) schematics, BOM, gerber files, drivers and firmware are available for download on www.st.com. Figure 1. Dynamic NFC tag expansion board based on M24SR for STM32 Nucleo October 2014 DocID026566 Rev 2 www.st.com...
Page 2
Description UM1793 Description The X-NUCLEO-NFC01A1 board contains the M24SR64-Y chip. It is a dynamic NFC/RFID tag IC. It features a 64 Kbit EEPROM memory, preformatted for NFC transactions, and which can be protected by a unique and flexible 128-bit password scheme. The memory...
Page 3
UM1793 Features Features Ready-to-use printed circuit board (PCB) including: • M24SR64-Y dynamic NFC/RFID tag • 31 mm x 30 mm 13.56 MHz double layer inductive antenna etched on the PCB (ANT14) • Different color LEDs • Arduino UNO R3 connectors for Nucleo Board.
Page 4
Hardware and layout description UM1793 Hardware and layout description The X-NUCLEO-NFC01A1 board contains the M24SR64-Y chip. In addition to basic functionalities (NFC & I C) of this dynamic NFC/RFID tag IC, some LEDs driven by MCU GPIOs can be used for global purpose.
Page 5
UM1793 Hardware and layout description X-NUCLEO-NFC01A1 assembly drawing. Figure 3. Top assembly view X-NUCLEO-NFC01A1 board powering and startup Proceed as follow: Plug the X-NUCLEO-NFC01A1 on a Nucleo STM32 board Connect the Nucleo board to a PC via the Type A / mini B USB cable...
Page 7
UM1793 An overview of FCC regulations An overview of FCC regulations Part 15.105 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Revision history UM1793 Revision history Table 1. Document revision history Date Revision Changes 19-Jun-2014 Initial release. Updated Figure 1: Dynamic NFC tag expansion board based on M24SR for STM32 Nucleo. Updated Figure 3: Top assembly view. 31-Oct-2014 Updated Figure 4: Electrical schematics.
