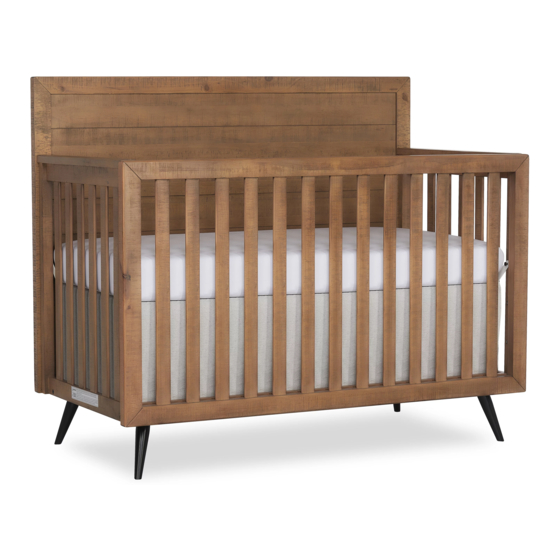

Evolur STILNOVO MID CENTURY Owner's Manual

Evolur STILNOVO MID CENTURY Owner's Manual

Convertible crib

Advertisement

Quick Links

STILNOVO MID CENTURY
Convertible Crib
Owner's Manual
Scan the QR code to register your product
https://www.evolurbaby.com/customer-care/product-registration/
Read all instructions before
assembling and using product.
IMPORTANT - Keep instructions
0322R2-927
for future use.

Advertisement

loading
Need help?

Need help?

Do you have a question about the STILNOVO MID CENTURY and is the answer not in the manual?

Questions and answers

Summary of Contents for Evolur STILNOVO MID CENTURY

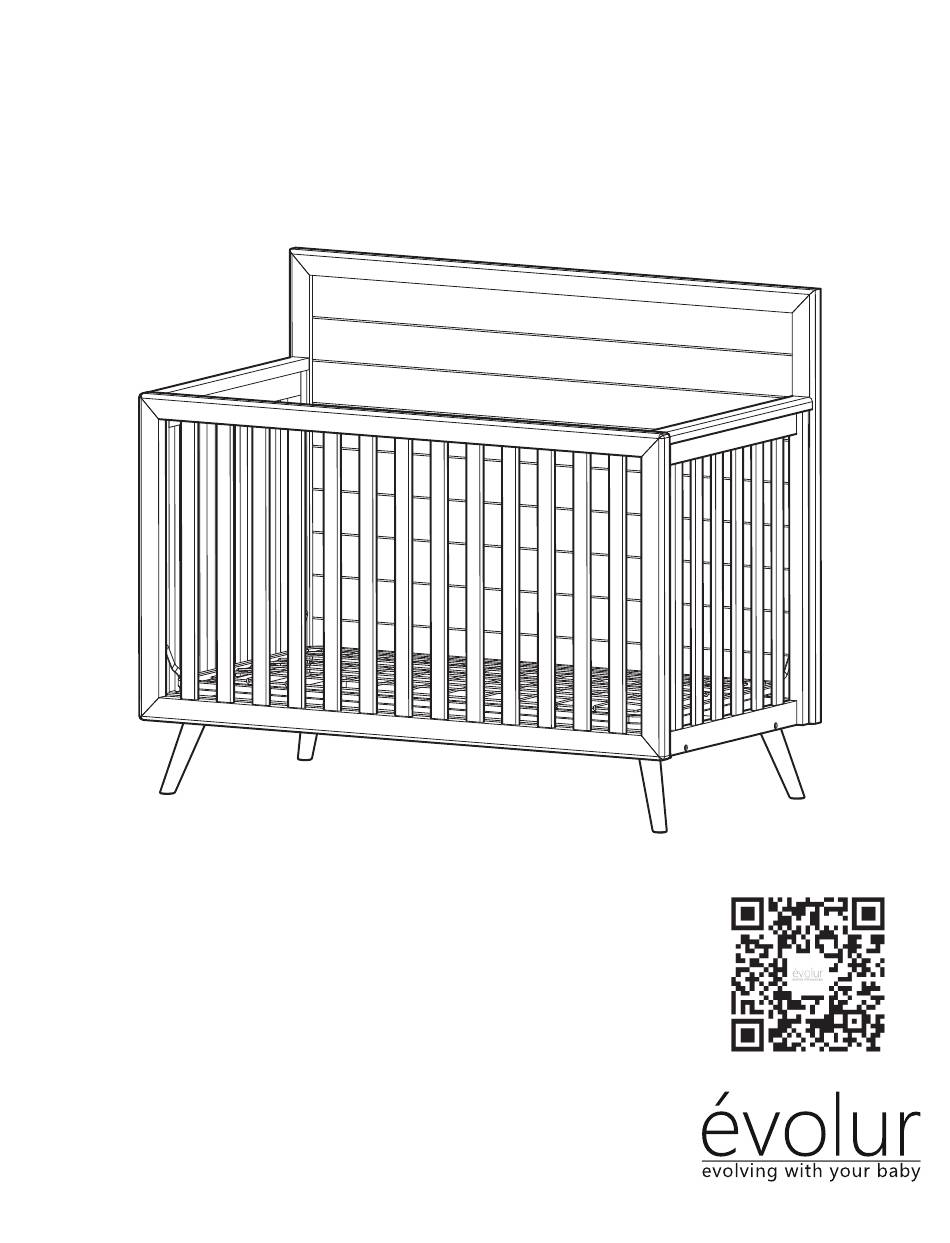

  • Page 1 STILNOVO MID CENTURY Convertible Crib Owner’s Manual Scan the QR code to register your product https://www.evolurbaby.com/customer-care/product-registration/ Read all instructions before assembling and using product. IMPORTANT - Keep instructions 0322R2-927 for future use.
  • Page 2 For a Safe and only water on a damp comfortable Sleep cloth. Do not use experience, we window cleaner or suggest using Evolur cleaning abrasive as it Greengaurd Gold will scratch the surface Certified Full-Size and could damage the Mattress.
  • Page 3: Limited Warranty

    LIMITED WARRANTY: • Evolur warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. • This warranty covers 1 year from the date of original purchase.
  • Page 4 SHARP EDGES BEFORE AND AFTER ASSEMBLY AND FREQUENTLY DURING USE. • DO NOT USE THIS CRIB IF ANY PARTS ARE MISSING, DAMAGED OR BROKEN. CONTACT EVOLUR INC - 1532 S. WASHINGTON AVE, PISCATAWAY, NJ 08854 FOR REPLACEMENT PARTS. • DO NOT USE A WATER MATTRESS WITH THIS CRIB.
  • Page 5 WARNINGS (cont.) WARNING • DO NOT USE THIS CRIB IF YOU CANNOT EXACTLY FOLLOW THE ACCOMPANYING INSTRUCTIONS. • DO NOT USE THIS CRIB FOR A CHILD WHO CAN CLIMB OUT OF IT OR WHO IS TALLER THAN 90 CM. • DO NOT PLACE IN OR NEAR THIS CRIB ANY CORD, STRAP OR SIMILAR ITEM THAT COULD BECOME WRAPPED AROUND A CHILD’S NECK.
  • Page 6 PARTS If there are any missing parts, please contact Evolur before using the product. Left Leg Support Plate Right Leg Support Plate Front and Rear Legs Front Bar Right Panel Left Panel www.evolurbaby.com/help...
  • Page 7 PARTS (cont.) If there are any missing parts, please contact Evolur before using the product. Headboard Mattress Support Footboard Panel www.evolurbaby.com/help...
  • Page 8 HARDWARE If there are any missing parts, please contact Evolur before using the product. Bolt 3/4” (×16) Bolt 2” (×2) Spring Lock Washer (x16) Bolt 1-1/2” (×10) Washer (x16) Bolt 3/4” (×4) Bolt 1-3/8” (×4) Bolt 1-3/4” (×10) Allen Key (x2) Bolt 3/4”...
  • Page 9 CRIB ASSEMBLY - LEGS ASSEMBLY 1a. Place the Right Leg Support Plate (1-R) on a soft surface with the bottom (Right) facing up. 1b. Note: the top of the plates are labelled. (1-R) 1c. Position the Front Leg (2) and the Rear Leg (2) on the Right Leg Support Plate (1-R).
  • Page 10 CRIB ASSEMBLY - BOTTOM FRAME ASSEMBLY 2a. Align the Front Bar (3) to the assembled legs as shown in the illustration. 2b. Ensure the threaded sleeves on the Support Plates are facing outward while assembling the Front Bar. 2c. Attach the Bolts (E) into the (Left) insertions provided on the front bar (1-L)
  • Page 11 CRIB ASSEMBLY - SIDE ASSEMBLY 3a. Align the Left Panel (5) and Right Panel (4) to the assembled bottom frame of the crib as shown in the illustration. 3b. Attach the Bolts (B) and Bolts (H) into the insertions provided on the side panels securing the parts.
  • Page 12 CRIB ASSEMBLY - HEADBOARD ASSEMBLY 4a. Align the Headboard Panel (6) to the side panels as shown in the illustration. 4b. Attach the Bolts (I) into the insertions provided on the headboard securing the parts. 4c. Tighten the bolts using the Allen Key (K) provided.
  • Page 13 CRIB ASSEMBLY - MATTRESS SUPPORT ASSEMBLY 5a. Attach all the corners of the Mattress Support Panel (7) to the headboard and side panels as shown in the illustration. 5b. Attach the Bolts (D) into the insertions and tighten the bolts using the Allen Key (K) provided.
  • Page 14 CRIB ASSEMBLY - FOOTBOARD ASSEMBLY 6a. Align the Footboard Panel (8) to the assembled side and front panels as shown in the illustration. 6b. Attach the Bolts (E) into the insertions provided on the side panels securing the parts. 6c. Tighten the bolts using the Allen Key (K) provided.
  • Page 15 CONVERSION MODES - DAYBED ASSEMBLY 1a. To convert the crib to a Daybed, you must remove the Footboard of the crib. 1b. Attach the Bolts (F) into the Nuts (G) through the insertions provided on both the side panels as shown in the illustration.
  • Page 16 *Make sure mattress support is at the lowest position. *Make sure to use the Stabilizer Bar that is included with Evolur Universal Toddler Guard Rail (SKU- 811) to convert the crib to toddler bed. Guard Rail and Stabilizer Bar (NOT INCLUDED, SOLD SEPARATELY)
  • Page 17 3c. Make sure to follow the complete instructions provided with Bed Rails. NOTE: *Make sure to use the Evolur Bed Rails (SKU-812) in order to convert the crib to a Full-size Bed with Footboard. *Do not put the mattress...
  • Page 18 FURNITURE CARE INSTRUCTIONS ROOM CLIMATE CONTROL: • Wood, when first cut contains more than 50 percent water. When it is prepared for furniture construction it is placed in a Kiln and the moisture content is brought down to 8 to 10 percent. Wood is porous and responds to its environment. If the room has high humidity it will absorb it and expand and if the humidity is low it will lose moisture and shrink.
  • Page 19 • Clean with a damp, not wet, cloth. Use only a mild soap. Do not use the abrasive cleaners. • Do not scratch or chip the finish. • Inspect the product periodically, contact Evolur Inc for replacement parts or questions. • Do not store the product or any parts in extreme temperatures and conditions such as a hot attic or a damp, cold basement.
  • Page 20 1532 S. WASHINGTON AVE STE1 PISCATAWAY, NJ 08854-9908 E-mail: info@evolurbaby.com www.evolurbaby.com Follow Us On @Evolurbaby @evolurbaby to get your nursery featured on our social media. Enter our monthly giveaway! Chat with us! Scan the QR code to register. Scan the QR code to Live Chat.
