Chair seat frame
Chair seat cushion
Table legs are long
Table legs are short
Table legs are short
CARE AND MAINTENANCE
Store outdoor furniture indoors or cover well when not in use.
Remove wicker furniture from standing water. Dust regularly with small brush or vacuum
Spills should be taken care of immediately before they harden or
stain with a slightly dampened sponge.
NOTICE
* Please make sure that you have all parts indicated before you begin assembly of this item
* This item should be assembled on a soft surface to prevent scratching the finish during assembly
* This item may require periodic tightening

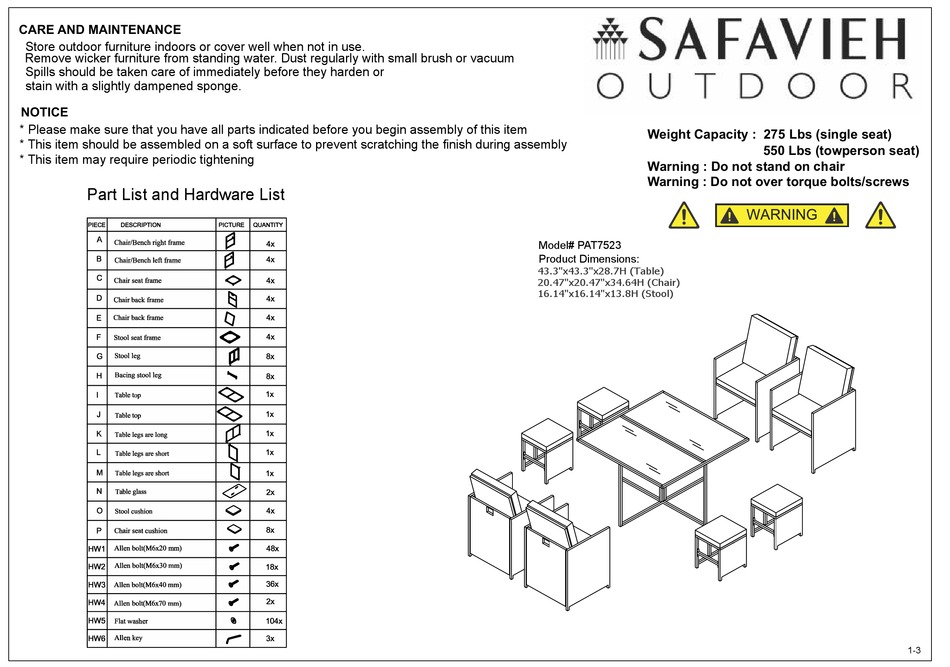

Part List and Hardware List
PIECE
DESCRIPTION
A
Chair/Bench right frame
B
Chair/Bench left frame
C
D
Chair back frame
E
Chair back frame
F
Stool seat frame
Stool leg
G
Bacing stool leg
H
I
Table top
J
Table top
K
L
M
N
Table glass
0
Stool cushion
p
HW1
Allen bolt(M6x20 mm)
HW2
Allen bolt(M6x30 mm)
HW3
Allen bolt(M6x40 mm)
HW4
Allen bolt(M6x70 mm)
HW5
Flat washer
Allen key
HW6
QUANTITY
f3
4x
f3
4x
<>
4x
4x
�
t:J
4x
<>
4x
Ill
8x
.....
8x
<o
1x
<o
1x
cO
1x
ti
1x
Cl
1x
<:>
2x
0
4x
<>
8x
"'
"'
48x
"'
18x
36x
"'
2x
�
104x
,-
3x
Weight Capacity : 275 Lbs (single seat)
Warning : Do not stand on chair
Warning : Do not over torque bolts/screws

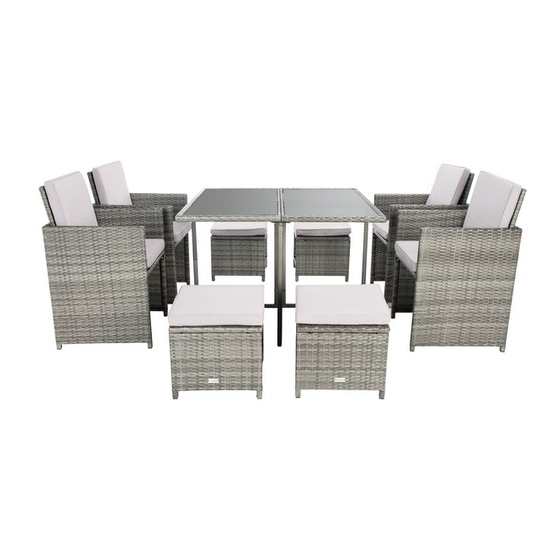

Model# PAT7523
Product Dimensions:
43.3"x43.3"x28.7H (Table)
20.47"x20.47"x34.64H (Chair)
16.14"x16.14"x13.8H (Stool)
550 Lbs (towperson seat)
1-3
