Larson Electronics VPLHL-7WLED-PC-XGFI Instruction Manual

Do not attempt operation until you are familiar with all warnings, precautions, and procedures outlined within this
instruction sheet. Read carefully before operating. Retain these instructions for future reference.
WARNING:
•
KEEP LIGHTED LAMP AWAY FROM COMBUSTIBLES.
•
DO NOT TOUCH HOT LENS GUARD OR ENCLOSURE.
•
DO NOT LOOK DIRECTLY AT LIGHTED LAMP.
•
DO NOT USE IF LENS GLOBE IS CRACKED OR DAMAGED.
•
USER SHOULD BE TRAINED IN THE PROPER USE AND MAINTENANCE OF THIS DEVICE.

USING THE HAND LAMP

This hand lamp comes preconfigured with user selected cord cap. Follow the steps
below to operate the unit.
1. Position light head in desired location using stainless steel swivel hook.
2. Run cable and attach power cord to compatible outlet with output
listed on product label
WARNING:
This hand lamp operates on selected voltage. Check product label
for correct voltage! Damage from improper voltage may not be covered by
warranty.

OPERATION

The LED lamp in the hand lamp is "instant-on" and will illuminate once power is supplied.

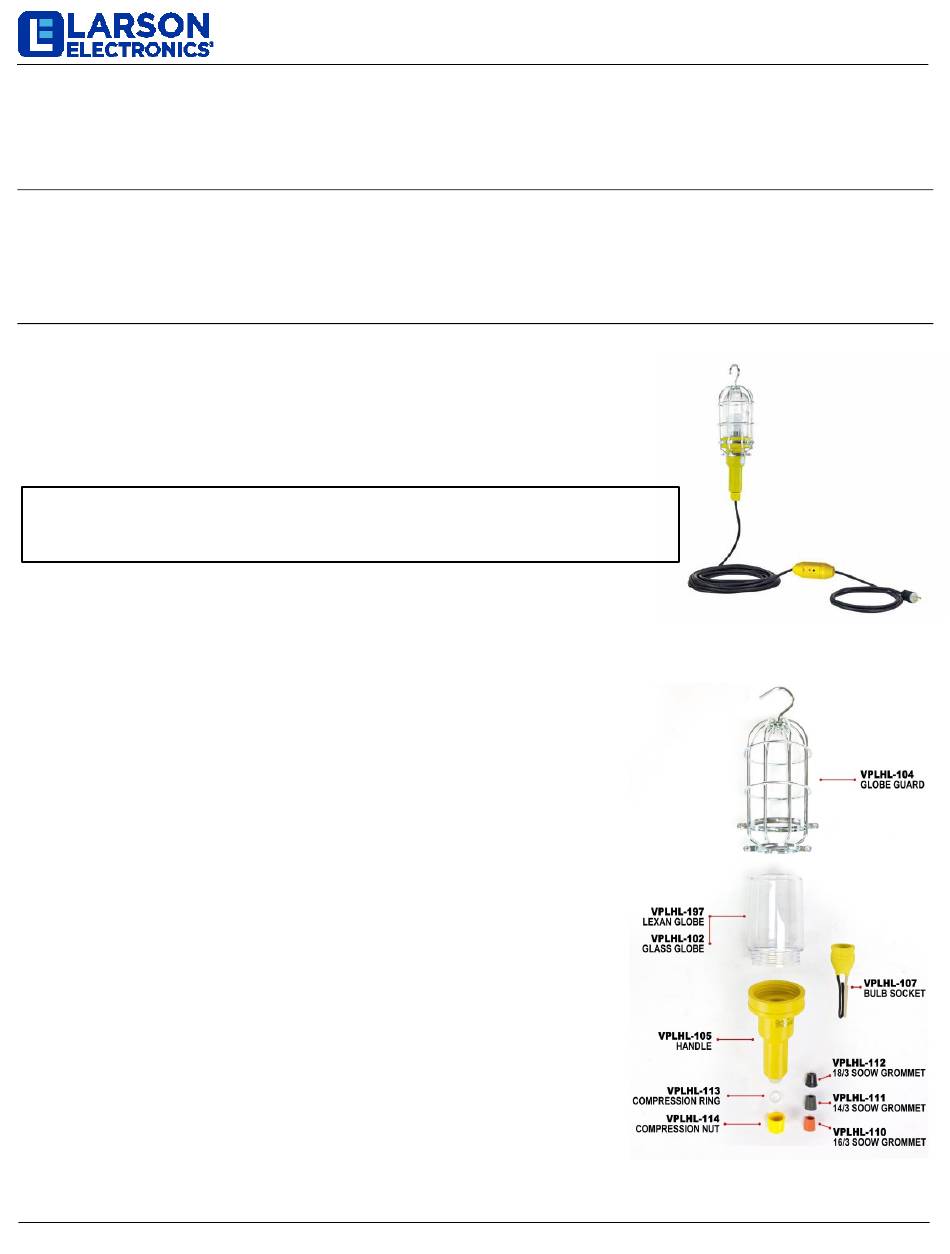

LAMP REPLACEMENT

1. Loosen (4) set screws holding Globe Guard.
2. Remove Globe Guard assembly from handle.
3. Unscrew Globe from handle.
4. Replace with compatible 10 watt LED lamp.
5. Screw Globe completely onto lamp base.
6. Replace Globe Guard.
7. Tighten (4) set screws securely.
Note: Over tightening can deform threads.

GROUND-FAULT CIRCUIT INTERRUPTER

In the event of a ground fault, a GFCI will trip and quickly stop the flow of
electricity to prevent serious injury.
Definition of a ground fault:
Instead of following its normal safe path, electricity passes through a person's
body to reach the ground. For example, a defective appliance can cause a
ground fault.
A GFCI receptacle does NOT protect against circuit overloads, short circuits, or
shocks. For example, you can still be shocked if you touch bare wires while
standing on a non-conducting surface, such as a wood floor.
NOTE:
GFCI's contain a lockout feature that will prevent RESET if:
• There is no power being supplied to the GFCI.
• The GFCI is miswired due to reversal of the LINE and LOAD leads.
• The GFCI cannot pass its internal test, indicating that it may not be able to
provide protection in the event of a ground fault.
Larson Electronics, LLC
10 Watt LED Vapor Proof Droplight / Handlamp
Instruction Manual
.
Phone: (800) 369-6671
voltage
Fax: (903) 498-3364
VPLHL-7WLED-PC-XGFI
www.larsonelectronics.com 1 of 2
