Preparing For Work - TSPROF KADET PRO User Manual

Your TSPROF Kadet Expert device has a number of features:
◆ The folding rack with a hinged joint and a collapsible abrasive holder allow you to significantly
reduce the overall dimensions of the device for easy storage and transportation.
◆ The rotary mechanism with a clamp allows you to work without resetting the knife in the clamp
and keep the same angle on both sides.
◆ The position of the cutting edge (hereinafter referred to as CE) remains unchanged at all stages
of work, including changing the sharpening angle and turning the clamp. This is important
for keeping the abrasive and its working stroke in the plane of the table, as well as for the
convenience of observing the process of sharpening the CE.
◆ The arc stand is made of a single piece of aluminum and is integrated with a rack and pinion lift
with serrated gearing. By rotating the adjusting knob, the rotating unit moves smoothly around
the virtual center where the cutting edge of the knife is located. The locking knob, after adjusting
the desired angle, allows the rotating unit to be securely locked in place.
◆ The design of the device has increased resistance to dynamic effects on the sharpening angle.
◆ The design of the device has increased resistance to dynamic effects on the sharpening angle
clamps from TSPROF K03 sharpening devices.

5. PREPARING FOR WORK

5.1 Working position of the rack:
◆ before setting the rack make sure that the rigid fixation screw (1) is tightened;
◆ set the rack vertically untilthe button clicks (2);
◆ to fix it firmly, twist the thumbscrew (1) up counterclockwise.
5.2 Folding ofthe rack:
◆ screw the rigid fixation screw (1) clockwise untiltight;
◆ press the button (2) holding the rack steady.

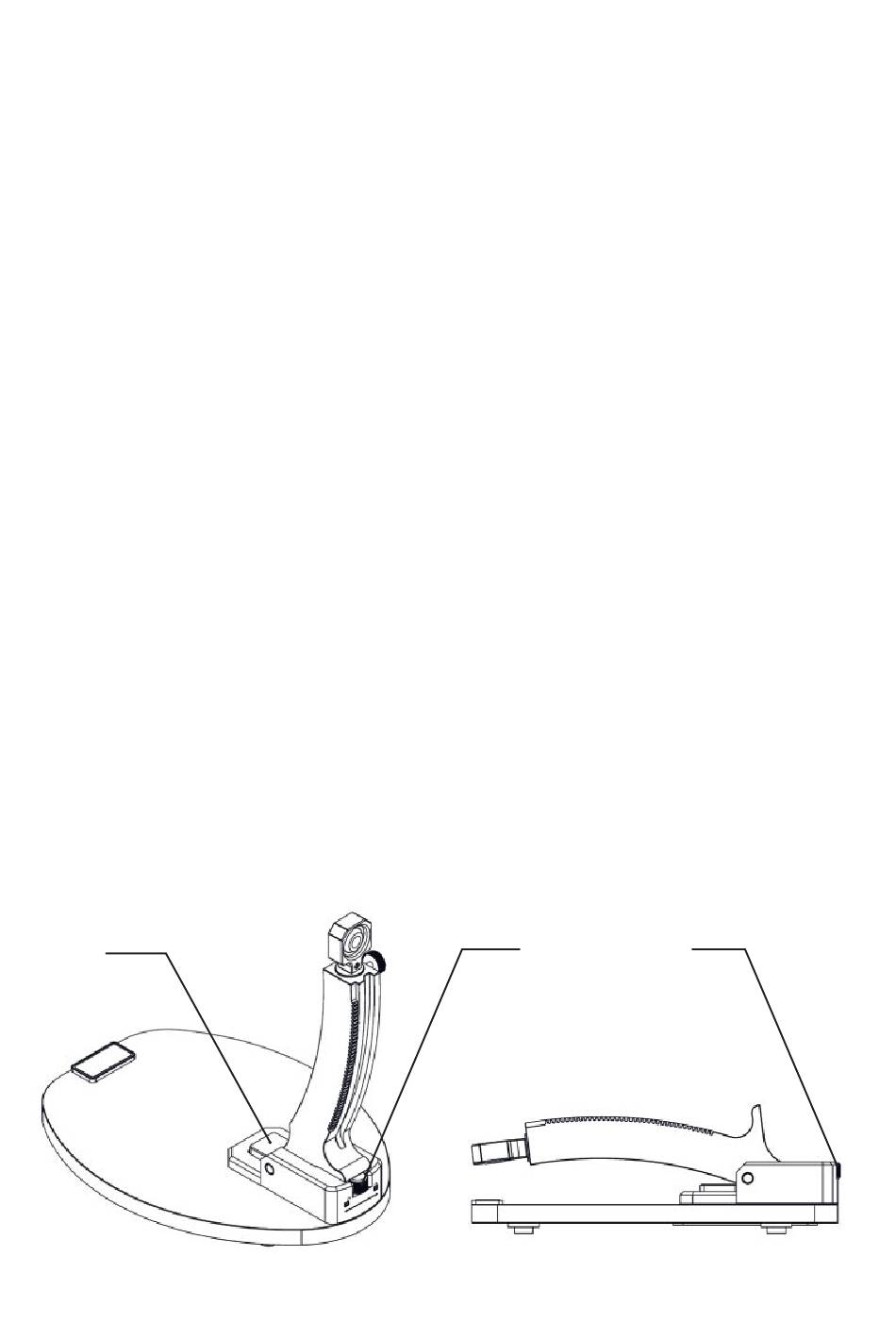

2
19
1 1
(fig. 2)
