- Page 1 УСТРОЙСТВО ЗАТОЧНОЕ TSPROF KADET PRO РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ TSPROF KADET PRO SHARPENING DEVICE USER MANUAL...
-
Page 3: Table Of Contents
ENGLISH CONTENT 1. Purpose..................................17 2. Technical characteristics............................17 3. Safety requirements..............................18 4. Construction................................18 5. Preparing for work..............................19 6. Operating procedure............................25 7. Cleaning and maintenance..........................27 8. Storage and transportation..........................27 9. Utilization...................................28 10. Warranty obligations............................28 Certificate of acceptance and sale......................29... -
Page 4: Purpose

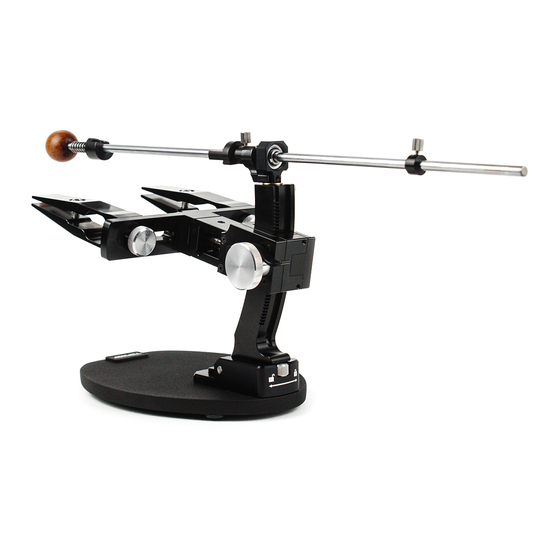

The manufacturer is not responsible for damage caused by improper use of the devices 1. PURPOSE The TSPROF Kadet Pro sharpening device (hereinafter referred to as the Device) is a universal sharpening tool designed for double-sided sharpening of knives without removing the blade from the clamps for sharpening of the back side of the blade. -
Page 5: Safety Requirements
3. SAFETY REQUIREMENTS ◆ Be sure to read this User Manual before using the device. The device should not be used by persons who are not familiar with this manual. ◆ This device is not intended for use by people (including children) of reduced physical, sensory or mental abilities, or lack of experience and knowledge, unless they are supervised or instructed by a person responsible for their safety. -
Page 6: Preparing For Work
Your TSPROF Kadet Expert device has a number of features: ◆ The folding rack with a hinged joint and a collapsible abrasive holder allow you to significantly reduce the overall dimensions of the device for easy storage and transportation. ◆ The rotary mechanism with a clamp allows you to work without resetting the knife in the clamp and keep the same angle on both sides. - Page 7 It is not allowed to fold the construction with an installed rotary mechanism! Avoid hitting the stand with the rack hard. It is not allowed to fold the construction with an untightened screw! 5.3 Setting the rotating mechanism: Installation is performed with the removed hinge unit ◆...
- Page 8 5.5 Setting the clamps: ◆ place the clamps (1) one at a time on the frame (2) and tighten the thumb screw М5х18 (3) on each of them until bumping. (fig. 5) 5.6 Assembling and setting ofthe abrasive holder: ◆ loosen the screw (2) and insert the abrasive holder (1) into the coupling (5); secure it with the screw (2);...
- Page 9 To set a sharpening stone of another length, adjust the position of the fixed stop: ◆ loosen the fixed stop screw with a 1.5 mm allen key; ◆ adjust the position of the fixed stop; ◆ tighten the screw and set the sharpening stone. (fig.
- Page 10 5.10 Parking of the abrasive holder: To put the holder on the parking lot: ◆ turn the holder with the sharpening stone with working surface ofthe sharpening stone up; ◆ carefully place the parking bracket (1) at the base of the hinge unit (2). (fig.
- Page 11 *The precise angle depends on the distance of the knife blade relative to the edge of the clamping jaws, the thickness of the sharpening stone together with the blank, the use of an abrasive thickness compensator. The maximum deviation of the table data from the actual sharpening angle when using the abrasive thickness compensator in the upper position is 25±2 %.
-
Page 12: Operating Procedure
6. OPERATING PROCEDURE Remember that you are working with a sharp knife. Use care and caution when sharpening. Careless sharpening can cause serious injury. Do not leave the unit with the knife clamped unattended. 6.1 Clamping the knife: To prevent scratches on the knife, it is recommended to tape the knife with masking tape before sharpening: ◆... - Page 13 You can also sharpening a knife catching an existing angle. To do this you have to: ◆ use a marker to paint over the knife’s secondary bevel; ◆ place the abrasive in the abrasive holder; ◆ run the abrasive over the painted part; ◆...
-
Page 14: Cleaning And Maintenance
(fig. 16) There are many details about the correct sharpening of a knife. Learn more about the various aspects of sharpening on our Youtube channel: https://www.youtube.com/c/TSPROFSharpening 7. CLEANING AND MAINTENANCE After finishing your work, remove dirt from the device and clean all surfaces thoroughly. We recommend lubricating the rotating mechanism axis after each use. -
Page 15: Utilization
The equipment is removed from the warranty in case of violations of the rules of operation specified in the operating instructions. To send the product for warranty, non-warranty, post-warranty service, it is mandatory to send a claim to service@tsprof.com. Address for sending the product: Russia, 426039, Udmurt Republic, Izhevsk, Votkinskoye shosse, 298, office B4, «TSPROF Rus» OOO... -
Page 16: Certificate Of Acceptance And Sale
СВИДЕТЕЛЬСТВО О ПРИЕМКЕ И ПРОДАЖЕ CERTIFICATE OF ACCEPTANCE AND SALE Устройство заточное TSPROF Kadet Pro соответствует технической документации и признано годным для эксплуатации. The TSPROF Kadet Pro sharpening device complies with the technical documentation and found to be serviceable. Serial no.: Дата приемки: Контролер:... - Page 18 +7 (3412) 79-40-19 INFO@TSPROF.COM Производитель: Россия, 426039, Удмуртская Республика, г. Ижевск, Воткинское шоссе, 298, помещение В4, ООО «ТСПРОФ Рус» SHOP.TSPROF.COM +1 (877) 638 82 48 SALES@TSPROF.COM Manufacturer: OOO «TSPROF Rus», Votkinskoye Shosse, 298, B4, Izhevsk, Udmurt Republic, Russian Federation, 426039...
