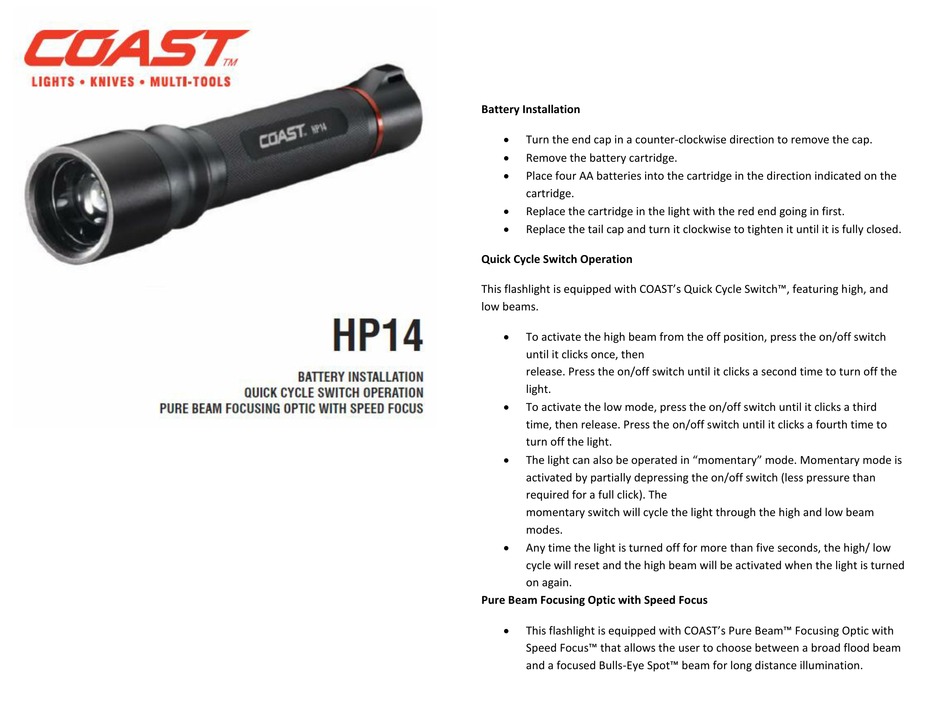

Battery Installation
Turn the end cap in a counter-clockwise direction to remove the cap.
Remove the battery cartridge.
Place four AA batteries into the cartridge in the direction indicated on the
cartridge.
Replace the cartridge in the light with the red end going in first.
Replace the tail cap and turn it clockwise to tighten it until it is fully closed.
Quick Cycle Switch Operation
This flashlight is equipped with COAST's Quick Cycle Switch™, featuring high, and
low beams.
To activate the high beam from the off position, press the on/off switch
until it clicks once, then
release. Press the on/off switch until it clicks a second time to turn off the
light.
To activate the low mode, press the on/off switch until it clicks a third
time, then release. Press the on/off switch until it clicks a fourth time to
turn off the light.
The light can also be operated in "momentary" mode. Momentary mode is
activated by partially depressing the on/off switch (less pressure than
required for a full click). The
momentary switch will cycle the light through the high and low beam
modes.
Any time the light is turned off for more than five seconds, the high/ low
cycle will reset and the high beam will be activated when the light is turned
on again.
Pure Beam Focusing Optic with Speed Focus
This flashlight is equipped with COAST's Pure Beam™ Focusing Optic with
Speed Focus™ that allows the user to choose between a broad flood beam
and a focused Bulls-Eye Spot™ beam for long distance illumination.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Coast HP14
Summary of Contents for Coast HP14
- Page 1 Replace the tail cap and turn it clockwise to tighten it until it is fully closed. Quick Cycle Switch Operation This flashlight is equipped with COAST’s Quick Cycle Switch™, featuring high, and low beams. To activate the high beam from the off position, press the on/off switch until it clicks once, then release.
- Page 2 To adjust the beam into the Bulls-Eye Spot™ mode, slide the head of the light all the way forward. To adjust the beam into the broad, flood light mode, slide the head of the flashlight back. The beam can be locked into any position, from full flood beam to spot beam.
