4.8 How to Set Up your Computer's IP Address for Direct Connect

When your computer is connected directly to the RCM2200 board via an Ethernet connec-

tion, you need to assign an IP address to your computer. To assign the PC the address

10.1.1.1 with the subnetmask 255.255.255.248 under Windows 98, do the following.

Click on

Start > Settings > Control Panel

ble-click the Network icon. In the window find the line of the form

. Double-click on this line to bring up the TCP/IP properties dialog box.

adapter name

You can edit the IP address directly and the subnet mask. (Disable "obtain an IP address

automatically.") You may want to write down the existing values in case you have to

restore them later. It is not necessary to edit the gateway address since the gateway is not

used with direct connect.

The method of setting the IP address may differ for different versions of Windows, such as

95, NT, or 2000.

IP 10.1.1.1

Subnet mask

255.255.255.248

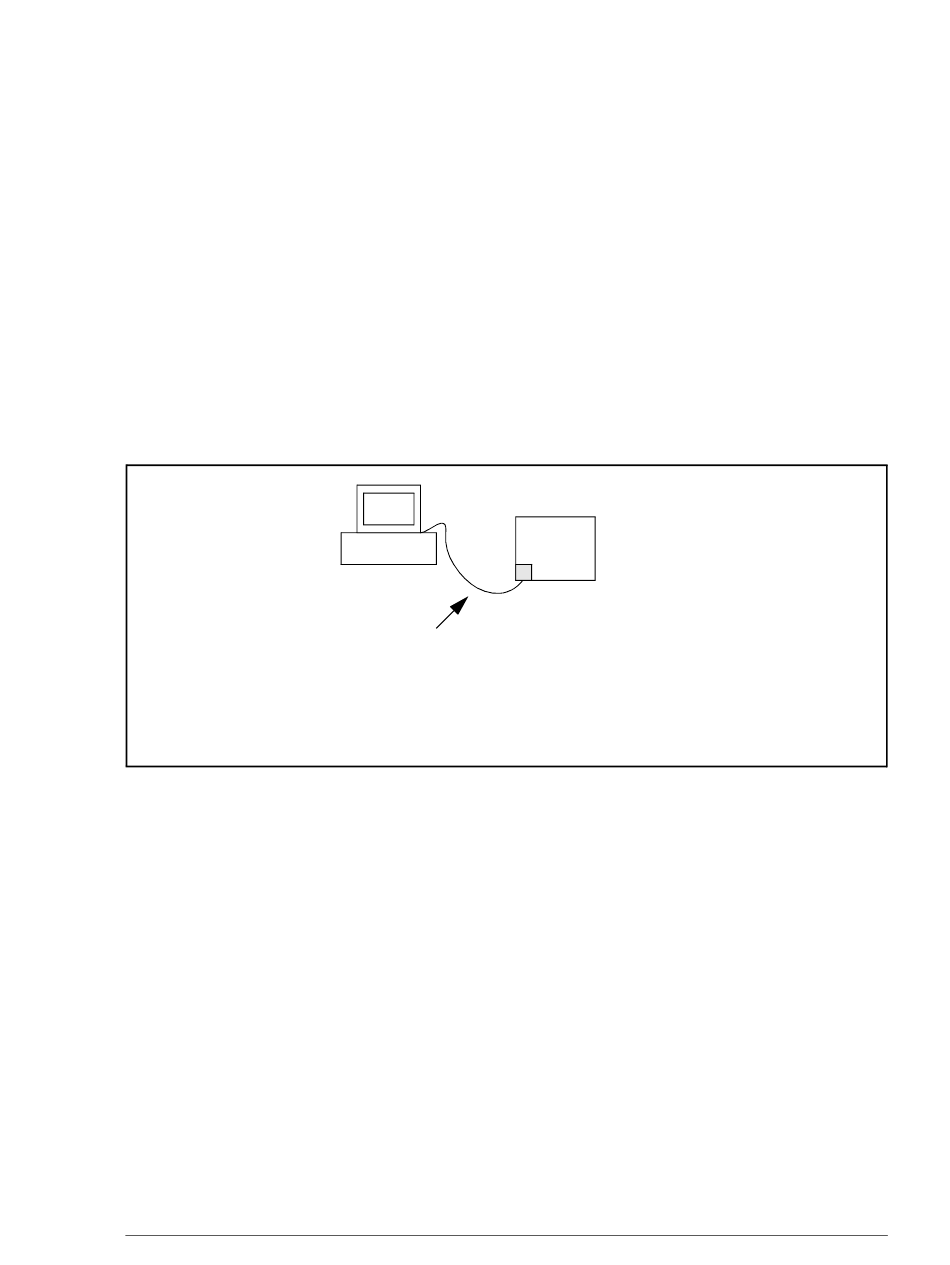

Direct Connection PC to RCM2200 Board

Getting Started

to bring up the Control Panel, and then dou-

User's PC

#define MY_IP_ADDRESS "10.1.1.2"

Ethernet

crossover

#define MY_NETMASK "255.255.255.248"

cable

RCM2200

Board

TCP/IP > Ethernet
