CONTACT US FIRST
CONTACT US FIRST
sauder.com
sauder.com
sauder.com
BEFORE MAKING ANY RETURNS TO THE STORE.
BEFORE MAKING ANY RETURNS TO THE RETAILER.
sauder.com/service
Visit
Prefer the phone? Give us a ring at
Customer Service is available Monday-Friday - 9 a.m. to 5:30 p.m. EST (except holidays)

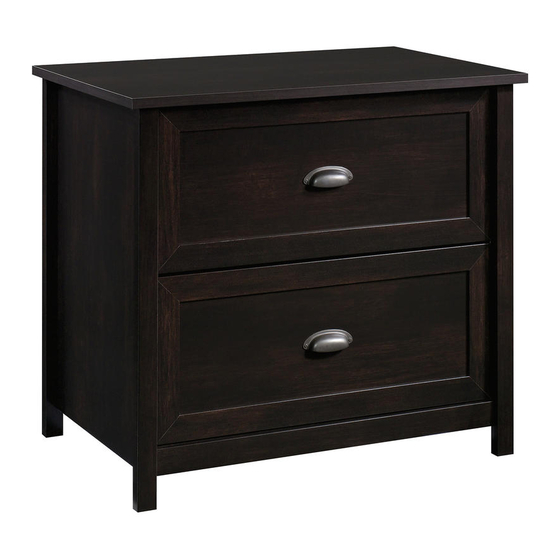

Lateral File
County Line Collection | Model 427719
Sauder.com
Share your journey!
to order replacement parts, view video assembly tips, or chat with a live rep.
1-800-523-3987
.
Get all organized
and stuff.
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-24
Français pg 25-28
Español pg 29-32
Lot # 553194
Purchased: __________________
10/02/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the County Line 427719 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sauder County Line 427719

Summary of Contents for Sauder County Line 427719

  • Page 1 CONTACT US FIRST CONTACT US FIRST sauder.com sauder.com sauder.com BEFORE MAKING ANY RETURNS TO THE STORE. BEFORE MAKING ANY RETURNS TO THE RETAILER. sauder.com/service Visit to order replacement parts, view video assembly tips, or chat with a live rep. 1-800-523-3987 Prefer the phone? Give us a ring at Customer Service is available Monday-Friday - 9 a.m.

  • Page 2: Table Of Contents

    Table of Contents Assembly Tools Required Part Identification No. 2 Phillips Screwdriver Hardware Identification Tip Shown Actual Size Hardware Usage Guide Assembly Steps 6-24 Hammer Not actual size Français 25-28 Español 29-32 Tape Measure Safety 33-34 Warranty Scissors Page 2 427719 www.sauder.com/service...

  • Page 3: Part Identification

    DRAWER FRONT (2) DRAWER BRACE (2) BOTTOM (1) LEFT FRONT LEG (1) (Hidden part using recycled LEFT DRAWER SIDE (2) RIGHT FRONT LEG (1) material. Color may vary.) RIGHT DRAWER SIDE (2) LEFT REAR LEG (1) D729 www.sauder.com/service 427719 Page 3...

  • Page 4: Hardware Identification

    BLACK 9/16" LARGE HEAD SCREW - 8 3S GOLD 5/16" FLAT HEAD SCREW - 16 30S BLACK 1-9/16" FLAT HEAD SCREW - 10 BROWN 7/16" LARGE HEAD SCREW - 8 SILVER 1/4" MACHINE SCREW - 4 Page 4 427719 www.sauder.com/service...

  • Page 5: Hardware Usage Guide

    Push a HIDDEN CAM into Insert the CAM SCREW into the HIDDEN CAM. the part. The arrow in the Tighten the HIDDEN CAM. HIDDEN CAM must point toward the hole in the edge of the board. Hole www.sauder.com/service 427719 Page 5...
  • Page 6 Just think. The sooner you do this, the sooner å To begin assembly, push four SAUDER TWIST-LOCK® you do something else. FASTENERS (7F) into the large holes in the ENDS (A and B). å...
  • Page 7 Step 2 å Push twelve HIDDEN CAMS (1F) into the ENDS (A and B). Arrow (12 used) Arrow www.sauder.com/service 427719 Page 7...
  • Page 8 Step 3 å Turn twenty CAM SCREWS (8F) into the LEGS (F, G, H, and J). å Insert four WOOD DOWELS (15F) into the LEGS (F, G, H, and J). (20 used) Page 8 427719 www.sauder.com/service...
  • Page 9 NOTE: Be sure the WOOD DOWELS in the LEGS insert into the END. Edge with TWIST-LOCK® FASTENERS Groove These surfaces should be even. The LEGS will overhang this edge. Edge with TWIST-LOCK® FASTENERS These surfaces should be even. The LEGS will overhang this edge. www.sauder.com/service 427719 Page 9...
  • Page 10 Step 5 å Insert two SAFETY STOPS (29G) into the holes shown in the RIGHT END (A). This pin must insert into the location holes in the RIGHT END (A). Page 10 427719 www.sauder.com/service...

  • Page 11: Safety

    This measurement snaps into each needs to be accurate SAFETY STOP. for the interlock track to work properly. Snap the INTERLOCK TRACK into the SAFETY STOPS. Do not slide the SAFETY STOPS onto the INTERLOCK TRACK. Groove www.sauder.com/service 427719 Page 11...
  • Page 12 RAILS. If the gap is larger than 1/16", the drawers could lock up and not open. If this happens, open two drawers at the same time to override the interlock system. Remove the drawers to re-adjust the INTERLOCK TRACK assembly. Page 12 427719 www.sauder.com/service...
  • Page 13 Fasten the LEFT END (B) to the TOP (C). Tighten two TWIST-LOCK® FASTENERS. å NOTE: Be sure the WOOD DOWEL in the END inserts into the TOP. S u r f a c i t h h o l These surfaces should be even. www.sauder.com/service 427719 Page 13...
  • Page 14 Step 9 å Push eight HIDDEN CAMS (1F) into the BACKS (K). å Fasten the BACKS (K) to the LEFT REAR LEG (H). Tighten four HIDDEN CAMS. Arrow Arrow Page 14 427719 www.sauder.com/service...
  • Page 15 Step 10 å Push four SAUDER TWIST-LOCK® FASTENERS (7F) into the large holes in the BOTTOM (D). Side Step: Make nachos. (Optional, but recommended.) Do not tighten the TWIST-LOCK® FASTENERS in this step. www.sauder.com/service 427719 Page 15...
  • Page 16 å Slide the BOTTOM MOLDING* (E) onto the notched edge of the BOTTOM (D). å *U.S. Patent No. 5,499,886 Notched edge Slide the MOLDING (E) onto the notched edge. The groove is closer to this edge. Page 16 427719 www.sauder.com/service...
  • Page 17 Fasten the END (A) to the TOP (C) and BOTTOM (D). Tighten four TWIST-LOCK® FASTENERS. å NOTE: Be sure the WOOD DOWEL in the END inserts into the TOP. å Fasten the RIGHT REAR LEG (J) to the BACKS (K). Tighten four HIDDEN CAMS. www.sauder.com/service 427719 Page 17...
  • Page 18 Step 13 å Push one HIDDEN CAM (1F) into a DRAWER BRACE (M63). å Turn one CAM SCREW (8F) into a DRAWER FRONT (L). (2 used) Arrow (2 used) Page 18 427719 www.sauder.com/service...

  • Page 19: Bracket

    Fasten the DRAWER BACK (D61) to the DRAWER å Fasten the DRAWER BRACE (M63) to the DRAWER SIDES (D32 and D33) and DRAWER BRACE (M63). FRONT (L). Tighten one HIDDEN CAM. Use five BLACK 1-9/16" FLAT HEAD SCREWS (30S). www.sauder.com/service 427719 Page 19...

  • Page 20: Brown 7/16" Large Head Screw

    1/4" MACHINE SCREWS (61S), through two WASHERS (10I) and into the DRAWER FRONT. The BRACKETS should be oriented as shown. BROWN 7/16" LARGE HEAD SCREW (8 used in this step) SILVER 1/4" MACHINE SCREW (4 used for the PULLS) Page 20 427719 www.sauder.com/service...
  • Page 21 DRAWER SIDE (D32). Use two GOLD 5/16" FLAT HEAD SCREWS (3S) through holes #2 and #4. GOLD 5/16" FLAT HEAD SCREW (4 used for the SLIDES) Drawer Slide Open end Center the screw in the oval hole. www.sauder.com/service 427719 Page 21...
  • Page 22 Now, fasten the EXTENSION SLIDE (40MC) to the RIGHT DRAWER SIDE (D33). Use two GOLD 5/16" FLAT HEAD SCREWS (3S) through holes #2 and #4. Slot GOLD 5/16" FLAT HEAD SCREW (4 used for the SLIDES) Open end 40MC These tabs must insert into the slots. Post 40MC Seated Page 22 427719 www.sauder.com/service...

  • Page 23: File Bracket

    Use the exact holes shown in the FILE GLIDES (19B) and å Repeat Steps 13 through 18 for the other drawer. FILE BRACKETS (12B) to insert the FILE RODS (9B) through. Use this hole for Use these holes. the FILE ROD. www.sauder.com/service 427719 Page 23...
  • Page 24 NOTE: Please read the back pages of the instruction booklet for important safety information. å This completes assembly. Clean with a damp cloth. Wipe dry. And to celebrate, why not share your success story at sauder.com or 35 lbs. Page 24 427719 www.sauder.com/service...
  • Page 25 DESCRIPTION QUANTITÉ REFERENCE DESCRIPTION QUANTITÉ conserver le livret pour future référence. Pour contacter Sauder en EXTRÉMITÉ DROITE ..........1 (ENSEMBLE DE GLISSIÈRE ILLUSTRÉ À PART) ce qui concerne cet EXTRÉMITÉ GAUCHE ..........1 45MA GLISSIÈRE D'EXTENSION ........4 élément, faire référence DESSUS ................1 45MC COULISSE D'EXTENSION ........4...
  • Page 26 DE SÉCURITÉ. Pour commencer l'assemblage, enfoncer quatre Schéma 4. Répéter la FIXATION DES ARRÊTS DE SÉCURITÉ/ FIXATIONS TWIST-LOCK® SAUDER (7F) dans les RAILS pour les prochains ARRÊTS DE SÉCURITÉ tout en gros trous des EXTRÉMITÉS (A et B). maintenant l’ARRÊT DE SÉCURITÉ préalablement assemblé...
  • Page 27 "RH" (Droite) et l'inscription "LH" (Gauche) pour Ne pas serrer les FIXATIONS TWIST-LOCK® à cette étape. faciliter leur identification. Enfoncer quatre FIXATIONS TWIST-LOCK® SAUDER (7F) dans les Fixer le DEVANT DE TIROIR (L) aux CONSOLES DE DEVANT DE gros trous dans le DESSOUS (D).
  • Page 28 Ceci complète l'assemblage. Nettoyer avec un tissu humide. Essuyer. Maintenant, fixer une COULISSE D’EXTENSION (40MC) au CÔTÉ DROIT DE TIROIR (D33). Utiliser deux VIS TÊTE PLATE 8 mm DORÉES (3S) à travers les trous nº 2 et nº 4. Page 28 427719 www.sauder.com/service...
  • Page 29 (JUEGO DE EXTENSIÓN SE MUESTRA POR SEPARADO) su referencia futura. Si necesita ponerse en 45MA RIEL DE EXTENSIÓN ..........4 EXTREMO IZQUIERDO ..........1 contacto con Sauder en 45MC CORREDERA DE EXTENSIÓN ......4 PANEL SUPERIOR ............1 cuanto a esta unidad, BARRA DE ARCHIVERO ........4 FONDO .................1...
  • Page 30 Para comenzar el ensamblaje, empuje cuatro SUJETADORES ubicación. Repita estos pasos hasta que todos los TOPES hayan TWIST-LOCK® SAUDER (7F) en los agujeros grandes sido fijados. Compruebe visualmente que todos los bordes de los de los EXTREMOS (A y B).
  • Page 31 CAJÓN (10G). Utilice cuatro TORNILLOS NEGROS DE CABEZA No apriete los SUJETADORES TWIST-LOCK® en este paso. GRANDE de 14 mm (1S). Empuje cuatro SUJETADORES TWIST-LOCK® SAUDER (7F) en 2. Deslice el FONDO DE CAJÓN (D729) en las ranuras de los los agujeros grandes del FONDO (D).
  • Page 32 Ahora, fije una CORREDERA DE EXTENSIÓN (40MC) al LADO DERECHO DE CAJÓN (D33). Utilice dos TORNILLOS DORADOS DE CABEZA PERDIDA de 8 mm (3S) a través de los agujeros No. 2 y No. 4. Page 32 427719 www.sauder.com/service...
  • Page 33 Les téléviseurs peuvent être très un téléviseur. téléviseur. lourds. De plus, le poids et l’emplacement du tube image ont tendance à rendre les téléviseurs instables et enclins à tomber vers l’ a vant. www.sauder.com/service 427719 Page 33...
  • Page 34 Además, el peso y la ubicación del tubo de imagen tienden a causar la inestabilidad de televisores y hacerlos propensos a volcarse hacia adelante. Page 34 427719 www.sauder.com/service...
  • Page 35 à compter de la date d'achat la première fois et qui sont signalés à Sauder dans les limites de couverture de la contre tout défaut de matériaux ou de fabrication des composantes de mobilier Sauder.
  • Page 36 BEFORE MAKING ANY RETURNS TO THE RETAILER. So, how did it go? Dear Valued Customer: Thanks so much for choosing Sauder® furniture. I hope the Set a world record for speed? purchase and assembly process was a positive experience Feeling good about yourself? and you feel good about the furniture you just built.
