MEASURING BENCH
PS15/16/17
Benefiting from long experience acquired through contact
with our demanding Swiss watchmaking customers, Sylvac
has developed a range of measuring benches enabling
most small external and internal dimensions to be checked
precisely and quickly.
As the miniaturisation of components nowadays affects all
industrial fields, Sylvac is in a position to provide a reliable
solution with these instruments for the most unlikely of
applications.
GENERAL CHARACTERISTICS :
•
PS15 and PS17 measuring benches to be equip-
ped with a digital indicator or a measuring probe
•
PS16 V2 measuring benches with integrated
display
•
Powered by lithium battery type CR2477/CR2032
(PS16 V2)
•
mm/inch conversion on all models
•
Working temperature +5° to +40°C
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sylvac PS15
Summary of Contents for Sylvac PS15
- Page 1 As the miniaturisation of components nowadays affects all industrial fields, Sylvac is in a position to provide a reliable solution with these instruments for the most unlikely of applications.

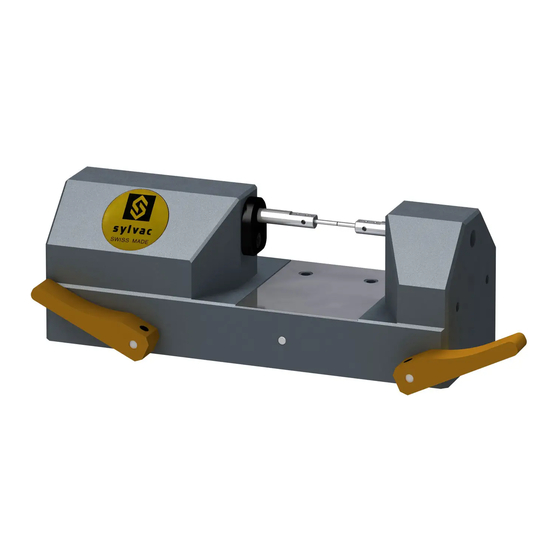

- Page 2 DESCRIPTION • Horizontal precision bench for measuring small external dimensions • Can be equipped with either a digital digital indicator or a Sylvac measuring probe. • Robust cast iron construction • 2 ergonomic levers for moving the movable axis with ball-bearing guide •...
-
Page 3: Dimensional Drawings
Bench table PS15 DIMENSIONAL DRAWINGS TECHNICAL SPECIFICATIONS 808-1215 Type PS15BH Max. Capacity C Measuring range Adjustable measuring force 0.3 - 1.0 Max. error µm Probe P10 : 0.6µm / Digital indicator S_Dial : 1.6 - 3µm Weight Measuring direction Horizontal Anvils fixation Ø... - Page 4 Bench table PS15 DESCRIPTION • Measuring bench similar to the horizontal bench but prepared for vertical use, with support base and levers posi- tioned to the left and right of the bench. • This bench is generally equipped with either a flat round table 908-2165 or a rotary hole table 908-2172 with 25 bores Ø...
- Page 5 Bench table PS15 DIMENSIONAL DRAWINGS TECHNICAL SPECIFICATIONS 808-1216 808-1218 Type PS15BV PS15BV + Measuring scale 0.3 - 1.0 0.3 - 1.0 Adjustable measuring force Max. error µm Probe P10 : 0.6µm / Digital indicator S_Dial : 1.6 - 3µm Weight...
- Page 6 Lapping device (3 stones and lapping liquid included) Lapping device • Device for lapping the anvils on the PS15 BH, PS16 V2 and PS17 measuring benches, enabling perfect parallelism of the anvils for greater measuring accuracy. • Set consisting of a movable element with linear guide and a motorised rotary drive system for the honing stone •...
- Page 7 Bench table PS15 APPLICATIONS XYZ table with plate with fine adjustment. Special anvils Measurement of small parts with PS15V+and rotation 25 holes support Table with plate Ø 3 mm and fine adjustment. Multi-functional measuring station Gear measuring anvils. On request...
- Page 8 • The position of the levers can be used to adjust the backward movement of the mobile axis. • Compatible with Sylvac Ø 1.5 mm and Cary type anvils • Supplied with hard metal measuring anvils Ø 1.5 mm •...
- Page 9 Bench table PS16 V2 DIMENSIONAL DRAWINGS SMART TECHNICAL SPECIFICATIONS External measurement 808-1231 808-1232 Max. Capacity C Max. Error µm Repeatability µm Resolution µm Measuring force (Adjustable) 0.1 - 0.6 Weight Output data Bluetooth wireless technology / RS232 / USB ® Anvils clamping dimension Ø...
- Page 10 Bench table PS16 V2 LV DESCRIPTION SMART • Measuring bench similar to the PS16 V2 bench, but equipped with a table and anvils assembly allowing to mea- sure large internal diameters up to 74 mm. • Originally designed for measuring watch cases, it is also suitable for measuring rings and thin parts. •...
- Page 11 Bench table PS16 V2 LV Available for: CH-1023 Crissier (Suisse) e-mail : vente @ sylvac.ch DIMENSIONAL DRAWINGS SMART sav @ sylvac.ch web site : www.sylvac.ch 808-1233 (Anvils 808-2183) 808-1234 (Anvils 808-2184) Matière: Chanfreiner: Article: Trait. thermiques: Masse / Volume: 29312468.882 g/815.832 mm3 Trait.
- Page 12 Bench table PS16 V2 3-Points DESCRIPTION SMART • Measuring bench similar to the PS16 V2 bench, but equipped with a table and anvils assembly allowing very small shallow internal diameters to be measured at 3 points, thanks to an electronic calculation function. •...
- Page 13 Bench table PS16 V2 3-Points DIMENSIONAL DRAWINGS SMART TECHNICAL SPECIFICATIONS Internal measurement 808-1335 808-1336 808-1337 808-1338 808-1339 Max. Capacity C Ø0.8-1.3 Ø1.3-2.5 Ø2.5-4.0 Ø4.0-8.0 Ø8.0-12.5 Max. Error µm Repeatability µm Resolution µm Measuring force (Adjustable) 0.1 - 0.6 Weight Data output Bluetooth wireless technology / RS232 / USB...
- Page 14 Bench table PS16 V2 Goutte DESCRIPTION SMART • Measuring bench similar to the PS16 V2 bench but equipped with a table and anvils set specially designed to mea- sure small pivots (called drops in the watch industry) on watch plates. •...
- Page 15 Bench table PS16 V2 Goutte DIMENSIONAL DRAWINGS SMART TECHNICAL SPECIFICATIONS External measurement 808-5213 808-5413 Max. Capacity C Quick clearance Measuring range E Resolution µm Max. Error µm Repeatability µm Table dimensions (lxL) 58x70 92x70 Measuring force (Adjustable) 0.1 - 0.6 Weight Output data Bluetooth...
- Page 16 808-2197 Lapping device • Device for lapping the anvils on the PS15 BH, PS16 V2 and PS17 measuring benches, enabling perfect parallelism of the anvils for greater measuring accuracy. • Set consisting of a movable element with linear guide and a motorised rotary drive system for the honing stone •...
- Page 17 Bench table PS16 V2 APPLICATIONS Table and anvils for internal measurement in Internal measurement in 2 – points with External measurement with anvils Ø 6.5 and auto-centering of the part on LVS 50 XYZ table 3 - points 1.3 - 2.5 mm Table and anvils for internal measurement in Table with adjustable plate (height).
- Page 18 Bench table PS17 VS DESCRIPTION • Horizontal precision bench for measuring small external dimensions similar to the PS15 bench, but with a tailstock. • Can be equipped with either a digital digital indicator or a Sylvac measuring probe. • Robust cast iron construction •...
-
Page 19: Dimensional Drawing
Bench table PS17 VS DIMENSIONAL DRAWING TECHNICAL SPECIFICATIONS 908-1242 Type Measuring system at choice • Tailstock adjustable in Z +1.75 mm Measurement capacity C Measuring scale Adjustable measuring force 0.2 - 1.0 Weight • Clamping anvils Ø 1.5 mm • Compatibility with Cary •... - Page 20 • Delivered with carbide anvils 0.7mm with 90°V for the measure of distance width • Accurate micrometer screw for pre-positioning • Compatibility with Sylvac anvils (Ø1.5mm) and Cary type anvils • Several accessories available Fixation Ø8mm Measuring anvils Cary 0.7mm with Vé...
- Page 21 Bench table PS17 Entre-portée DIMENSIONAL DRAWINGS TECHNICAL SPECIFICATIONS 908-1244 Type Measuring system at choice • Tailstock adjustable in Z +1.75 mm Measurement capacity C 0 - 37 Measurement scale 0 - 10 Measurement force Working temperature (storage) °C 5 - 40 (-10 - 60) Weight •...
- Page 22 Lapping device (3 stones and lapping liquid included) Lapping device • Device for lapping the anvils on the PS15 BH, PS16 V2 and PS17 measuring benches, enabling perfect parallelism of the anvils for greater measuring accuracy. • Set consisting of a movable element with linear guide and a motorised rotary drive system for the honing stone •...
- Page 23 Bench table PS17 APPLICATIONS STANDARD Measure of a small part on a floating table Multifunctional control station Measure of a distance width with the Z axis adjustable tailstock.
- Page 24 Bench table PS15/PS16/PS17 ANVILS Anvils Ø1.5 Designation N° • • • • 908-2175 Cylindrical anvils TC Ø 1.5 mm Ø 1.5 • • • • Cylindrical anvils TC Ø 2 mm 908-2176 Ø 2 • Cylindrical anvils TC Ø 6.5 mm 908-2177 Ø...
- Page 25 Bench table PS15/PS16/PS17 ANVILS Anvils Cary Designation N° • • 908-2214 Knife-shaped anvils TC 0.10 mm 0.10 • • Knife-shaped anvils TC 0.12 mm 908-2221 0.12 • • Knife-shaped anvils TC 0.14 mm 908-2215 0.14 • • • Knife-shaped anvils TC 0.15 mm 908-2213 0.15...
