LINOVISION IOT-CPANEL Quick Start Manual

Lorawan smart scene panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IOT-CPANEL
LoRaWAN ® Smart Scene Panel
Updated on Oct. 19, 2021

Advertisement

Table of Contents
loading

Related Manuals for LINOVISION IOT-CPANEL

Summary of Contents for LINOVISION IOT-CPANEL

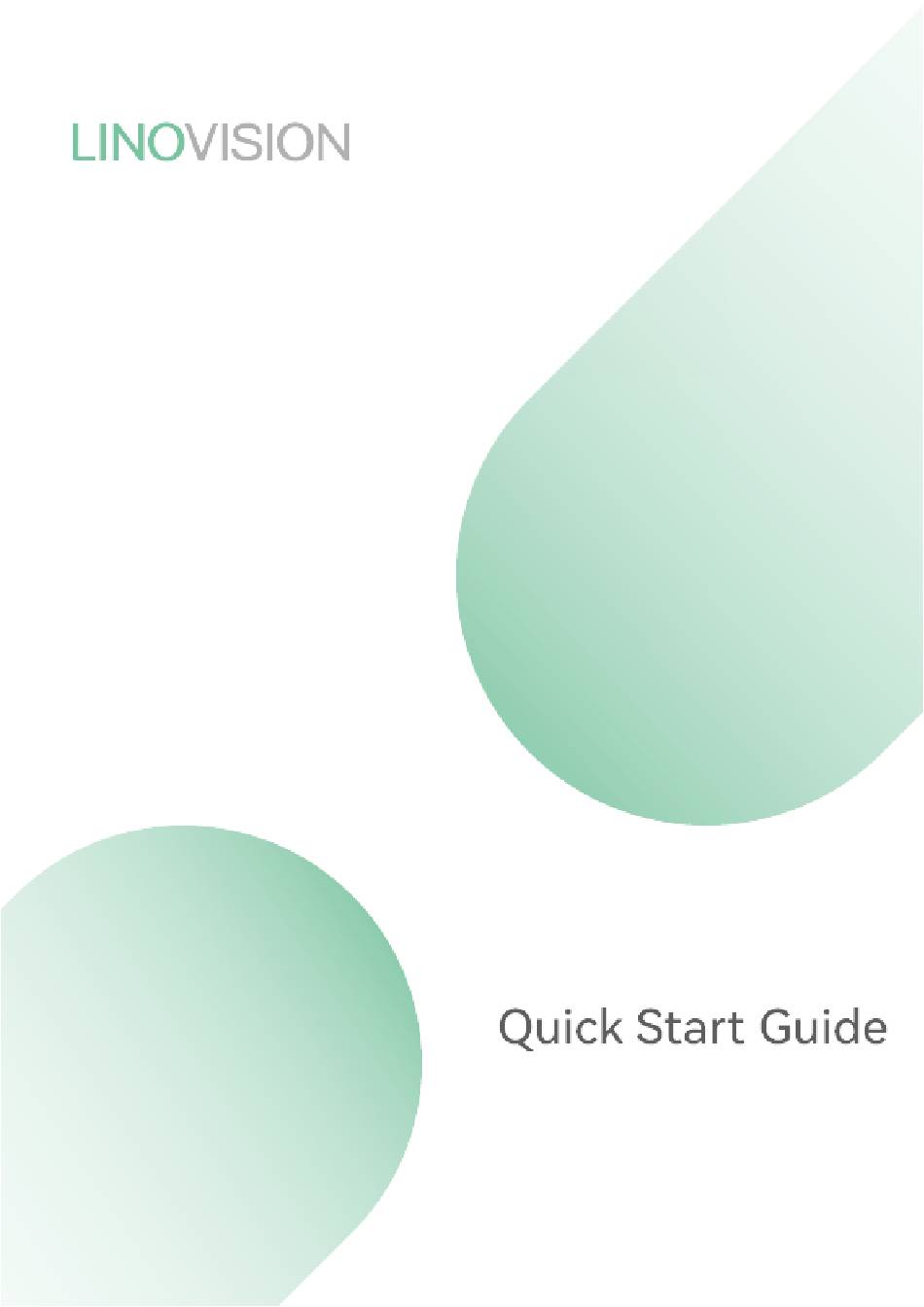

  • Page 1 IOT-CPANEL LoRaWAN ® Smart Scene Panel Updated on Oct. 19, 2021...
  • Page 2 Safety Precautions Linovision will not shoulder responsibility for any loss or damage resulting from not following the instructions of this operating guide. ❖ The device must not be modified in any way. ❖ In order to protect the security of the device, please change device the password when first configuration.

  • Page 3: Table Of Contents

    Contents 1. Product Introduction ............................ 4 1.1Overview .............................. 4 1.2Features ............................... 4 2. HardwareIntroduction..........................4 2.1Packing List ............................4 2.2HardwareOverview ..........................5 2.3Dimensions............................5 2.4LED Patterns............................5 3. OperationGuide ............................. 5 3.1NFC Configuration..........................5 3.2LoRaWAN Settings..........................6 3.3GeneralSettings ..........................9 3.4LoRa D2DSettings ..........................9 3.5E-inkScreenDisplaySettings......................10 3.6Maintenance ............................1 1 3.6.1Upgrade...........................

  • Page 4: Product Introduction

    Without any additional cable, IOT-CPANEL can be easily installed anywhere and control devices via LoRaWAN or Linovision LoRa D2D communication protocol. Besides, itʼs equipped a user-definable E-ink screen to suit different scenes. IOT-CPANEL can be widely used in smart home, smart office, hotel, school, etc.

  • Page 5: Hardwareoverview

    Status Indicator Receive ACK packages from NS Blinks once 3. Operation Guide 3.1 NFC Configuration IOT-CPANEL can be configured via NFC-enabledsmartphone. 1. Open the enclosure of the device, pull out the inside battery insulating sheets to power on the device.

  • Page 6: Lorawan Settings

    1) Ensure the position of smartphone NFC area and itʼs recommended to take off phone case. 2) If the smartphone fails to read/write configurations via NFC, move the phone away and back to try again. 3) IOT-CPANEL can also be configured by ToolBox software via dedicated NFC reader provided by Linovision IoT. 3.2 LoRaWAN Settings ®...
  • Page 7 Parameters Description Device EUI Unique ID of the device which can also be found on the label. App EUI Default App EUI is 24E124C0002A0001. Application Port The port is used for sending and receiving data, the default port is 85. J oin Type OTAA and ABP modes are available.
  • Page 8 1) Please contact sales representativefor device EUI list if there are many units. 2) Please contact sales representative if you need random App keys before purchase. 3) Select OTAA mode if you use Linovision IoT Cloud to manage devices. 4) Only OTAA mode supports rejoin mode.

  • Page 9: Generalsettings

    ® among Linovision LoRaWAN devices without gateway. When the LoRa D2D setting is enabled, IOT-CPANEL can work as a LoRa D2D controller for sending control commands to trigger LoRa D2Dagent devices. 1. Enable LoRa D2Dfeature. 2. Define a unique LoRa D2D key that is the same as LoRa D2D agent devices, then...

  • Page 10: E-Inkscreendisplaysettings

    (Default LoRa D2D Key: 5572404C696E6B4C6F 52613230313823) 3. Enable one of IOT-CPANEL button mode and configure a 2-bytehexadecimal command (This command is pre-definedin LoRa D2D agent device). When you press this button, IOT- CPANEL will send the control command to correspondingLoRa D2Dagent devices.

  • Page 11: Maintenance

    Battery level The device joins the network. The device fails to join the network. 2) IOT-CPANEL do a full-screenrefresh once a week in order to remove ghosting. 3.6 Maintenance 3.6.1 Upgrade 1. Download firmware from Linovision website to your smartphone.

  • Page 12: 2Backup

    2) Only Android version ToolBox supports the upgrade feature. 3.6.2Backup IOT-CPANEL supports configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRa frequency band. 1. Go to “Template” page on the App and save current settings as a template. You can also edit the template file.

  • Page 13: 3Rebootand Reset

    Note: Slide the template item to the left to edit or delete the template. Click the template to edit the configurations. 3.6.3Reboot and Reset Via Hardware: Hold on the buttoninside the device for 3s to reboot, 10s to reset. Via ToolBox App: Go to “Device ->Maintenance”...

  • Page 14: Installation

    4. Installation IOT-CPANEL can be placed on the desktop directly. If it needs to be fixed,please try below installation methods. Fixed by 3M Tapes: Paste 3M tape to the back of the panel, then tear the other side and place it on a flat surface.

  • Page 15: Buttonmessage

    Channel Type Value 0102 (Software (V1.2) version) 5.2Button Message IOT-CPANEL reports battery level according to reportinginterval (1080 mins by default) and button message when buttonis pressed. Channel Type Description 75(Battery Level) UINT8, Unit: % Byte 1: Button Number 34(Button Message) Byte 2-3:Button LoRa D2DCommand, the command is 01-06by default.

  • Page 16: Downlinkcommands

    5.3 Downlink Commands IOT-CPANEL supports downlinkcommands to configure the device. Application port is 85 by default. Note: Since the device type is class A, it only receives downlinks when the device upload battery level or buttonmessage to network server. Channel...
