Air compressor
2HP
size & power
19-23 liters
Light duty and intermittent use
30-42 liters
Light duty and intermittent use
Medium duty and intermittent
57+ liters
use
AIR SYSTEM
Always use clean, dry, regulated, compressed air at 4 to 7bar (60 to 100PSI).
Do not exceed the maximum and minimum pressure. Operating the tool at the wrong pressure (too low or too high) will cause
excessive noise or rapid wear.
It is recommended that a filter-regulator-lubricator be used and be located as close to the tool as possible.
If a filter-regulator-lubricator is not installed, place up to 6 drops of pneumatic tool oil into the air inlet plug before each use.
If a filter-regulator-lubricator is installed, keep the air filter clean. A dirty filter will reduce the air pressure to the tool, which
will cause a reduction in power, efficiency, and general performance.
CAUTION!
Potential hazard that may result in moderate injury or damage to equipment.
Verify that all connections in the air supply system are sealed in order to prevent air from leaking. Failure to comply will result
in moderate injury or damage to equipment.
Read this instruction manual thoroughly or have tool operators read thoroughly before using the tool.
Read all safety guidelines (see section "Safety guidelines") at the beginning of this manual.
Always inspect the air tool prior to each use to
- Ensure proper use of power source.
- Determine whether the tool is in proper working order.
Only use accessories which are specifically designed for use with this tool (see section "technical specifications").
Drain the compressor tank daily. Water in the air supply line will damage the tool.
Clean the air inlet and the filter weekly.
Line pressure should be increased to compensate for unusually long air hoses. The hose diameter should be 1/2"ID.
WARNING!
Potential hazard that will result in serious injury or loss of life.
Do not use the tool if it is not in proper working order.
Do not use oxygen or any other combustible or bottled gas to power this tool.
Do not use this tool in the presence of any flammable liquids or gases.
Keep hose away from heat, oil, and sharp edges. Check hose for wear and tear, and ensure that all connections are secure.
Failure to comply could lead to serious injury or loss of life.
Keep hands and other parts of the body away from the work areas when connecting the air supply. Failure to comply could lead
to serious injury or loss of life.
OPERATING INSTRUCTIONS
Loading and operation
DANGER!
Carefully read all instructions provided in this manual and understand them thoroughly before using the tool.
Do not use Impact wrench accessories other than those that are specifically designed for use with the Air-powered impact
wrench. Failure to comply will result in serious injury or loss of life.
Verify that the air supply is clean before operating the Air powered impact wrench.

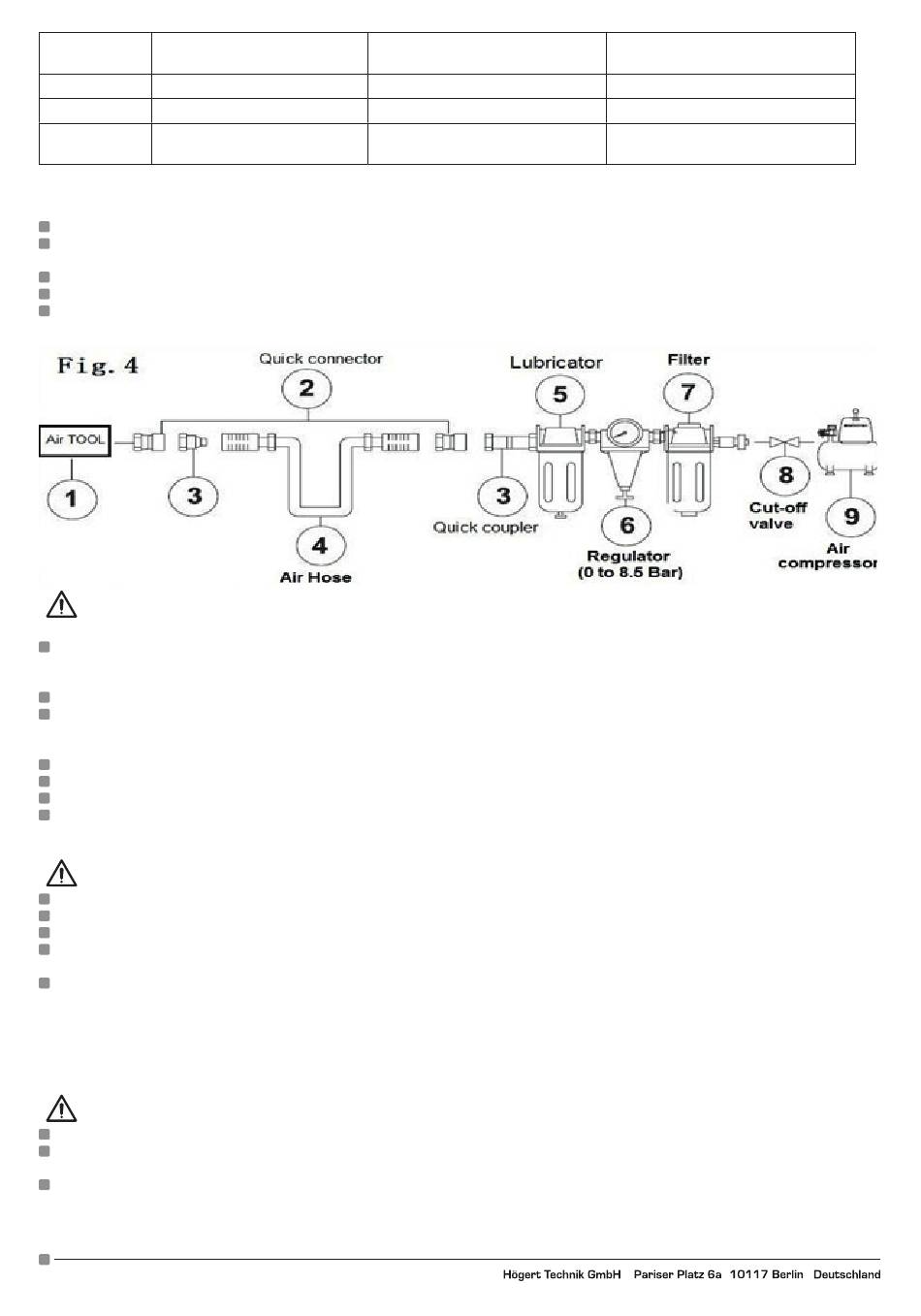

1. Plug in compressor, turn it on set the pressure regulator to 90psi, attach one end of the air hose to the compressor and the other end
of the air hose (1) to the tool (2) . Use plumber's tape to avoid air leak ( see section" Technical specifications") (fig A).
20
2-1/2 HP
Light duty and intermittent use
Medium duty and intermittent use Heavy duty and continuous use
Heavy duty and continuous use
