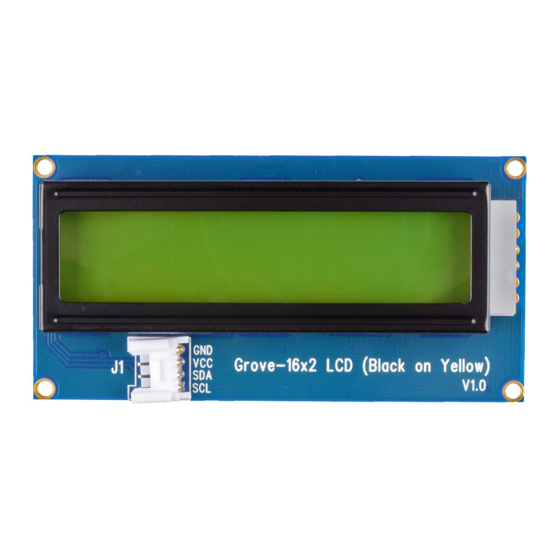

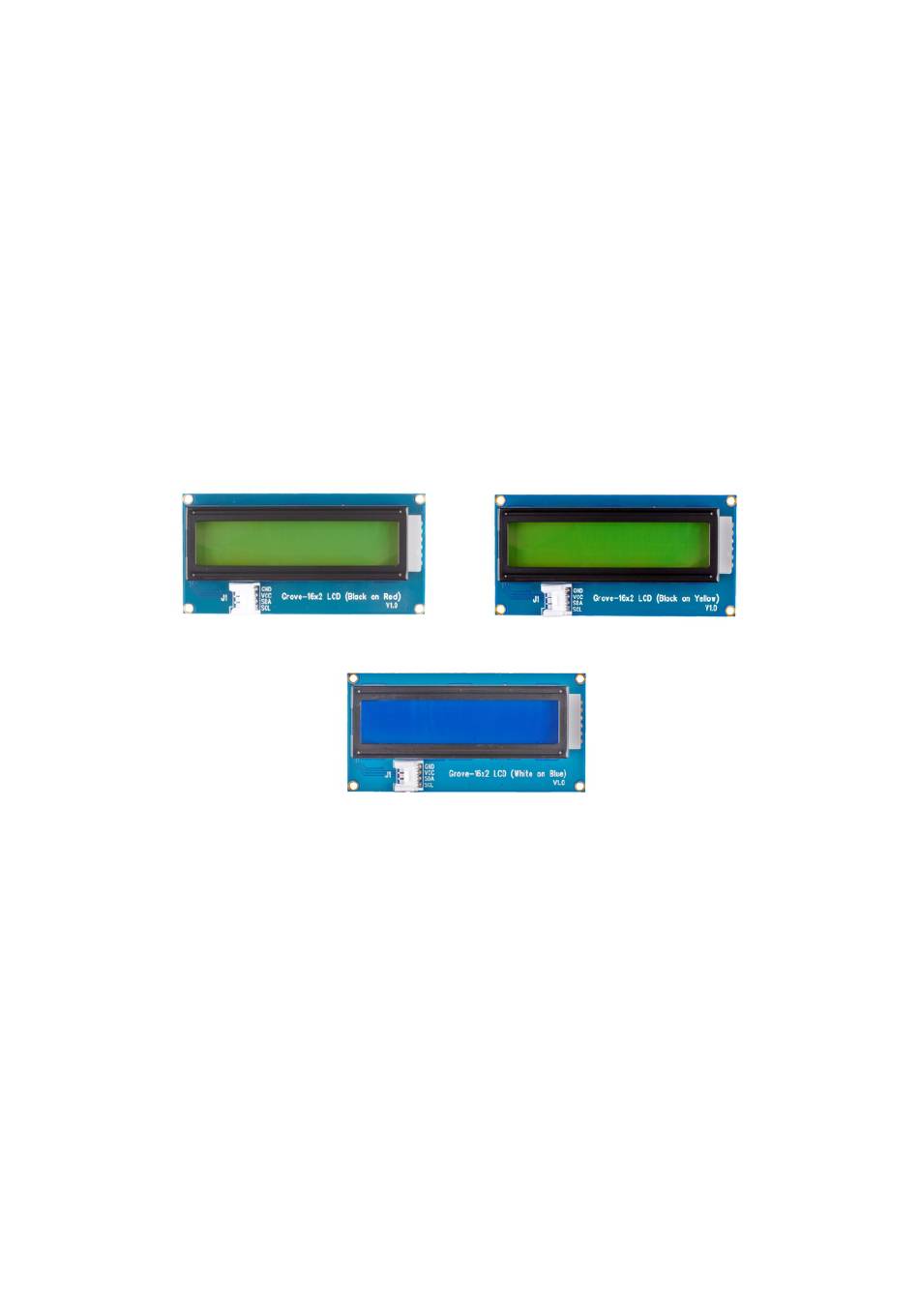

Grove - 16x2 LCD
Grove - 16 x 2 LCD is a perfect I2C LCD display for Arduino and
Raspberry Pi with high contrast and easy deployment. 16x2 means
two lines and each line has 16 columns, 32 characters in total. With
the help of Grove I2C connector, only 2 signal pins and 2 power pins
are needed. You don't even need to care about how to connect
these pins. Just plug it into the I2C interface on Seeeduino or
Arduino/Raspberry Pi+baseshield via the Grove cable. There won't
be complicated wiring, soldering, worrying about burning the LCD
caused by the wrong current limiting resistor.
