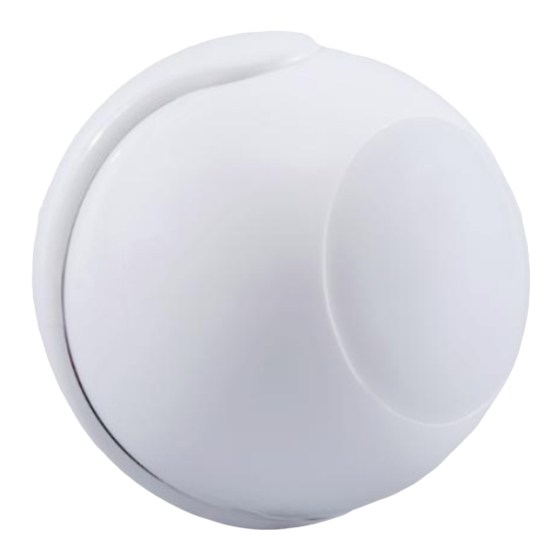

The Motion Sensor is a universal Z-Wave multi-sensor Along with detecting motion the

device measures the temperature and light intensity. The sensor has a built-in accelerometer to

detect any tampering of the device. The Motion Sensor is battery powered device and designed to

be installed quickly and easily on any surface. The LED indicator signals motion, temperature

level, operating mode and can be used to see if device is within the Z-Wave network. The motion

sensor can be used for lighting scenes and security monitoring systems.



Compatible with any Z-Wave network controller



The Motion Sensor can detect motion with a built-in accelerometer



Measure the temperature and light intensity

HIOTH TECHNOLOGY CO.,LTD.

HIOTH

MOTION SENSOR

Introduction

User Manual

CT-EDZW4006-FBR

Motion Sensor

Table of Contents

Do you have a question about the CT-EDZW4006-FBR and is the answer not in the manual?

Page 1 Technical Information  Compatible with any Z-Wave network controller  The Motion Sensor can detect motion with a built-in accelerometer  Measure the temperature and light intensity HIOTH TECHNOLOGY CO.,LTD.
Page 2 Range：up to 50m outdoors, up to 30m indoors (depending on the building materials used)  Dimension：45mm (Diameter) Operation As shown in figure 1, there is a B-Button on the surface of the Motion Sensor, which is used to carry out inclusion, exclusion or reset. HIOTH TECHNOLOGY CO.,LTD.
Page 3 If the device can still be displayed (network exclusion failed), repeat steps 2-4. NOTE: If the device is online, directly perform steps 1-5, if the device is offline, need interruption of the device power supply first, and then perform step 1-5. ROLLER SHUTTER RESET HIOTH TECHNOLOGY CO.,LTD.
Page 4 After the decision, use the holder as a reference, to mark the position of the lock screw. Using the drill to drill a screw hole in the wall or other suitable position, then push the enclosed plastic gecko into the hole, lastly fix the holder. Fig.2 HIOTH TECHNOLOGY CO.,LTD.
Page 5 Where possible, mount the detector so that the logical path of an intruder would cut across the fan pattern rather than directly towards the detector.  In order to obtain the best results, please put the detector directly facing the entrance. HIOTH TECHNOLOGY CO.,LTD.
