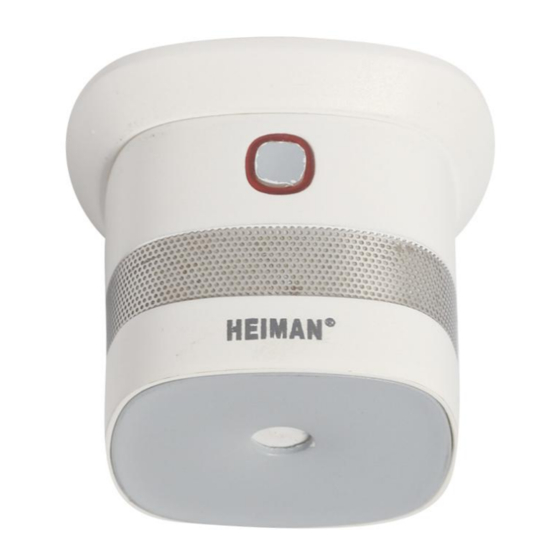

Smart Photoelectric Smoke Sensor
This product is a Smart Photoelectric Smoke Sensor, with ultra-low-power ZigBee wireless
network technology design. It is an warning device, cannot sense gas, heat, or flame, cannot
prevent or put out fire. It is capable of real-time detecting the presence of smoke, detection of
visible particles (smoldering fire) faster than ionization smoke alarms. Red LED flashes rapidly
and detectors sound alarm once detecting smoke fire danger, can alert you and your family timely.
Smoke alarms should be installed in all rooms, living room, storage areas, basements and attics
unit that fire may happen.
Compatible with any
CAP-TECH INTERNATIONAL CO.,LTD.
HIOTH
Introduction
Technical Information
network controller
ZigBee
User Manual
CT-SMZB2007-HM
Smart Photoelectric Smoke Sensor
Advertisement
Table of Contents
Related Manuals for Hioth CT-SMZB2007-HM
Summary of Contents for Hioth CT-SMZB2007-HM

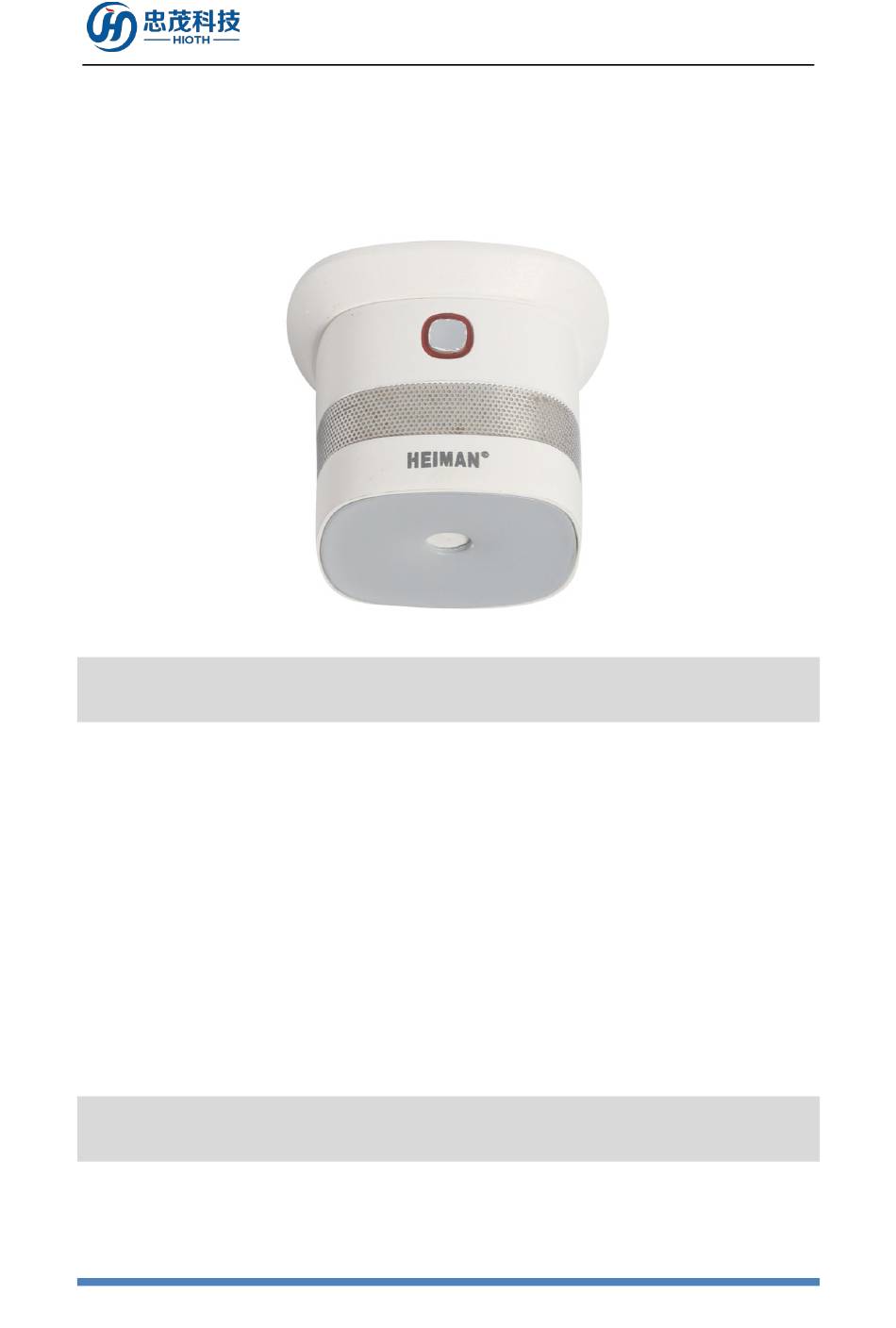

- Page 1 HIOTH User Manual Smart Photoelectric Smoke Sensor CT-SMZB2007-HM Smart Photoelectric Smoke Sensor Introduction This product is a Smart Photoelectric Smoke Sensor, with ultra-low-power ZigBee wireless network technology design. It is an warning device, cannot sense gas, heat, or flame, cannot prevent or put out fire.
- Page 2 HIOTH User Manual cost savings Battery powered and Sensitivity and small size Specifications Radio protocol: ZigBee（IEEE 802.15.4） Operating voltage: DC 3V(CR123A Lithium Battery) Static current: ≤10μA Alarm current: ≤60mA Networking way: ZigBee Ad-Hoc Network ...
- Page 3 HIOTH User Manual indicator LED flash (3 times/second). If the network inclusion success, the network status indicator LED will long on for 2 seconds and then go out. If the network inclusion failure, the network status indicator LED will go out.
- Page 4 HIOTH User Manual Fig.2 Press and hold the test panel Test/Mute button for 3 seconds, as above picture shows, until alarm status (see status table). Testing is recommended to be done at least once a week. Do not use flame for testing. Once the alarm is sure, please pay attention to it.
- Page 5 HIOTH User Manual Installation Instructions After the Smart Photoelectric Smoke Sensor completing the network inclusion, it will enter the detection state. Once the Smart Photoelectric Smoke Sensor detects smoke fire hazard, and smoke concentration reaches the alarm threshold, it will send alarm signal, red LED flashes rapidly and detectors sound alarm, which can alert you and your family timely.
- Page 6 HIOTH User Manual Sloping ceiling mounting Fig.5 Sloping Ceiling Mounting Position If ceiling is sloping, please install the smoke alarm at horizontal distance 90cm away from the ceiling top. Smart Photoelectric Smoke Sensor Installation Anticlockwise rotating the bracket out from the installation base, then remove the battery insulating strip to make detector on power.
- Page 7 HIOTH User Manual Fig.6 Make sure the device has been included into the network normally. Remove the double-sided adhesive membrane on the mounting bracket, and rotating the smoke alarm into the bracket. Fig.7 Safety Notice This device is a wireless communication product; please do not place the device to work in the metal container, in case the signal is blocked.
- Page 8 HIOTH User Manual Please avoid installation in bathrooms and other very humid places, dusty or greasy areas, or very airy place with air conditioning, ceiling fans, etc. Please keep detectors clean, and do not let dust accumulated. It is recommended to clean every 6 months with a household cleaner and a soft brush.
