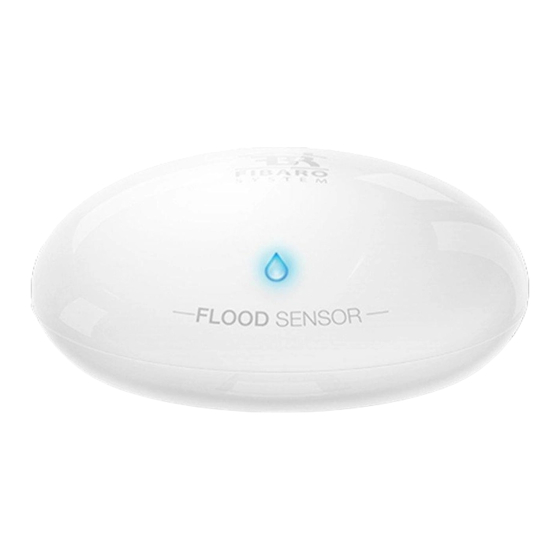

Flood Sensor is a universal, Z-Wave compatible sensor. The device can be hard wire (12 or
24V DC) or battery operated (battery life 2 years). Flood detection is signaled through siren and
LED diode blinking. Additionally, the Flood alarm is sent to the Z-Wave network devices or
additionally to any alarm system controller, through opening a NC (normally closed) contact
terminal.
Moreover the device has a built-in temperature sensor, which can also trigger the alarm once
the specified temperature threshold is exceeded.
Flood Sensor is designed to be placed on the flood or on a wall with a flood sensor probe
extended by connected wire. The device has built in LED indicator and alarm. In addition, the
sensor is equipped with a tilt sensor reporting tilt or movement to the main controller e.g. when
someone take it from its original location. LED diode signals flood, operating mode or the
Z-Wave network communication range. Flood Sensor is sink-proof, which means it drifts on the
water surface and keeps on sending alarm signal in case of substantial inundation of water.
HIOTH TECHNOLOGY CO.,LTD.
HIOTH
FLOOD SENSOR
Introduction
User Manual
CT-SMZW2013-FBR
Flood Sensor
Advertisement
Table of Contents
Related Manuals for Hioth CT-SMZW2013-FBR
Summary of Contents for Hioth CT-SMZW2013-FBR
- Page 1 LED diode signals flood, operating mode or the Z-Wave network communication range. Flood Sensor is sink-proof, which means it drifts on the water surface and keeps on sending alarm signal in case of substantial inundation of water. HIOTH TECHNOLOGY CO.,LTD.
- Page 2 Range：up to 50m outdoors, up to 30m indoors (depending on the building materials used) Operational Temperature: 0℃-40℃ Measured Temperature: -20℃-100℃ Temperature measurement accuracy: 0.5 degrees Celsius (within 0 to 40 ℃) Dimension：72mm x28mm Operational temperature in VDC powering mode: -20-70℃ HIOTH TECHNOLOGY CO.,LTD.
- Page 3 6. Place sensor onto a surface prone to flooding. All three electrodes underneath the device should evenly touch the surface. 7. Include the module into Z-Wave network(If the module is already include in the Z-Wave network, wake it up by triple clicking the TMP) . Fig.1- Power adapter connection HIOTH TECHNOLOGY CO.,LTD.
- Page 4 Exclude a sensor from the Z-Wave network. Disconnect the battery Install the constant power connecting terminal, observing the Fig.1 Connect the constant current power to the terminal (12/24VDC) to +12 and GND terminals (Fig.1) Include Flood Sensor into the Z-Wave network. HIOTH TECHNOLOGY CO.,LTD.
- Page 5 Make sure the device is connected to the power supply. Remove the device on the APP, then click "finish". Triple click the TMP in 1.5 seconds. Please go to the device list interface, and refresh the device list, the device will not be displayed. HIOTH TECHNOLOGY CO.,LTD.
- Page 6 Keep the device away from acid-base and other corrosive solids, liquids, gases, to avoid damage. Avoid overexertion during operation, to protect device from mechanical damage. Read all instructions and documentation and save for future reference. HIOTH TECHNOLOGY CO.,LTD.
