Hioth CT-SMEA2004-PT User Manual

Solar powered occupancy sensor

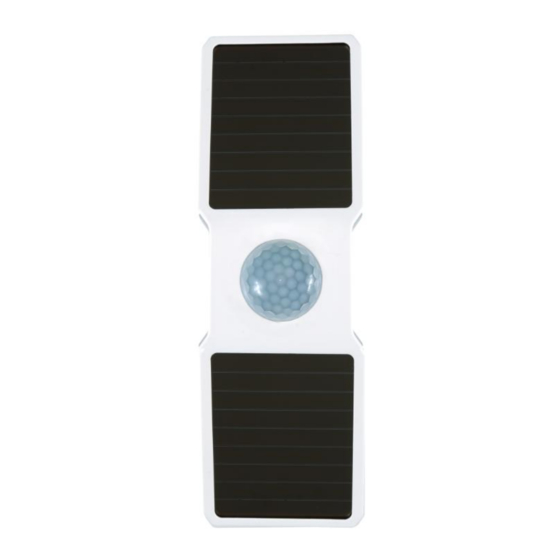

Solar Powered Occupancy Sensor

In recent years, with the rapid development of smart home system, a wide variety of human

body infrared devices come out in an unending flow, such as some automatic doors in some public

places, etc. Solar Powered Occupancy Sensor module has two characteristics: first, from the point

of view of energy saving, it can be used for indoor lighting and other electrical appliances auto-

matically power on/off, second is used for anti-theft alarm system.

The occupancy sensor with solar powered by indoor light is designed for accurately detecting

HIOTH TECHNOLOGY CO.,LTD.

HIOTH

Introduction

User Manual

CT-SMEA2004-PT/CT-SMEF2004-PT

Solar Powered Occupancy Sensor

Table of Contents

Do you have a question about the CT-SMEA2004-PT and is the answer not in the manual?

Page 1 The occupancy sensor with solar powered by indoor light is designed for accurately detecting HIOTH TECHNOLOGY CO.,LTD.
Page 2 Without external power supply  Easy to install  Long service life Specifications  Radio protocol: EnOcean 868.3MHz  Data rate/Modulation type: CT-SMEA2004-PT 125kbps/ASK CT-SMEF2004-PT 125kbps/FSK  Power supply: Indoor light, or use Li-SOCl2 battery(1/2AA)  Minimum operating light: >50lux ...
Page 3 ID, then click " ". Press the LRN (learn) button in 8 seconds button Fig.1 When prompt a message “Request Access Success”, please go to the device list interface, and refresh the device list, the device will be displayed. HIOTH TECHNOLOGY CO.,LTD.
Page 4 (1/2AA) or connect to 2.5V~24V external power Position the base on the wall or ceiling, gently mark two small points with a pencil. (Figure Fig.2 Fix the base on the selected installation position with the mounting screw. HIOTH TECHNOLOGY CO.,LTD.
Page 5 Keep the device away from acid-base and other corrosive solids, liquids, gases, to avoid damage.  Avoid overexertion during operation, to protect device from mechanical damage.  Pay attention to the using range.  Read all instructions and documentation and save for future reference. HIOTH TECHNOLOGY CO.,LTD.

Ct-smef2004-pt
