Smart combustible gas sensor

Advertisement

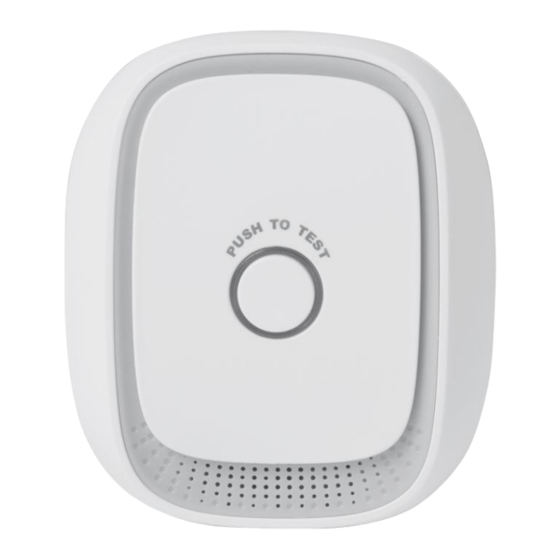

Smart Combustible Gas Sensor
This Smart Combustible Gas Sensor adopts extra low power consumption ZigBee wireless module.
Used for detecting combustible gas leakage and preventing danger caused by gas leakage. ZigBee
repeater, extend wireless transmission distance. Detector adopts high stability semi-conductor gas
sensor, with high stability, small sensitivity drift and many other features. Detector alarms white
gas densities in air exceed alarm level. It is applicable for kitchen or possible gas leaking indoor
area.
 Compatible with any
 Easy to install, without any wiring
HIOTH TECHNOLOGY CO.,LTD.
HIOTH

Introduction

Technical Information

network controller
ZigBee
User Manual
CT-SMZB2003-HM
Smart Combustible Gas Sensor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT-SMZB2003-HM and is the answer not in the manual?

Questions and answers

Summary of Contents for Hioth CT-SMZB2003-HM

  • Page 1 Detector alarms white gas densities in air exceed alarm level. It is applicable for kitchen or possible gas leaking indoor area. Technical Information  Compatible with any network controller ZigBee  Easy to install, without any wiring HIOTH TECHNOLOGY CO.,LTD.
  • Page 2 (1) If the Smart Combustible Gas Sensor has not been included into the network, short press the Reset button to enter the network inclusion condition, at this time the network status indicator LED flash (3 times/second). If the network inclusion success, the network status HIOTH TECHNOLOGY CO.,LTD.
  • Page 3 Test button of this detector is used for testing whether LED indicator and buzzer can work properly. When press test button, detector’s red LED and yellow LED flashing alternately, buzzer alarming.  Network Indicator ZIGBEE NETWORK INCLUSION Insert the gas detector into socket. HIOTH TECHNOLOGY CO.,LTD.
  • Page 4 Please do not test gas when detector warming up. Fig.3 Keep pressing the Reset button for 2 seconds until see green LED blinking fast (Refer to the above steps). HIOTH TECHNOLOGY CO.,LTD.
  • Page 5 In order to ensure the detection effect, this product should be placed in a good permeability area, do not install it at positions of rain and snow. HIOTH TECHNOLOGY CO.,LTD.
  • Page 6  The working temperature is -10°C to +50°C.  Shell surface has a slight fever while working is a normal phenomenon.  Please dismantle detector while decorating house.  Avoid spraying aerosol around sensor. HIOTH TECHNOLOGY CO.,LTD.
  • Page 7 Please do not use lighter to test detectors in case of any damage to gas sensor.  For your safety, in addition to use detector properly, please be vigilant and enhance safety prevention awareness in daily life. HIOTH TECHNOLOGY CO.,LTD.
