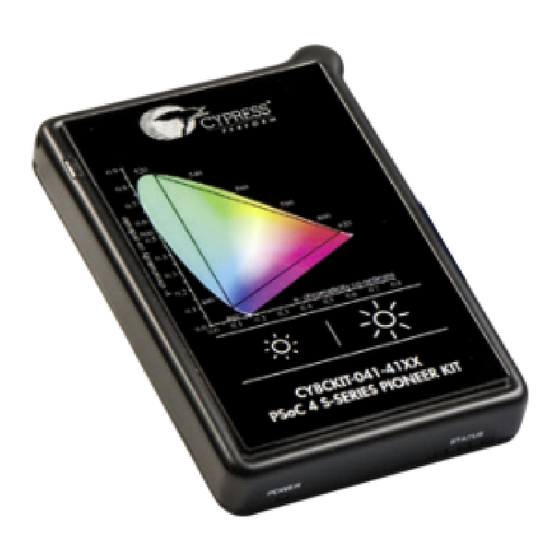

Cypress Semiconductor PSoC 4100S Quick Start Manual

PSoC
• Connect the kit to your PC using the provided
USB cable
Note 1: Ensure the 'PWR SEL' switch at the
rear side is in the 'EXT' position,
before connecting the kit.
Note 2: This demo does not require driver
installation, although it may continue in
the background
CY8CKIT-041-41XX QUICK START GUIDE
4100S PIONEER KIT
®
1
Kit Contents:
1 PSoC 4100S Pioneer Kit
®
2 USB Standard-A to Micro-B cable
3 Water dropper
4 Four press- t connectors
(one 8x2, one 10x1, two 8x1)
5 Four jumper wires (4 inches each)
6 Quick Start Guide (this document)
www.cypress.com/CY8CKIT-041-41XX
• Touch the color gamut triangle to select a
particular color. RGB LED will turn ON with the
selected color.
• Once the nger is removed from the kit, the
RGB LED will turn off after 3 seconds.
2
