Balanced Body Allegro 36395 Replacing

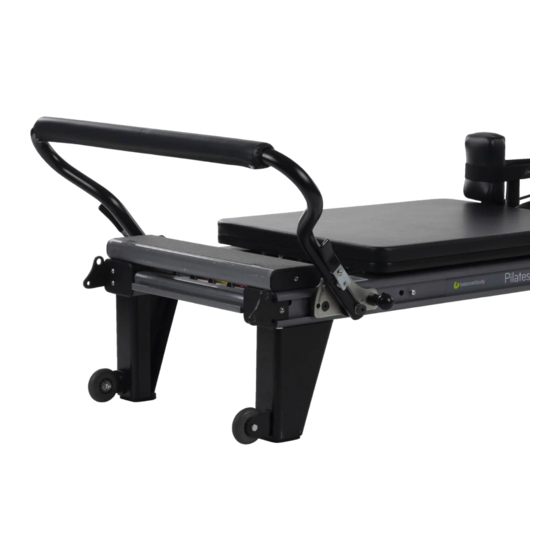

Replacing the Footbar Trunnion on the
Allegro® Reformer
PARTS LIST (INCLUDED):
Description
Trunnion (RH or LH)
5/32" Allen wrench
5/16" Allen wrench
Wrench, Allegro
BEFORE STARTING: If your Allegro has a serial number less than
36395, your Reformer frame will be different than the images
included here. Please follow these steps:
» Follow step one as shown in standard instructions .
» Support the Reformer frame in the middle so that the foot
end of the frame is off the ground.
» Your frame will have one screw on each side of the frame
and four on the end holding the foot end extrusion in place.
Remove these screws and then remove the foot end of the
Reformer frame. If you have legs on your Reformer the two
screws for each foot end leg will have to be removed first.
» Replace the trunnion(s) (See step 5).
» Re-assemble your frame, being sure to replace all of the parts
where they came from.
FOR ALLEGRO REFORMERS WITH SERIAL #
ABOVE 36395
Part Number Qty
N/A 1
1. Using the included tools, remove the twist lock plunger and
GEN9282 1
GEN9050 1
ALL0060 1
2. Remove the transport wheel brackets and wheels by removing
the shoulder bolt and washer from each side of the footbar.
See Figure A. When you remove the second shoulder bolt
the footbar will be free to drop, so have a firm grasp on the
footbar. With each hand, squeeze the footbar plunger levers
and lift the footbar off the trunnions. Set all the parts you
removed aside to be re-installed later.

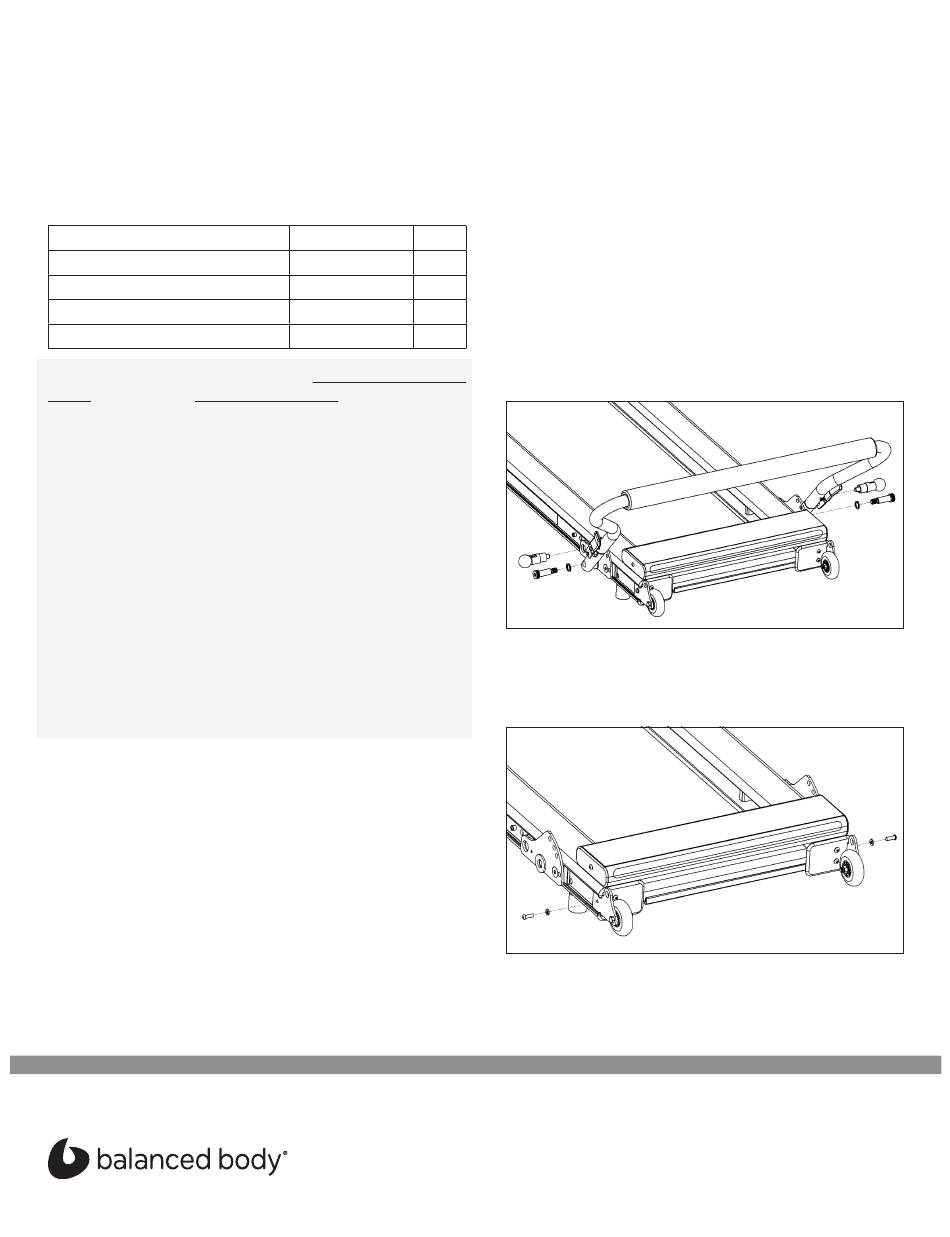

Fig. A
the single screw on each bracket. See Figure B. Set the screws
and washers aside to be re-installed later.
Fig. B
