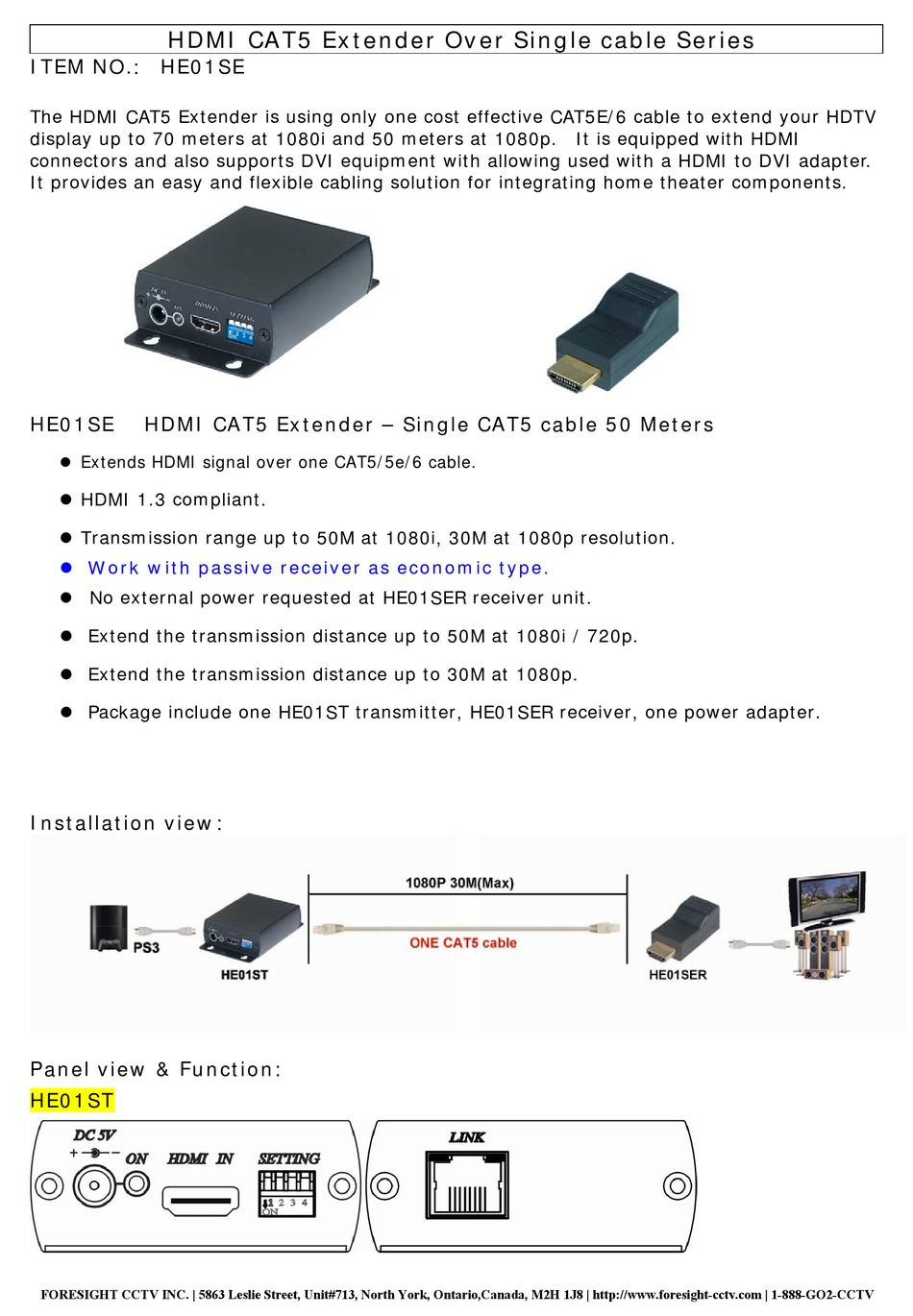

Foresight CCTV HE01SER Quick Start Manual

HDMI CAT5 Extender Over Single cable Series
ITEM NO.: HE01SE
The HDMI CAT5 Extender is using only one cost effective CAT5E/6 cable to extend your HDTV
display up to 70 meters at 1080i and 50 meters at 1080p. It is equipped with HDMI
connectors and also supports DVI equipment with allowing used with a HDMI to DVI adapter.
It provides an easy and flexible cabling solution for integrating home theater components.
HE01SE HDMI CAT5 Extender – Single CAT5 cable 50 Meters
 Extends HDMI signal over one CAT5/5e/6 cable.
 HDMI 1.3 compliant.
 Transmission range up to 50M at 1080i, 30M at 1080p resolution.
 Work with passive receiver as economic type.
 No external power requested at HE01SER receiver unit.
 Extend the transmission distance up to 50M at 1080i / 720p.
 Extend the transmission distance up to 30M at 1080p.
 Package include one HE01ST transmitter, HE01SER receiver, one power adapter.
Installation view:
Panel view & Function:
HE01ST
