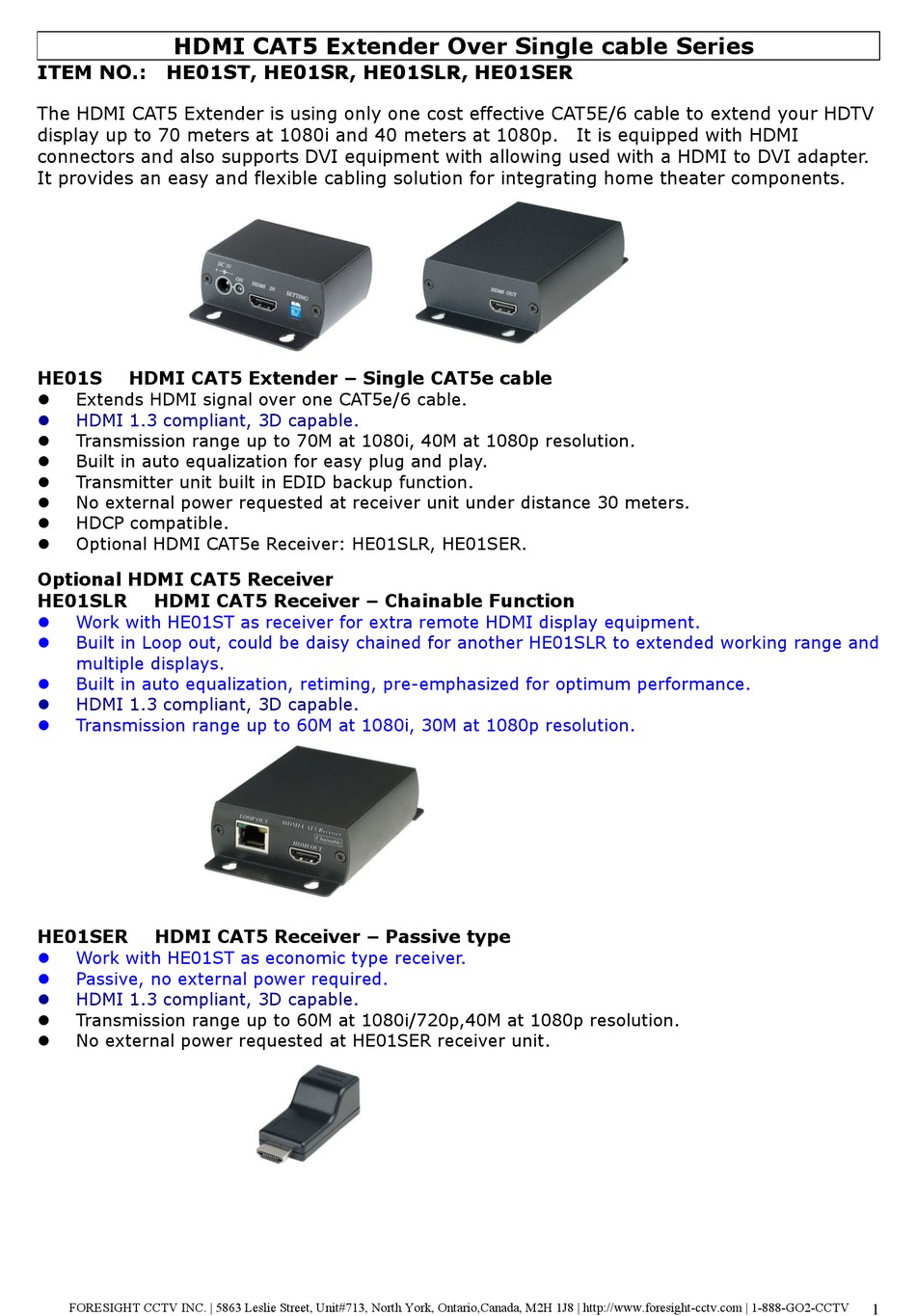

Foresight CCTV HE01ST Installation Manual

HDMI CAT5 Extender Over Single cable Series
ITEM NO.: HE01ST, HE01SR, HE01SLR, HE01SER
The HDMI CAT5 Extender is using only one cost effective CAT5E/6 cable to extend your HDTV
display up to 70 meters at 1080i and 40 meters at 1080p. It is equipped with HDMI
connectors and also supports DVI equipment with allowing used with a HDMI to DVI adapter.
It provides an easy and flexible cabling solution for integrating home theater components.
HE01S HDMI CAT5 Extender – Single CAT5e cable
Extends HDMI signal over one CAT5e/6 cable.

HDMI 1.3 compliant, 3D capable.

Transmission range up to 70M at 1080i, 40M at 1080p resolution.

Built in auto equalization for easy plug and play.

Transmitter unit built in EDID backup function.

No external power requested at receiver unit under distance 30 meters.

HDCP compatible.

Optional HDMI CAT5e Receiver: HE01SLR, HE01SER.

Optional HDMI CAT5 Receiver
HE01SLR HDMI CAT5 Receiver – Chainable Function
Work with HE01ST as receiver for extra remote HDMI display equipment.

Built in Loop out, could be daisy chained for another HE01SLR to extended working range and

multiple displays.
Built in auto equalization, retiming, pre-emphasized for optimum performance.

HDMI 1.3 compliant, 3D capable.

Transmission range up to 60M at 1080i, 30M at 1080p resolution.

HE01SER HDMI CAT5 Receiver – Passive type
Work with HE01ST as economic type receiver.

Passive, no external power required.

HDMI 1.3 compliant, 3D capable.

Transmission range up to 60M at 1080i/720p,40M at 1080p resolution.

No external power requested at HE01SER receiver unit.

