Long Range Twisted Pair Transmission System – Active Series
ITEM NO.: TTA111AV (TTA111AVT + TTA111AVR), TTA111V (TTA111VT + TTA111VR),
TTA414VR 4 channel Active Receiver Hub
Features:
Transmit a full motion color or monochrome video signal and data signal (RS422, RS485), audio (TTA111AV).
Color range 1500 meters, B/W video signal up to 2400 meters.
Three position range switch for gain select on Transmitter TTA111VT, TTA111AVT.
Five position distance range switch on Receiver TTA111AVR.
Easy setting with 2 adjustments for color gain and brightness at TTA111VR receiver.
System is integrated with alarm sensor (PIR, Magnetic, etc.) or data. (Pan, Tilt, Zoom).
Built in transient protection and ground lifting, damaging voltage spike problems are eliminated.
Red LED: Power on / off.
TTA414VR: 4 channel active receiver hub, built in 4 pieces TTA111VR.
Up to multi pieces TTA111AVT, TTP111VT transmitter can work with 4 channel Hub TTA414VR or 1U rack
mounting TPA008, TPA016 receiver panel.
Power supply included.
FCC

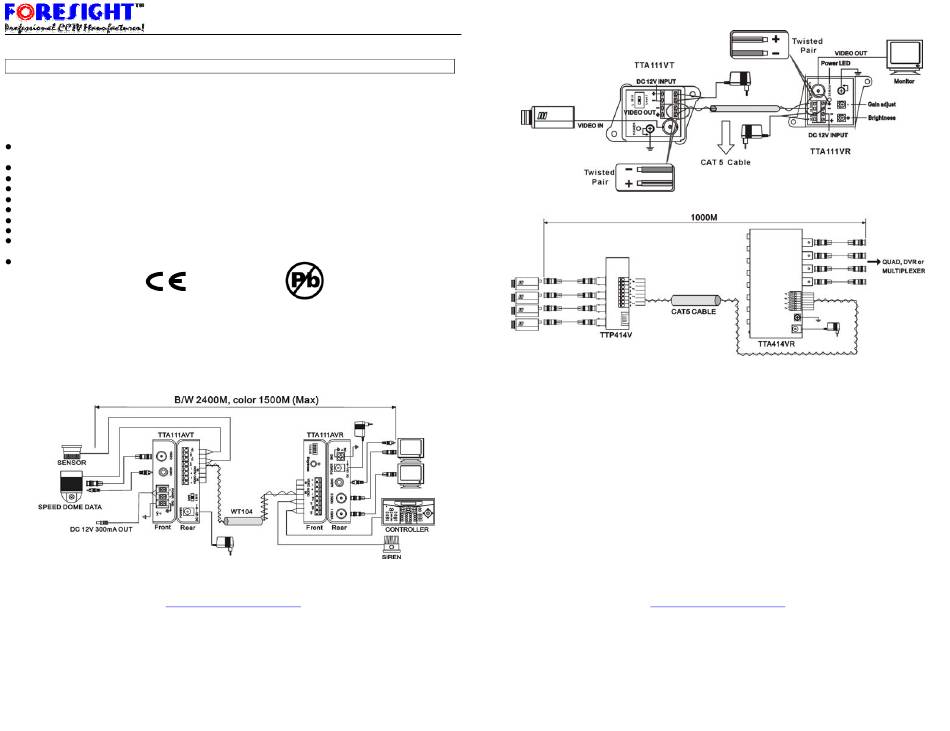

Installation View:
TTA111AV: TTA111AVT, TTA111AVR
http://www.foresight-cctv.com
FORESIGHT CCTV INC.
C-TICK
TTA111V: TTA111VT, TTA111VR
TTA414VR
Use TTP414V 4 channel passive video transceiver as transmitter to work with Active TTA414VR
receiver, transmission range 1Km. Use TTA111VT, TTA111AVT transmitter to work with TTA414VR,
transmission range 1500 meters at color, 2400 meters at B/W.
Troubleshooting:
All transmission distances mentioned above are without connecting image processor
(e.g. Quad, Multiplexer, DVR), the transmission range would be reduce 100-200meters upon different
camera, cable,DVR...ect.
1. These products are designed for long range transmission, the unit built in video amplifier function, If your
transmission range under 100 meters, the video gain function is too big to have snow or wavy, bright
image occurred. Recommend to use them with range at least over 100 meters or alternate passive
video transceivers TTP111 series for short range transmission as well as cost saving.
2. The active receiver has "5 position distance range switch" for different range transmission. Please switch
to appropriate range upon your application to avoid any weak or bad image.
For color camera transmission, color signal would be degradation upon longer range, please alternate
3.
the receiver to TTA111VH model for color gain function.
