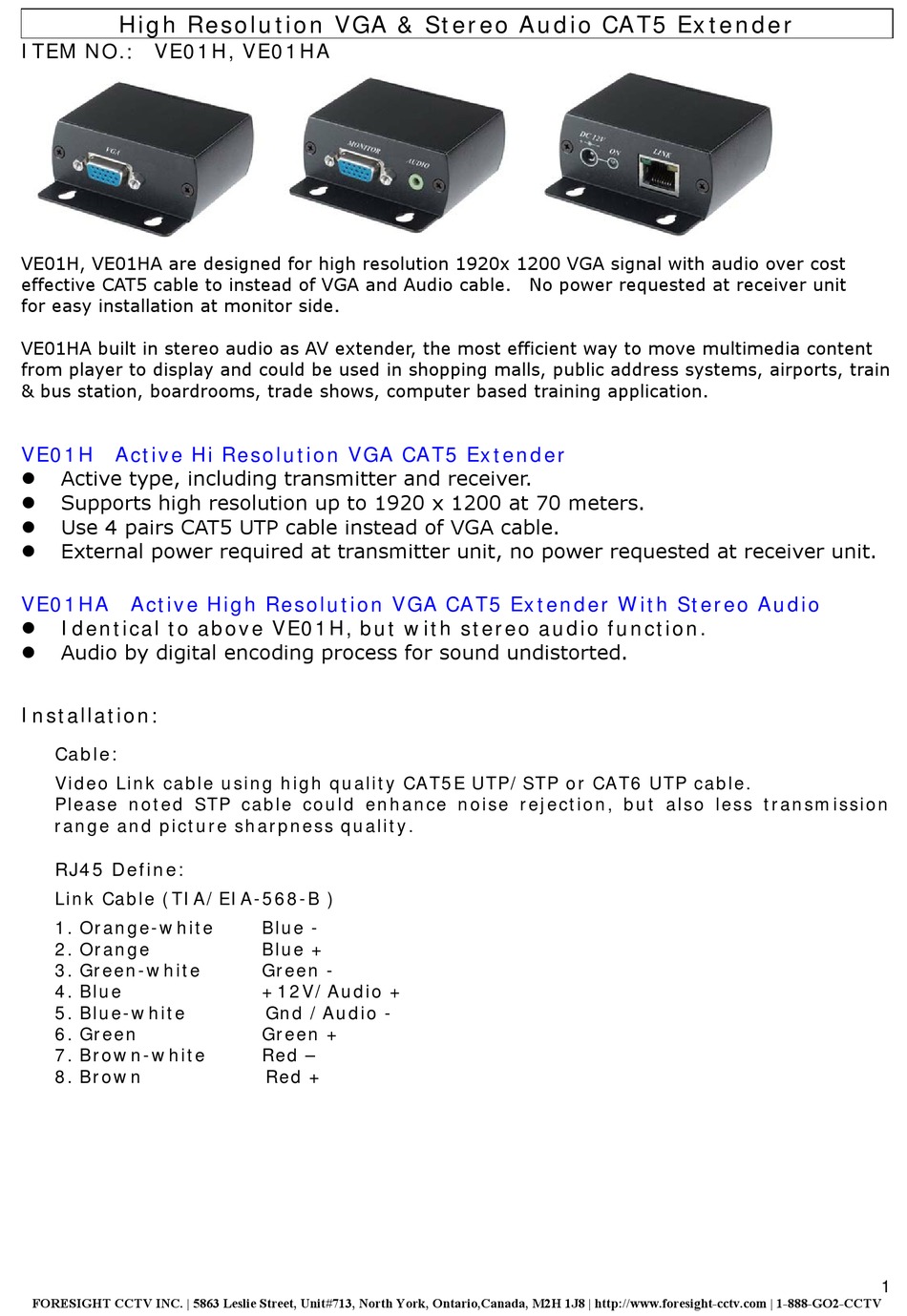

Foresight CCTV VE01H User Manual

High Resolution VGA & Stereo Audio CAT5 Extender
ITEM NO.: VE01H, VE01HA
VE01H, VE01HA are designed for high resolution 1920x 1200 VGA signal with audio over cost
effective CAT5 cable to instead of VGA and Audio cable. No power requested at receiver unit
for easy installation at monitor side.
VE01HA built in stereo audio as AV extender, the most efficient way to move multimedia content
from player to display and could be used in shopping malls, public address systems, airports, train
& bus station, boardrooms, trade shows, computer based training application.
VE01H Active Hi Resolution VGA CAT5 Extender
Active type, including transmitter and receiver.

Supports high resolution up to 1920 x 1200 at 70 meters.

Use 4 pairs CAT5 UTP cable instead of VGA cable.

External power required at transmitter unit, no power requested at receiver unit.

VE01HA Active High Resolution VGA CAT5 Extender With Stereo Audio
Identical to above VE01H, but with stereo audio function.

Audio by digital encoding process for sound undistorted.


Installation:

Cable:
Video Link cable using high quality CAT5E UTP/STP or CAT6 UTP cable.
Please noted STP cable could enhance noise rejection, but also less transmission
range and picture sharpness quality.
RJ45 Define:
Link Cable (TIA/EIA-568-B )
1. Orange-white
2. Orange
3. Green-white
4. Blue
5. Blue-white
6. Green
7. Brown-white
8. Brown
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Blue -
Blue +
Green -
+12V/Audio +
Gnd /Audio -
Green +
Red –
Red +
