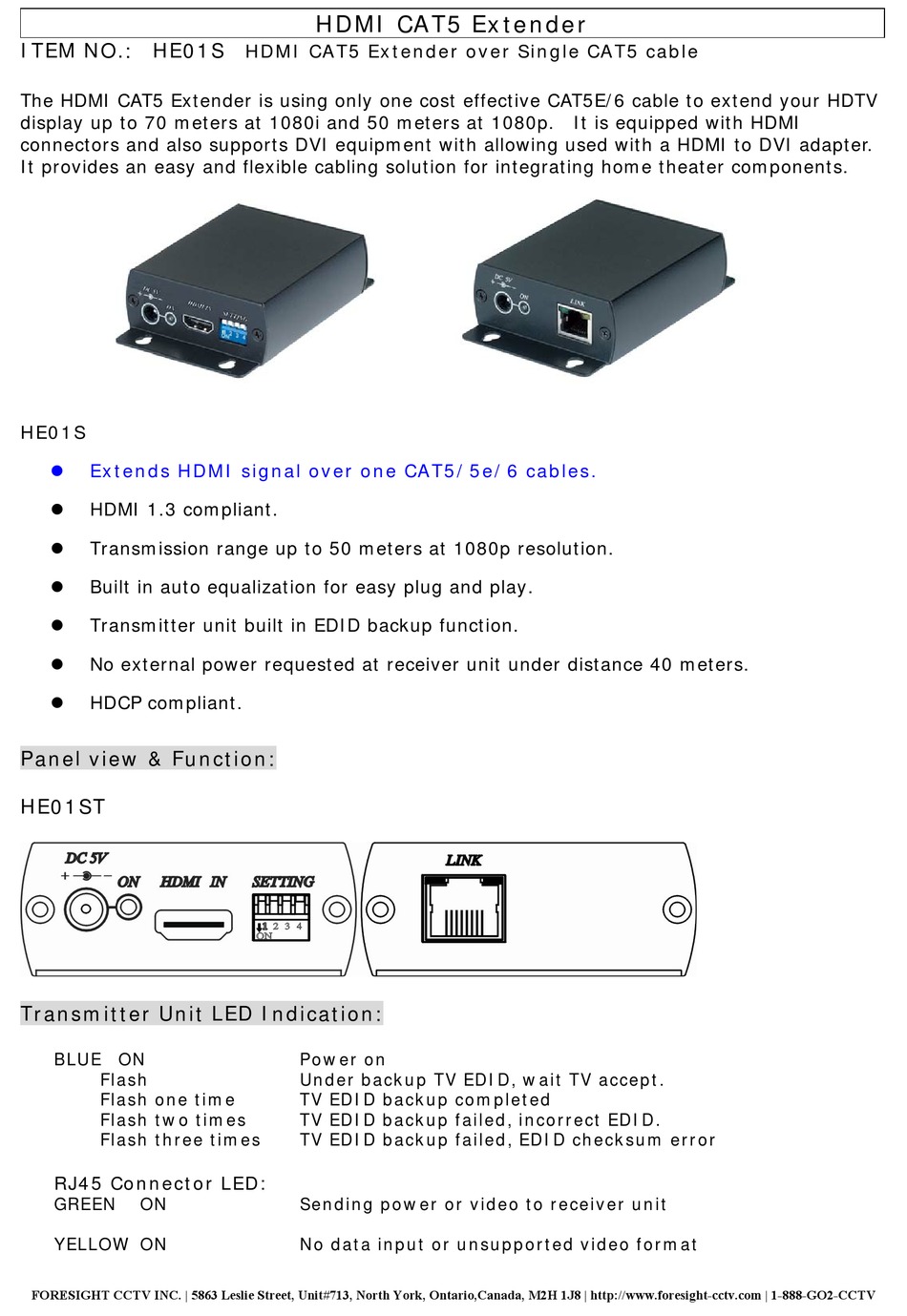

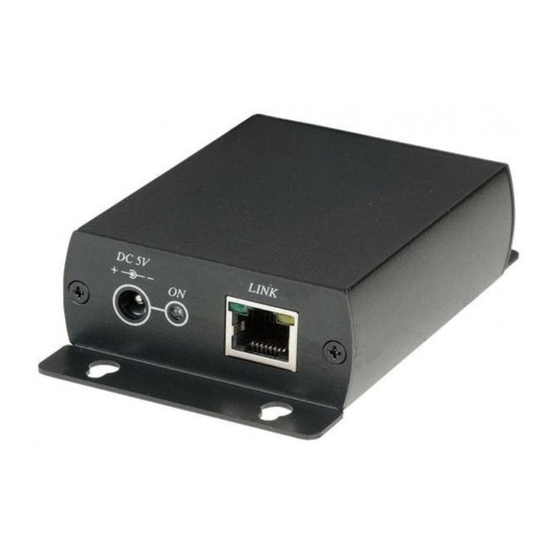

Foresight CCTV HE01ST User Manual

ITEM NO.: HE01S
The HDMI CAT5 Extender is using only one cost effective CAT5E/6 cable to extend your HDTV
display up to 70 meters at 1080i and 50 meters at 1080p. It is equipped with HDMI
connectors and also supports DVI equipment with allowing used with a HDMI to DVI adapter.
It provides an easy and flexible cabling solution for integrating home theater components.
HE01S
Extends HDMI signal over one CAT5/5e/6 cables.

HDMI 1.3 compliant.

Transmission range up to 50 meters at 1080p resolution.

Built in auto equalization for easy plug and play.

Transmitter unit built in EDID backup function.

No external power requested at receiver unit under distance 40 meters.

HDCP compliant.

Panel view & Function:
HE01ST

Transmitter Unit LED Indication:

BLUE ON
Flash
Flash one time
Flash two times
Flash three times
RJ45 Connector LED:
GREEN ON
YELLOW ON
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
HDMI CAT5 Extender
HDMI CAT5 Extender over Single CAT5 cable
Power on
Under backup TV EDID, wait TV accept.
TV EDID backup completed
TV EDID backup failed, incorrect EDID.
TV EDID backup failed, EDID checksum error
Sending power or video to receiver unit
No data input or unsupported video format
