Foresight CCTV HW02 Manual

Wall Plate HDMI & IR Repeater CAT5 Extender
ITEM NO.: HW02 Wall Plate HDMI & IR Repeater CAT5 Extender
HW02 Wall Plate HDMI with IR repeater CAT5 extender is designed to use two low cost CAT5E
Cable to extend HDTV sources from DVD players, Blu-ray Disc player PS3. With extra IR repeater
function for easy and friendly control HDMI sources from the remote site.

Features:

Extends HDMI and IR signal over two CAT5/5e/6 cables.
Transmission range up to 100 meters.
Support high resolution up to 1080p.
Built in auto EQ function, no need to do any adjustment for different range.
Fully HDCP compliant.
HDMI 1.3a compatible, HDCP 1.1, support DDC, EDID, CEC, Hot Plug Detect
Built in IR repeater function, could be control the source devices from remote side.
Receiver unit power could be sending from PCB inside 5V terminal or external 5V DC Jack.
Package includes: transmitter and receiver unit, one external power adapter, IR emitter cable
and IR receiver cable. ( 1.8 meters（6 ft）)

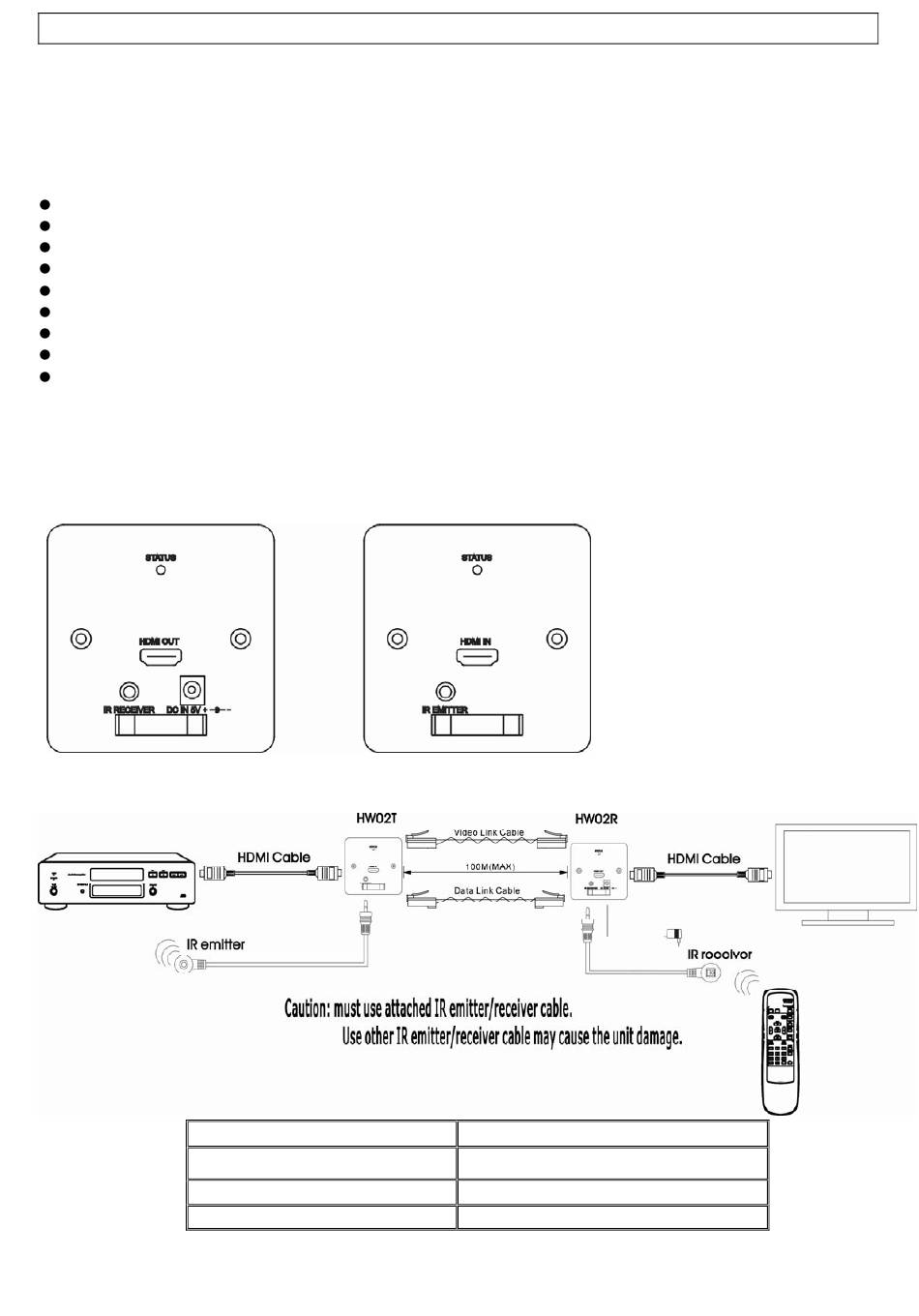

Panel view & Function:
HW02R

Installation view:

480i / 576i / 480p / 576p
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Resolution
720p / 1080i
1080p
HW02T
Transmission Range (Max.)
100M
70M
30M
