1 / 9
MODEL #
CM7416-EK
Questions?
GIVE US A CALL: 1-888-980-5122
MON – FRI 8:30AM – 5:30PM (PT)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Advertisement
Related Manuals for Furniture of America CM7416-EK
Summary of Contents for Furniture of America CM7416-EK

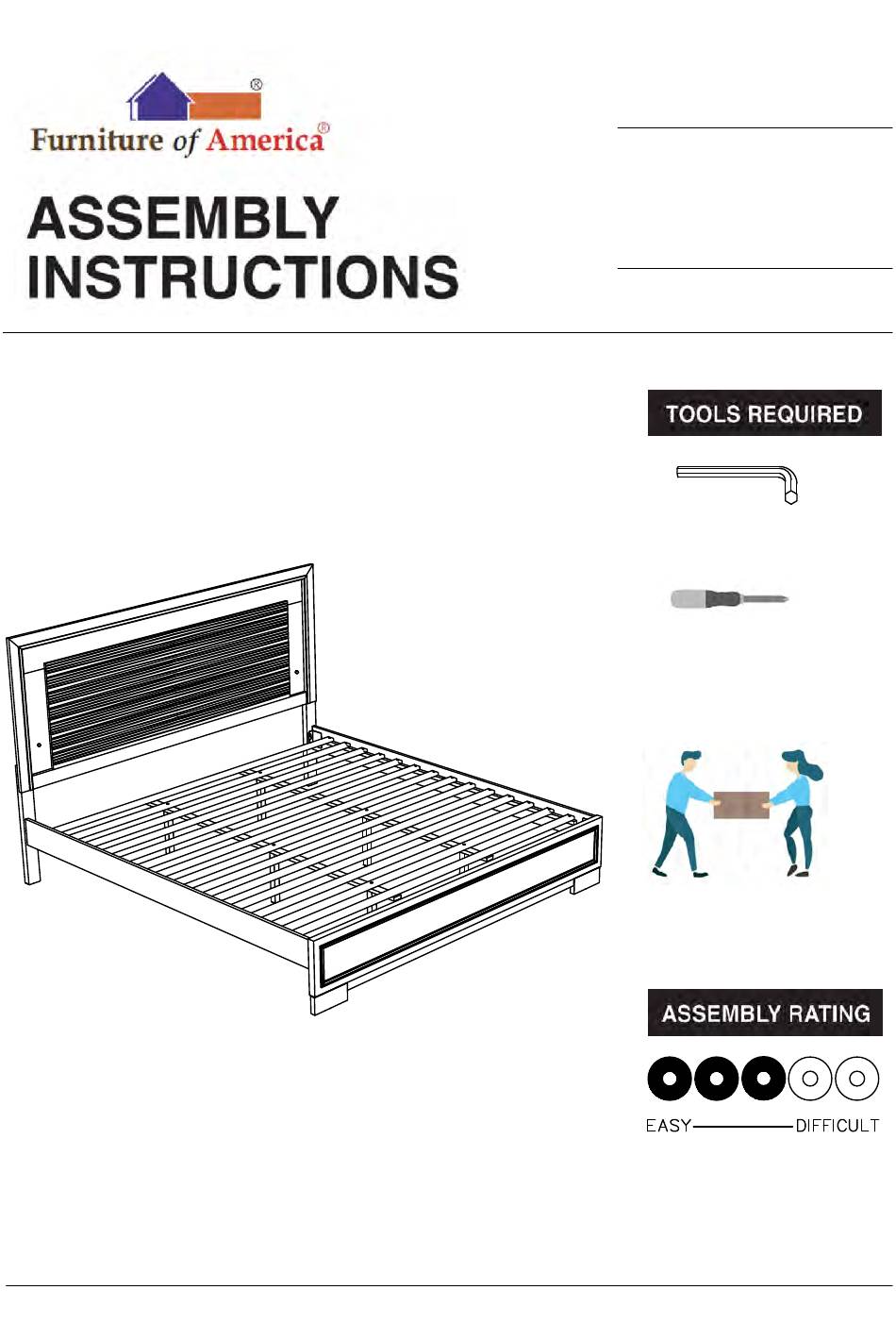

- Page 1 MODEL # CM7416-EK Questions? GIVE US A CALL: 1-888-980-5122 MON – FRI 8:30AM – 5:30PM (PT) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 Furniture America FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 9...

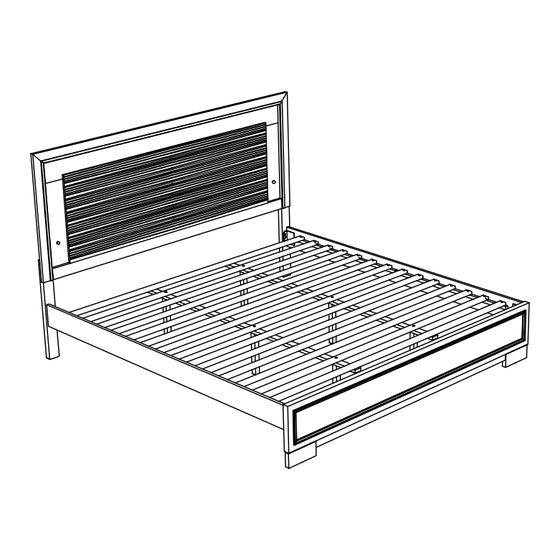

- Page 5 EASTERN KING SIZE BED CM7416-EK #3 2pcs #2 1pc Bed Slat Headboard Footboard Headboard Leg Side Rail -1951 x 45 x 17mm (L/R) Center Slat Bed Slat Support -1820 x 45 x 18mm -270 x 30 x 30mm HARDWARE INSIDE HEADBOARD...
- Page 6 CM7416-EK is packed in 2 cartons Carton Designation Part Hardware King Size #A x 1pc CM7416-K-HBFB Bed HB, FB #B x 6pcs & HB Legs #C x 6pcs #D x 6pcs #E x 1pc #F x 28pcs Eastern CM7416-EK-R King Size...
- Page 7 ASSEMBLY INSTRUCTIONS Align Headboard Leg(#3) to Headboard(#1), then secure by using JCBC (#B),Spring Washer (#C)and Flat Washer (#D) tighten with Allen Key(#A). Part #1 x1pc Part #3 x2pcs Hardware #B x6pcs Hardware #C x6pcs Hardware #D x6pcs Align side rails (#4) to the bolts of the headboard Leg (#3) and footboard (#2).
- Page 8 ASSEMBLY INSTRUCTIONS Part #5 x14pcs Part #6 x2pcs Part #7 x6pcs Hardware #G x6pcs leveler Adjustable Glider Hardware #E x1pc Hardware Align slats #5 evenly to the side rails, #F x28pcs then secure by using screws (#F) Back View To Active Switch on Button 8 / 9...
- Page 9 ASSEMBLY INSTRUCTIONS 9 / 9...
