ISL97671/2/3/4IRZ-EVAL Quick Start Guide
This quick start guide pertains to the
ISL97671/2/3/4IRZ-EVAL Evaluation Board. This board
comes populated with 72 LEDs in a 6P12S configuration
to simplify evaluation and testing. Please install the
Sunlight ISL97670 GUI from Intersil's website, which will
be used to control ISL97671/3/4 parts via I
slave address on the ISL97671, ISL97673 and ISL97674
is hexadecimal 58; see Figure 1. Please refer to
"ISL97671" on page 1, "ISL97672" on page 2,
"ISL97673" on page 2 and "ISL97674" on page 3, for
jumper settings and power-up instructions.
2
FIGURE 2. I
August 3, 2010
AN1581.0
2
C. Note the

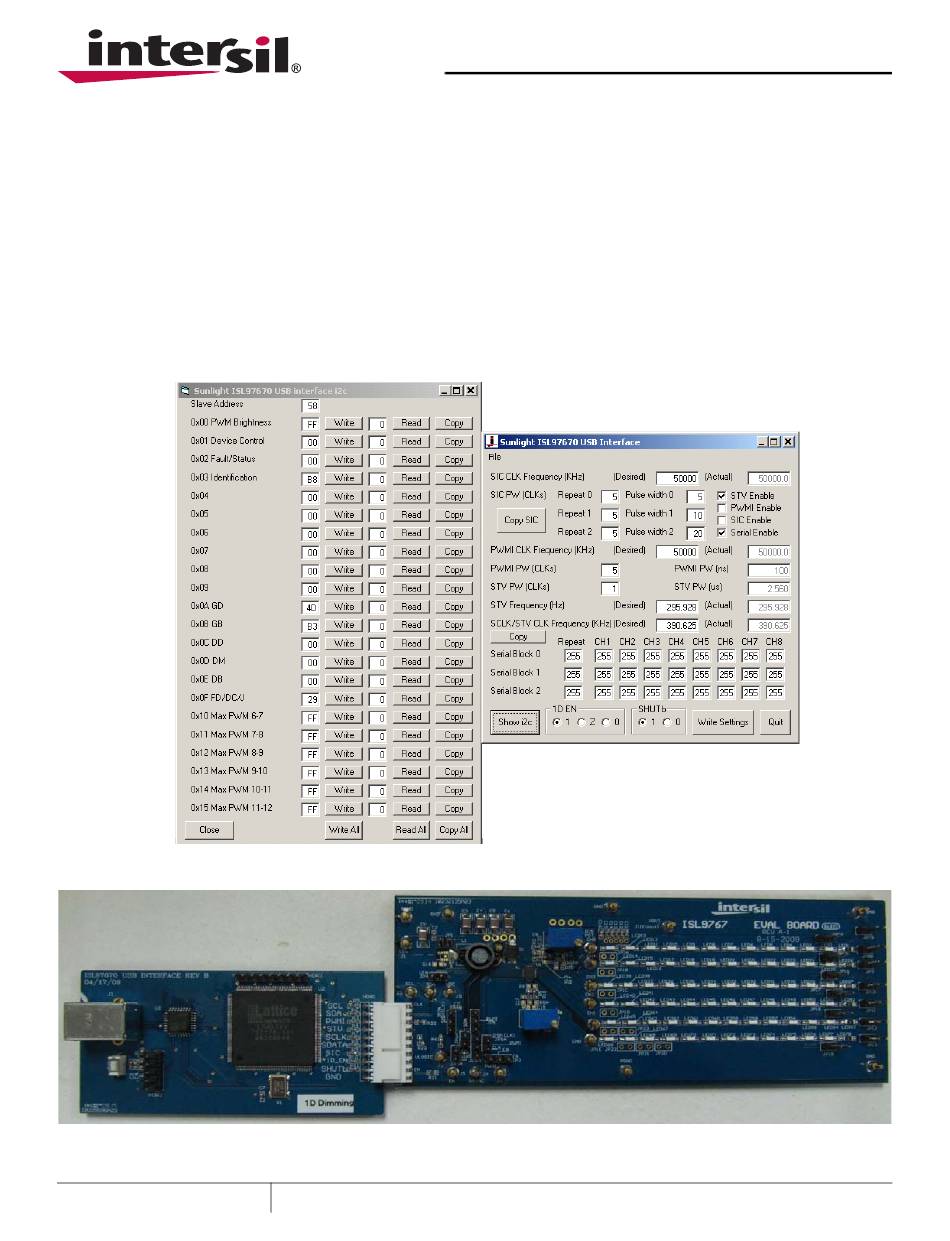

FIGURE 1. EXAMPLE OF GUI INTERFACE
C INTERFACE BOARD CONNECTED TO ISL97671IRZ-EVAL EVALUATION BOARD
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
Application Note 1581
ISL97671
1. Jumpers JP7B, JP8B, JP9, JP10, JP11, JP12 and JP13
should be inserted for LED's in 6P12S configuration.
2. Jumpers in line 1, plus JP14, JP15, JP16, JP17, JP18
and JP19 should be inserted for LED's in 6P10S
configuration.
3. Jumper JP5A, JP3A and JP6A are inserted.
2
4. Connect the I
C interface board to the
ISL97671/2/3/4IRZ-EVAL Evaluation Board as shown
in Figure 2 for I
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 2010. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
2
C control.
