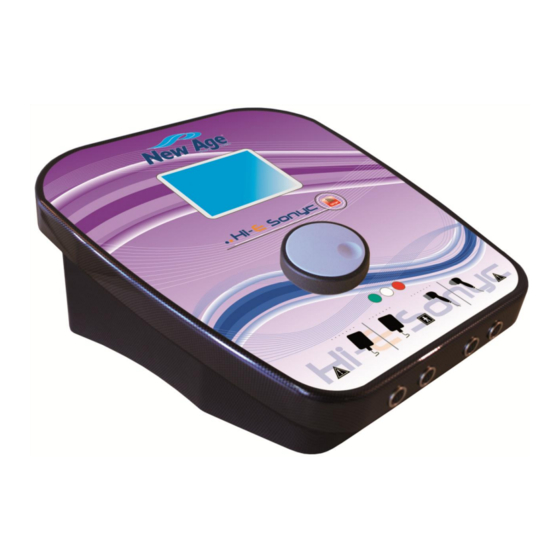

Electrotherapeutic Apparatus
H
I
-
E
S
o
n
y
c
H
I
-
E
S
o
n
y
c
User's manual
For a correct use of the apparatus, please read this manual carefully before use.
After reading it, keep it for future reference.
NEW AGE ITALIA S.R.L.
Via De Brozzi, 3 – 48022 Lugo (RA)
www.newageitalia.it

Advertisement

Table of Contents
loading

Related Manuals for New Age HI-E Sonyc

Summary of Contents for New Age HI-E Sonyc

  • Page 1 Electrotherapeutic Apparatus User’s manual For a correct use of the apparatus, please read this manual carefully before use. After reading it, keep it for future reference. NEW AGE ITALIA S.R.L. Via De Brozzi, 3 – 48022 Lugo (RA) www.newageitalia.it...

  • Page 2: Table Of Contents

    CONTENTS Cap.1 PRECAUTIONS FOR USE .....................5 1.1 Contraindications ....................... 5 1.2 Contraindications for combined therapy ..............5 Cap.2 INTENDED USE ......................6 Cap.3 PRECAUTIONS FOR USE .....................6 3.1 General precautions ....................6 Cap.4 PRECAUTIONS BEFORE USE ..................7 Cap.5 PRECAUTIONS DURING USE ..................8 Cap.6 PRECAUTIONS AFTER USE ..................9 Cap.7 STORAGE CONDITIONS AND MAINTENANCE INTERVALS ...........9 Cap.8 PRECAUTIONS FOR USE ...................
  • Page 3 Cap.16 EMS MODE ......................26 16.1 REQUIREMENTS FOR USE ..................26 16.2 PROCEDURES ......................27 16.3 PARAMETER INTERVALS OF THE EMS MODE ............29 Cap.17 RUSSIAN MODE ( KOTZ ) ..................30 17.1 REQUIREMENTS FOR USE ..................30 17.2 PROCEDURES ......................31 17.3 PARAMETER INTERVALS OF THE RUSSIAN MODE ( KOTZ ) ........
  • Page 4 25.1 REQUIREMENTS FOR USE ..................55 25.2 PROCEDURES ......................56 Cap.26 LIST OF PROGRAMS FOR ELECTROSTIMULATION ........... 57 Cap.27 ULTRASOUND MODE ..................... 59 27.1 REQUIREMENTS FOR USE ..................59 27.2 PROCEDURES ......................60 27.3 PARAMETER INTERVALS OF THE ULTRASOUND MODE ......... 60 Cap.28 LIST OF PROGRAMS FOR ULTRASOUND ..............

  • Page 5: Cap.1 Precautions For Use

    C a p . 1 P R E C A U T I O N S F O R U S E Carefully read and follow the precautions for use exactly as set out, before using the apparatus. The user manual is necessary for the safe operation of the unit. If the apparatus is lent or sold to any third party, make sure that the manual accompanies it.

  • Page 6: Cap.2 Intended Use

    C a p . 2 I N T E N D E D U S E EMS MODE, RUSSIAN (KOTZ), HIGH VOLTAGE, FARADIC 1. Treatment and relaxation of muscle spasms 2. Prevention or relaxation of atrophy from lack of use 3.

  • Page 7: Cap.4 Precautions Before Use

    - Do not install the system near a fire. Doing so could cause an accident or deformation. - Always pay attention to the power, voltage and current (power consumption) - Use a 230V power outlet exclusively. C a p . 4 P R E C A U T I O N S B E F O R E U S E - Do not use this apparatus with an electrocardiograph or other medical devices - Use extreme caution when using this apparatus with other diagnostic devices, since such use could result in incorrect diagnosis.

  • Page 8: Cap.5 Precautions During Use

    C a p . 5 P R E C A U T I O N S D U R I N G U S E General precautions for electrotherapy, ultrasound, and combined therapy. 1-Make sure that the duration and intensity of THE treatment are suitable for the scope of the treatment.

  • Page 9: Cap.6 Precautions After Use

    current value only when the current is pouring into the patient at the maximum value already set. The device show to the user that is not possible to increase the current thanks to a red signal around the intensity indicator. Decreasing is always possible. Precautions for electrotherapy 1- Use only appropriate electrodes.

  • Page 10: Cap.8 Precautions For Use

    C a p . 8 P R E C A U T I O N S F O R U S E Never touch the apparatus with wet hands Avoid heavy vibrations and strong impact. These may cause hidden damage and eventual malfunctions or accidents.

  • Page 11: Cap.10 Specifications

    Maintenance/inspections ITEM DETAILED INSTRUCTION METHOD Aspect and -Check for damages signals -Check that the signals on the LCD screen are readable Visual inspection Operations -Turn on the switch and make sure that the LCD screen is working correctly Check -Check that the unit operates as described in the operation operating manual Accessories...

  • Page 12: Cap.11 Names Of The Parts

    Maximum current emission： 300mA peak（500Ω） Maximum voltage emission： （1）Medium-low frequency:150V±20％ (peak value under 500Ω) （2）Interferential : 50V±20％ (peak value under 500Ω ) Maximum ultrasound intensity: continuous 3.00W/cm2 Size: 370 mm x 440 mm x 200 mm Weight: Approx. 5 KG C a p .

  • Page 13: Cap.12 Preparation

    C a p . 1 2 P R E P A R A T I O N Designate a person that is responsible for this system. This person shall make sure that the apparatus is used according to these operations. 1.

  • Page 14: Taking Care Of The Applicator

    5. Connect the electrode cable to the electrode * insert until the metal part disappears completely 6. Wrap the strips on the area to be treated, then insert the electrode between the strips and the skin. 7. Connect the power cable of the electrode to the main unit into the port on the front of the unit.

  • Page 15: Adhesive Electrode

    1 2 . 3 A d h e s i v e e l e c t r o d e 1. Follow the instructions when setting the system configuration 2. Make sure that the unit is switched off. 3. Insert the connecting pin in the electrode. 4.

  • Page 16: Mcr (Micro-Current) Probe - (Optional)

    1 2 . 4 m c r ( m i c r o - c u r r e n t ) p r o b e - ( o p t i o n a l ) Use the micro-current probe only in micro current mode. Do not use it in any other way.

  • Page 17: Microcurrent Probe With Two Poles (Optional)

    CAUTION When using the micro current mode for the limbs, trunk or joints for long periods of time, use rubber electrodes or self-adhesive electrodes. 1 2 . 5 M i c r o c u r r e n t p r o b e w i t h t w o p o l e s ( o p t i o n a l ) Use the micro-current probe with two poles only in micro current mode.

  • Page 18: Ultrasound Probe (Optional Conical Head)

    1 2 . 6 U l t r a s o u n d p r o b e ( o p t i o n a l c o n i c a l h e a d ) Follow the instructions when setting the system configuration Make sure that the unit is switched off.

  • Page 19: Cap.13 Initial Screens

    C a p . 1 3 I N I T I A L S C R E E N S Start work and Perform settings select therapy Press to change Press to select Press to select the therapy of the the therapy of the therapy of ultrasound...

  • Page 20: Cap.14 Interferential Mode With 4 Poles

    CAUTION Depending on the current and the configured parameters, the machine may automatically limit the current delivered in order to maintain the safety of the patient and of the device. The machine indicates this situation by flashing the actual current value, which in this situation will be red.

  • Page 21: Procedures

    1 4 . 2 P R O C E D U R E S 1. Make sure that the electrodes are placed on the area to be treated. 2. Tap the button for the selection of the therapy to open the sub- window.

  • Page 22: Using The Interferential Mode With 4 Poles

    1 4 . 3 U S I N G T H E I N T E R F E R E N T I A L M O D E W I T H 4 P O L E S With all the sub-windows closed, turn the intensity control of channels 1 and 2.

  • Page 23: Cap.15 Interferential Mode With 2 Poles

    C a p . 1 5 I N T E R F E R E N T I A L M O D E W I T H 2 P O L E S 1 5 . 1 R E Q U I R E M E N T S F O R U S E ELECTRODES Silicone electrode, self-adhesive COMBINED CHANNELS (*2)

  • Page 24: Procedures

    1 5 . 2 P R O C E D U R E S 1. Make sure that the electrodes are placed on the area to be treated. 2. Tap the button for the selection of the therapy to open the sub- window.

  • Page 25: Parameter Intervals Of The Interferential Mode With 2 Poles

    1 5 . 3 P A R A M E T E R I N T E R V A L S O F T H E I N T E R F E R E N T I A L M O D E W I T H 2 P O L E S Power: Constant/Ramp up (sweep) Carrier frequency: 2/4/5 kHz...

  • Page 26: Cap.16 Ems Mode

    C a p . 1 6 E M S M O D E 1 6 . 1 R E Q U I R E M E N T S F O R U S E ELECTRODES Silicone electrode, self-adhesive COMBINED CHANNELS*2 -Independent Operating mode , each channel must be used independently.

  • Page 27: Procedures

    1 6 . 2 P R O C E D U R E S 1. Make sure that the electrodes are placed on the area to be treated. 2. Tap the button for the selection of the therapy to open the sub- window.
  • Page 28 11. Interferential frequency ------ Tap the button for the selection of the interferential frequency to open the sub-window. Set the frequency by using the control knob for parameter/intensity, then tap OK to close the sub-window. window for setting the interferential frequency 12.

  • Page 29: Parameter Intervals Of The Ems Mode

    1 6 . 3 P A R A M E T E R I N T E R V A L S O F T H E E M S M O D E WAVE FORM Power: CH1/CH2, Co-Cont, Alternate Carrier frequency: 2/4/5 kHz Interferential frequency: from 1 to 250 Hz Rise time: from 0 to 3 sec (increment by 0.5 sec)

  • Page 30: Cap.17 Russian Mode ( Kotz )

    C a p . 1 7 R U S S I A N M O D E ( K O T Z ) 1 7 . 1 R E Q U I R E M E N T S F O R U S E ELECTRODES Silicone electrode, self-adhesive COMBINED CHANNELS*2 -Independent Operating mode, each channel must be used...

  • Page 31: Procedures

    1 7 . 2 P R O C E D U R E S 1. Make sure that the electrodes are placed on the area to be treated. 2. Tap the button for the selection of the therapy to open the sub- window.

  • Page 32: Parameter Intervals Of The Russian Mode ( Kotz )

    12. Time setting ------ Tap the button for setting the time to open the sub-window. Set the time with the knob for selecting the parameter/intensity. Tap OK to close the sub-window. 13. With all the sub-windows closed, turn the intensity control of the selected channel on the screen.

  • Page 33: Cap.18 High Voltage (Hi-V) Mode

    C a p . 1 8 H I G H V O L T A G E ( H I - V ) M O D E 1 8 . 1 R E Q U I R E M E N T S F O R U S E ELECTRODES Silicone electrode, self-adhesive COMBINED CHANNELS*2 -Independent Operating mode, each channel must be used...

  • Page 34: Procedures

    1 8 . 2 P R O C E D U R E S 1. Make sure that the electrodes are placed on the area to be treated. 2. Tap the button for the selection of the therapy to open the sub- window.
  • Page 35 10. In the high voltage mode, to prevent a sudden increase or decrease, there must be a small delay after which the amplitude is changed. 11. Time On/Off ------ Tap On/Off to open the sub-window. 12. Tap to set the time, rise time, hold time, fall time, time off, time or number of induced spasms to flash the current set value.

  • Page 36: Parameter Intervals Of The High Voltage Mode

    1 8 . 3 P A R A M E T E R I N T E R V A L S O F T H E H I G H V O L T A G E M O D E WAVE FORM Power: CH1/CH2, Co-Cont, Alternate, Constant, Sweep Pulsation amplitude...

  • Page 37: Cap.19 Tens Mode

    C a p . 1 9 T E N S M O D E 1 9 . 1 R E Q U I R E M E N T S F O R U S E ELECTRODES Plastic electrode, self-adhesive COMBINED CHANNELS*2 -Independent Operating mode, each channel must be used independently.

  • Page 38: Procedures

    1 9 . 2 P R O C E D U R E S 1. Make sure that the electrodes are placed on the area to be treated. 2. Tap the button for the selection of the therapy to open the sub- window.
  • Page 39 Time On/Off ------ Tap On/Off to open the sub-window. Tap to set the time, rise time, hold time, fall time, time off, time or number of induced spasms to flash the current set value. Change the desired value by using the control knob for parameter/intensity, then tap OK to close the sub-window.

  • Page 40: Parameter Intervals Of The Tens Mode

    1 9 . 3 P A R A M E T E R I N T E R V A L S O F T H E T E N S M O D E Power: CH1/CH2, Co-Cont, Alternate, Constant, Sweep WAVE FORM and Intense Pulsation amplitude...

  • Page 41: Cap.20 Microcurrent Mode - Mens

    C a p . 2 0 M I C R O C U R R E N T M O D E - M E N S 2 0 . 1 R E Q U I R E M E N T S F O R U S E ELECTRODES Plastic electrode, self-adhesive COMBINED CHANNELS*2 Each channel must be used independently...

  • Page 42: Cap.21 Procedures

    C a p . 2 1 P R O C E D U R E S 1. Make sure that the electrodes are placed on the area to be treated. 2. Tap the button for the selection of the therapy to open the sub- window.

  • Page 43: Parameter Intervals Of The Microcurrent Mode

    2 1 . 1 P A R A M E T E R I N T E R V A L S O F T H E M I C R O C U R R E N T M O D E Power: Only constant WAVE FORM Frequency: from 0.3 to 400Hz (0,3.

  • Page 44: Cap.22 Dc (Direct Current) Mode

    C a p . 2 2 D C ( D I R E C T C U R R E N T ) M O D E 2 2 . 1 R E Q U I R E M E N T S F O R U S E ELECTRODES Plastic electrode, self-adhesive COMBINED CHANNELS*2 Each channel must be used independently...

  • Page 45: Procedures

    2 2 . 2 P R O C E D U R E S 1. Make sure that the electrodes are placed on the area to be treated. 2. Tap the button for the selection of the therapy to open the sub- window.

  • Page 46: Parameter Intervals Of The Dc Mode

    2 2 . 3 P A R A M E T E R I N T E R V A L S O F T H E D C M O D E Frequency: only DC WAVE FORM polarity: Positive/negative Time: from 1 to 60 min (in a 1 minute increment, voltage phase 1+ phase 2 60)

  • Page 47: Cap.23 Dynamic Mode

    C a p . 2 3 D Y N A M I C M O D E 2 3 . 1 R E Q U I R E M E N T S F O R U S E ELECTRODES Silicone electrode, self-adhesive COMBINED CHANNELS*2 -Independent Operating mode, each channel must be used independently.
  • Page 48 Fixed 2-phase MODE Short Period and Long Period MODE Hi-ESonyc 48 of 68...
  • Page 49 Interrupted 2-phase MODE Interrupted Single-phase MODE Hi-ESonyc 49 of 68...

  • Page 50: Procedures

    2 3 . 2 P R O C E D U R E S 1. Make sure that the electrodes are placed on the area to be treated. 2. Tap the button for the selection of the therapy to open the sub-window. 3.

  • Page 51: Parameter Intervals Of The Dynamic Mode

    2 3 . 3 P A R A M E T E R I N T E R V A L S O F T H E D Y N A M I C M O D E Power: CH1/CH2, MS, DF, CP, RS, PS Frequency: Constant: 50Hz or 100Hz Chanel1/2, Co Cont and Alternate: from 20 to 200 Hz (in increments of 10 Hz)

  • Page 52: Cap.24 Exponential Mode, Rectangular, Triangular

    C a p . 2 4 E X P O N E N T I A L M O D E , R E C T A N G U L A R , T R I A N G U L A R 2 4 .
  • Page 53 RECTANGULAR MODE TRIANGULAR MODE Hi-ESonyc 53 of 68...

  • Page 54: Procedures

    2 4 . 2 P R O C E D U R E S 1. Make sure that the electrodes are placed on the area to be treated. 2. Tap the button for the selection of the therapy to open the sub- window.

  • Page 55: Cap.25 Faradic Mode

    C a p . 2 5 F A R A D I C M O D E 2 5 . 1 R E Q U I R E M E N T S F O R U S E ELECTRODES Silicone electrode, self-adhesive COMBINED CHANNELS*2 -Independent Operating mode, each channel must be used independently.

  • Page 56: Procedures

    2 5 . 2 P R O C E D U R E S 1. Make sure that the electrodes are placed on the area to be treated. 2. Tap the button for the selection of the therapy to open the sub- window.

  • Page 57: Cap.26 List Of Programs For Electrostimulation

    C a p . 2 6 L I S T O F P R O G R A M S F O R E L E C T R O S T I M U L A T I O N The list below indicates the pre-set programs.
  • Page 58 RUSSIAN HIGH VOLTAGE TENS MICROCURRENT Hi-ESonyc 58 of 68...

  • Page 59: Cap.27 Ultrasound Mode

    C a p . 2 7 U L T R A S O U N D M O D E 2 7 . 1 R E Q U I R E M E N T S F O R U S E HANDPIECE Standard handpiece, conical head handpiece COMBINED CHANNELS...

  • Page 60: Procedures

    2 7 . 2 P R O C E D U R E S Ensure that the probe is inserted into the appropriate panel connector. Turn the encoder to set the desired power level. Tap the button for the selection of the frequency, once selected press OK.

  • Page 61: Cap.28 List Of Programs For Ultrasound

    C a p . 2 8 L I S T O F P R O G R A M S F O R U L T R A S O U N D The list below indicates the pre-set programs Frequency Progr.

  • Page 62: Cap.29 Setting Window

    Aesthetic Program name programs Edematous localized cellulite Flaccid localized cellulite Compact localized cellulite Cellulite Edematous distributed cellulite Flaccid distributed cellulite Compact distributed cellulite Localized lymphatic drainage Lymphatic drainage Distributed lymphatic drainage Localized weight loss Weight Loss Distributed weight loss Boils Granulomas Skin Local scleroderma...

  • Page 63: Cap.31 Maintenance

    Do not place this apparatus near or over other devices when used. If placed near or over other devices check that it works properly before using it. C a p . 3 1 M A I N T E N A N C E If you want the machine to operate properly and safely, even long after the date of purchase, it is important to perform the following maintenance operations.

  • Page 64: Maintenance Of The Wire Insulations

    The useful life of the instrument is guaranteed by the company only if such maintenance is performed regularly. NOTE: it is recommended to perform the checks only with New Age Italia srl, or qualified personnel authorized by it. The apparatus that requires maintenance can be sent directly to the company laboratories or delivered to the retailer where it was purchased.

  • Page 65: Cap.34 Symbols

    C a p . 3 4 S Y M B O L S CLASS II APPARATUS BF TYPE APPARATUS CAUTION, SEE THE ATTACHED DOCUMENTATION THIS DEVICE IS MARKED CE ACCORDING TO DIRECTIVE 93/42CEE AMENDED BY 2007/47/CE C a p . 3 5 W A R N I N G S Use the apparatus only with electrical installations that comply with the Safety Standards in force.

  • Page 66: Cap.36 Standards

    C a p . 3 8 B A S I C E Q U I P M E N T A N D A C C E S S O R I E S 1 User manual 1 Hi-E Sonyc unit 1 Power cord...

  • Page 67: Cap.39 Table With Error Codes

    1 Cable + handpiece for ultrasound therapy (standard) 1 Pack of ultrasound GEL Accessories and consumables available on request (not included) Pre-gelled electrodes Conductive silicone electrodes Y cables Elastic bands Anal and vaginal probe Cable+ultrasound handpiece (Standard or conic) C a p . 3 9 T A B L E W I T H E R R O R C O D E S In case of malfunction, the apparatus can return one of the following errors.

  • Page 68: Cap.40 Bibliography

    C a p . 4 0 B I B L I O G R A P H Y 1. Vasta: “ Manuale pratico illustrato di terapia fisica” - Ed.Marrapese_Roma 1998 2. Freeman, Campbell, Long.: ”Naxalone does not affect pain relief induced by electrical stimulation in man”...
