MikroTik R11e-LR2 Quick Start Manual

R11e-LR2
R11e-LR2
R11e-LR2 - LR mPCIe Gateway module. It can be integrated into a RouterBOARD product with mPCIe slot. Requires LR package installation to configure
in RouterOS.
Specifications
Low power-consuming with mini PCIe interface, for long-distance data, transmit:
Product code R11e-LR2
LoRa band 2.4 GHz
Tx chain number 1
Rx chain number 4
TX/RX channels 2403 MHz, 2425 MHz, 2450 MHz, 2479 MHz
RF Output power 10 dBm
Operating temparature -40°C to +70°C

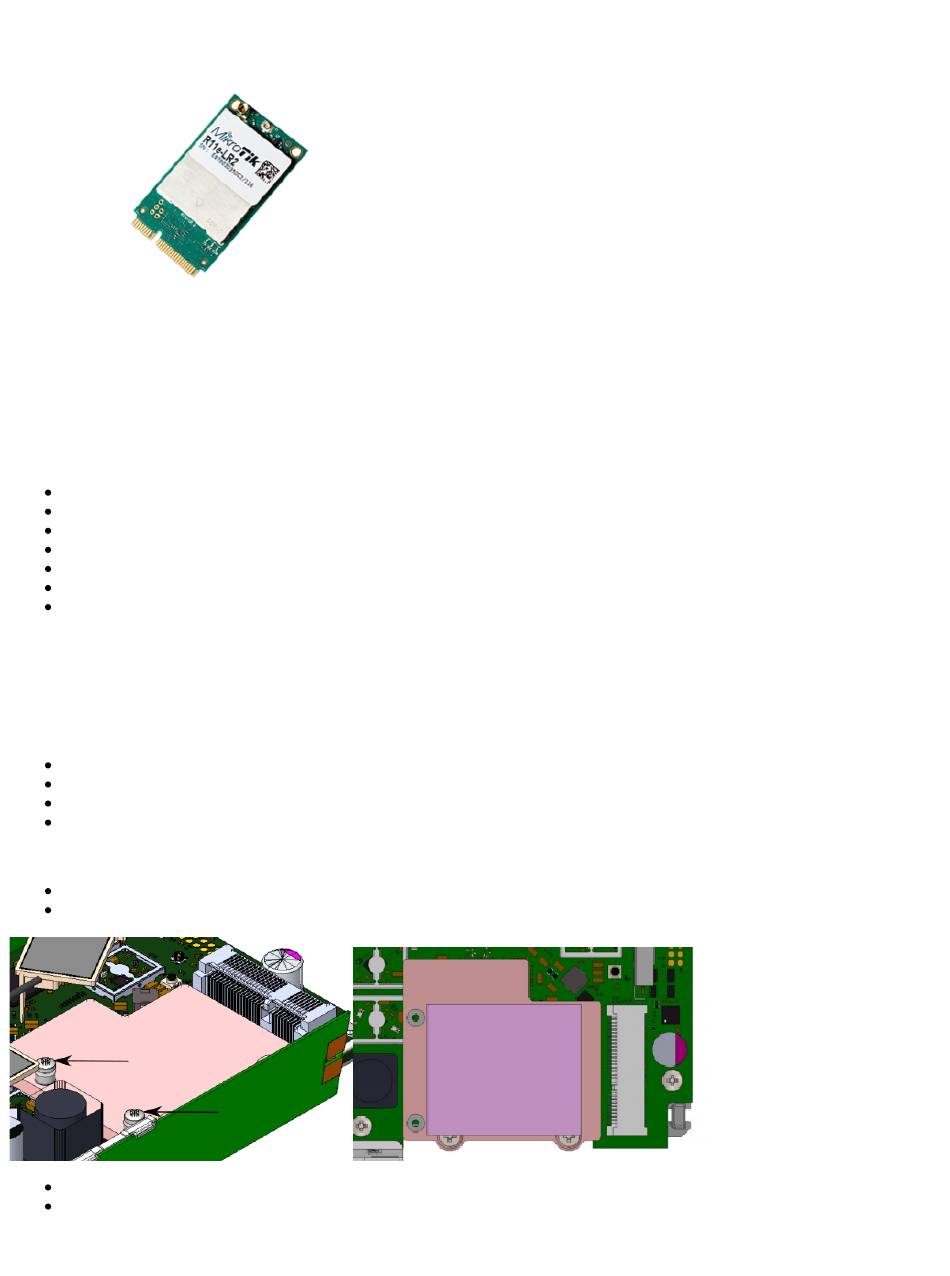

Installing the module in your device

R11e-LR2 for professional use. Each of the cards comes in ESD protective packaging. When handling electrical equipment please observe the following
safety precautions:
Use a wrist grounding strap when unpacking and working with electrical components to avoid electrical discharge (ESD) damage;
After unpacking please place the card on the anti-static mat;
When installing make sure there are no objects that can damage or touch the PCB plate;
The card can be installed in your desired device using the factory provided screw holes in a PCB plate;
Pictures added for illustration purposes, the device configuration, and the placement of the miniPCIe card may vary.
Locate miniPCIe slot on your device;
Unscrew two factory attached screws;
Optionally you can use the thermal pad by placing it under the card, the thermal pad is not included in the package;
Install the module to the miniPCIe slot and secure it with previously removed screws. Tightening torque 0,3 Nm.
