R11e-LoRa9
R11e-LoRa9 - LoRa mPCIe Gateway module. Can be integrated into RouterBOARD product with mPCIe slot.
Requires LoRa package installation to configure in RouterOS.

Specifications

Low power-consuming with mini PCIe interface, for long-distance data transmit.
Interface - Mini-PCIe
Temperature Operating -40 / +70
Supports Class A,B and C
Frequency - 902-928MHz (US)
RF Output power - 902-928MHz (US) @ 20dBm
Range 10km (@ 980bps) Depends on the antenna used.

Installing the module in your device

R11e-LoRa9 for professional use. Each of the cards comes in ESD protective packaging. When handling electrical
equipment please observe the following safety precautions:
Use a wrist grounding strap when unpacking and working with electrical components to avoid electrical
discharge (ESD) damage.
After unpacking please place the card on the anti-static mat.
When installing make sure there are no objects that can damage or touch the PCB plate.
The card can be installed in your desired device using the factory provided screw holes in a PCB plate.
Pictures added for illustration purposes, the device configuration and the placement of the miniPCIe card may vary.

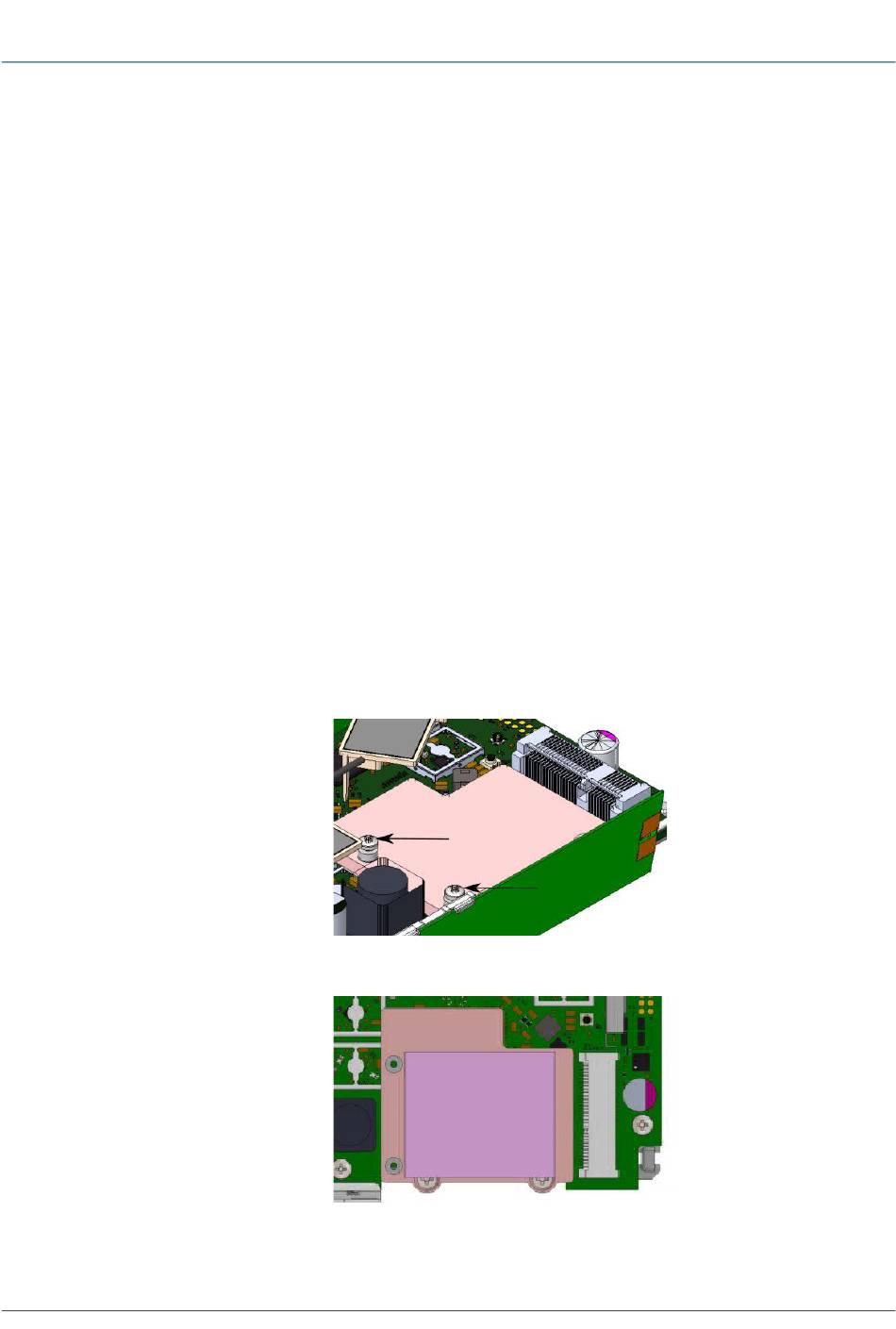

Locate miniPCIe slot on your device.
Unscrew two factory attached screws.
Place thermal pad to the heat sink plate.
See mikrotik.com/products for the latest version of this document.
Page 1, Document #51982 Modified on: 25EP.2019
