MikroTik R11e-LoRa8 Quick Manual

R11e-LoRa8

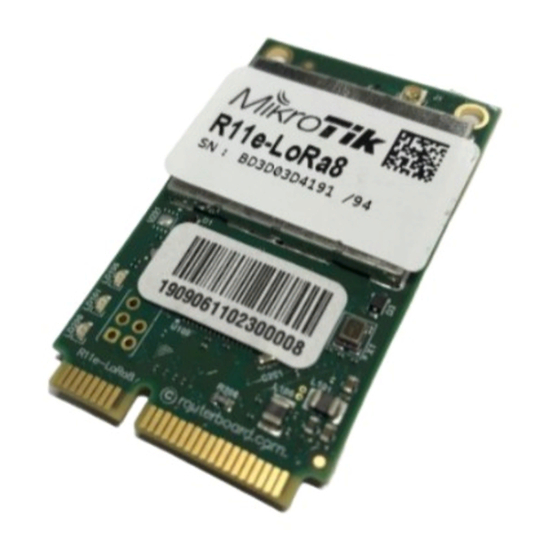

R11e-LoRa8 - LoRa mPCIe Gateway module. Can be integrated into RouterBOARD product with mPCIe slot.
Requires LoRa package installation to configure in RouterOS.
Specifications
Low power-consuming with mini PCIe interface, for long-distance data transmit:
Interface – Mini-PCIe;
•
Temperature Operating -40 / +70;
•
Supports Class A and C;
•
Frequency - 863-870MHz (EU);
•
RF Output power - 863-870MHz (EU) @ 4.60 dBm
•
Receive max sensitivity - 137 dB @ SF12, Depends on the antenna used;
•
Maximum power consumption 2 W.
•

Installing the module in your device

R11e-LoRa8 for professional use. Each of the cards comes in ESD protective packaging. When handling electrical
equipment please observe the following safety precautions:
Use a wrist grounding strap when unpacking and working with electrical components to avoid electrical
•
discharge (ESD) damage;
After unpacking please place the card on the anti-static mat;
•
When installing make sure there are no objects that can damage or touch the PCB plate;
•
The card can be installed in your desired device using the factory provided screw holes in a PCB plate;
•
Pictures added for illustration purposes, the device configuration and the placement of the miniPCIe card may vary.

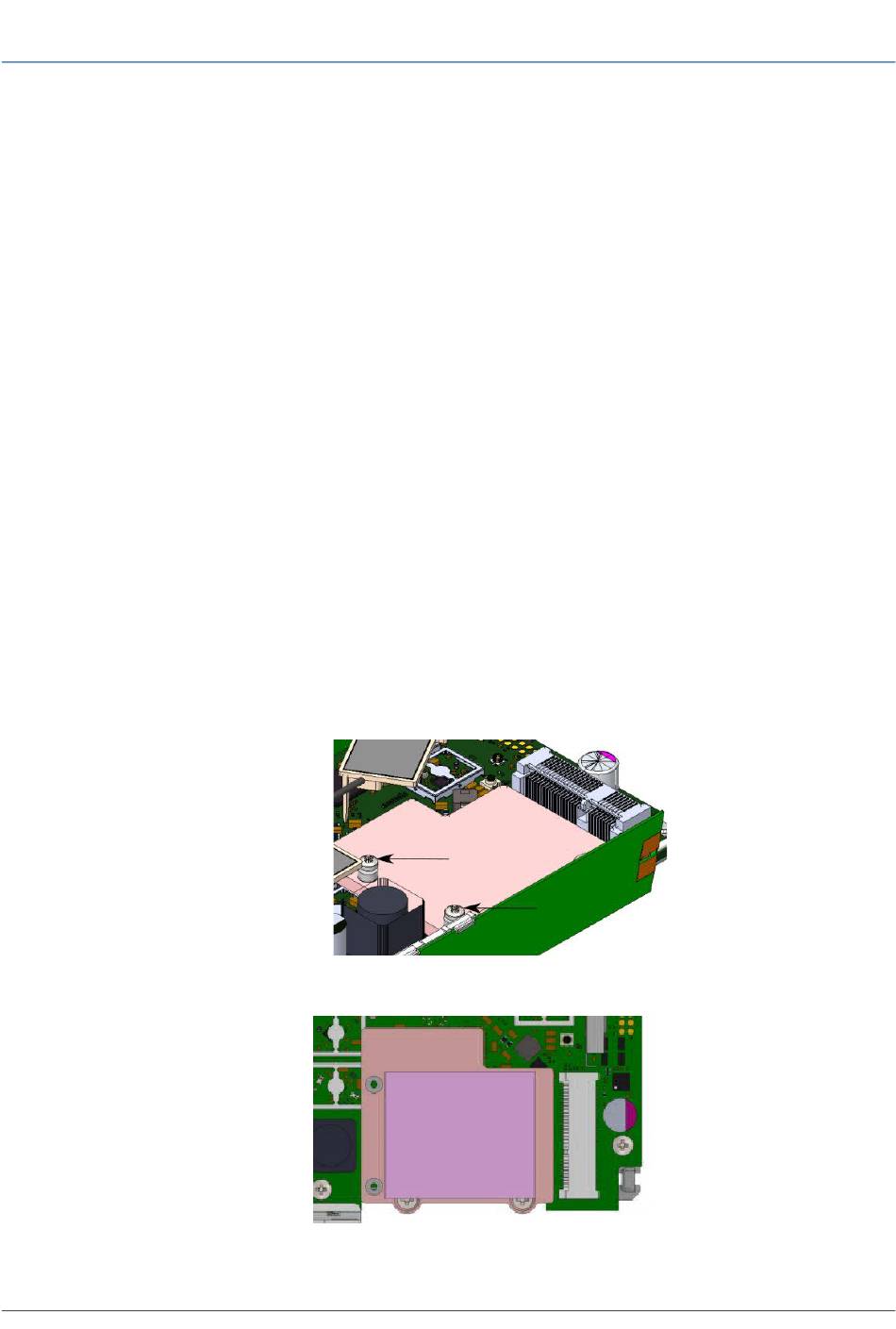

Locate miniPCIe slot on your device;
•
Unscrew two factory attached screws;
•
Place thermal pad to the heat sink plate;
•
See mikrotik.com/products for the latest version of this document. Page 1, Document #51968 Modified on: 01.NOV.2019
