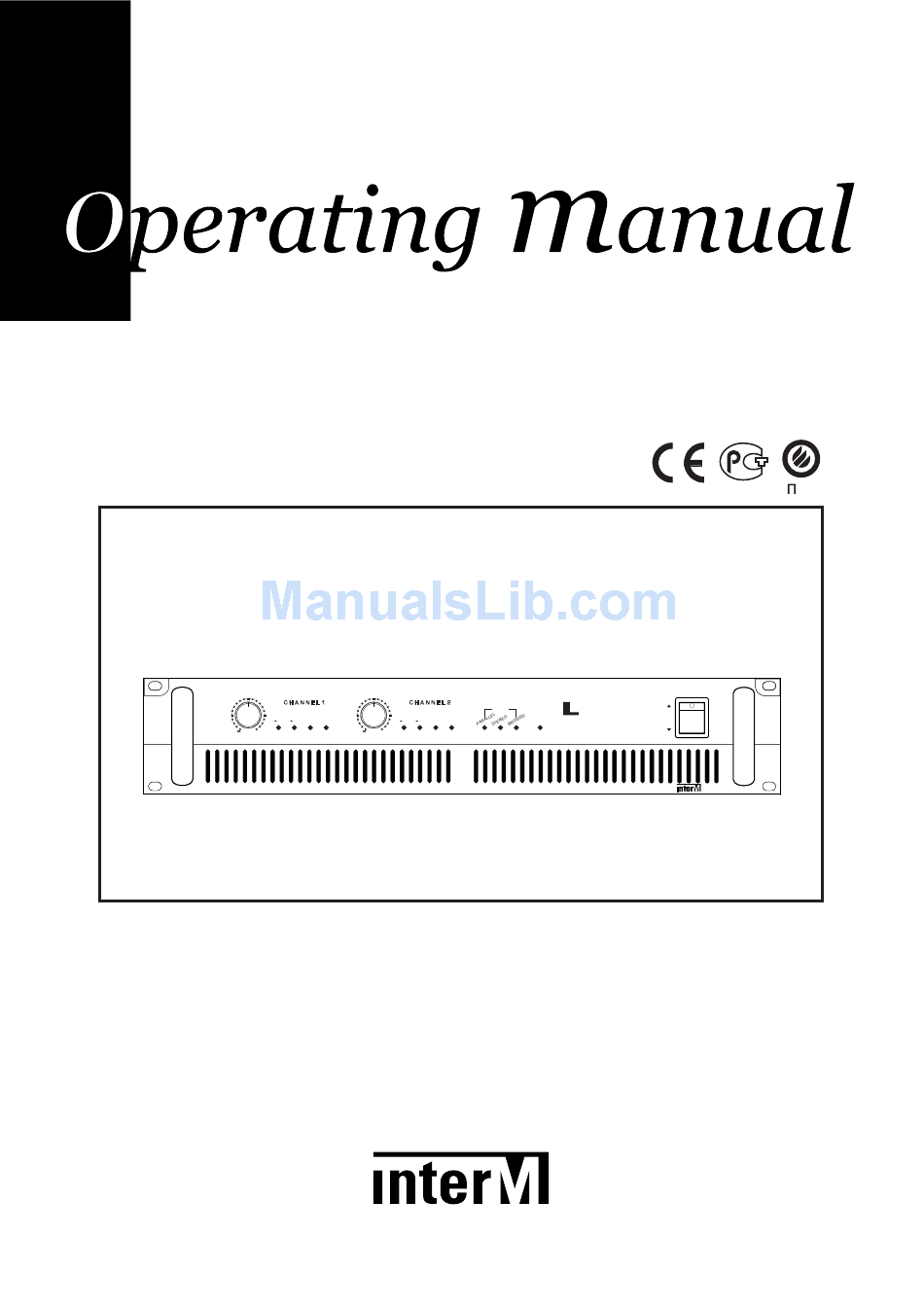

- Page 1 L800/1400/1800/2400 10 CLIP/LIM PROT Professional Power Amplifier 2400 MODE 10 CLIP/LIM PROT POWER PROFESSIONAL POWER AMPLIFIER OC03 OC03 B370031 POWER...
-
Page 2: Table Of Contents
Contents Contents Welcome Warning...1 Unpacking ...2 Short Form Instructions...2 Installation Environment ...3 Important Safety Instructions ...3 Description ...4 Features ...4 Accessories ...4 Front Panel ...5 Rear Panel ...6 Applications Stereo Installation ...8 Parallel Installation ...8 Bridge Mono Installation ...9 Linked Installation ...9 Connections ...10 Block Diagrams ...11... -
Page 3: Warning
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good many features and how to use them. -
Page 4: Unpacking
PROFESSIONAL POWER AMPLIFIER Unpacking Please take a few minutes to read this manual to familiarize yourself with important information regarding installation, product features, and operation. As with most electronic devices, ORIGINAL PACKAGING (OR EQUAL) IS REQUIRED in the unlikely event that the product needs to be returned for servicing. -
Page 5: Installation
Installation Installation Environment Never place this product in an environment which could alter its performance or reduce its service life. Such environments usually include high levels of heat, dust, moisture, and vibration. Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. -
Page 6: Description
A 2U rack space, 2 channel amplifier capable of 830W into 4Ω load (bridged mono). - L1400 - L-1400 A 2U rack space, 2 channel amplifier capable of 1400W into 4Ω load (bridged mono). A 2U rack space, 2 channel amplifier capable of 1400W into 4Ω load (bridged mono). -
Page 7: Front Panel
Front Panel Front Panel 10 CLIP/LIM PROT 1. HANDLES These are provided for easy transporting and installing into equipment enclosures or racks. 2. LEVEL CONTROL This control adjusts the level (amplitude) of the input signal for each channel. In stereo or parallel mode the knobs will determine the signal level independently for each channel. -
Page 8: Rear Panel
PROFESSIONAL POWER AMPLIFIER Rear Panel Rear Panel MODEL NO. L2400 PROFESSIONAL POWER AMPLIFIER RATED OUTPUT 750W/CH @4Ω 1. AC INPUT Connect this product to an appropriate AC mains power source using the supplied Universal AC Power Cord. 2. CIRCUIT BREAKER This protects the amplifier by shutting down the power when the amplifier operates abnormally due to overload or malfunction. - Page 9 PROFESSIONAL POWER AMPLIFIER 7. HIGH PASS FILTER SWITCH Select the switch position that is best suited for your application. The OFF position allows full frequency range signals to reach the loudspeakers. The 30Hz position reduces the signal amplitude below 30 Hz to conserve power and help protect the loudspeakers.
-
Page 10: Applications
PROFESSIONAL POWER AMPLIFIER Applications Applications Stereo Installation Parallel Installation L800/1400/1800/2400... -
Page 11: Bridge Mono Installation
PROFESSIONAL POWER AMPLIFIER Applications Applications Bridged Mono Installation Linked Installation Linking is possible when in Stereo/Parallel or Bridged Mono operation L800/1400/1800/2400... -
Page 12: Connections
PROFESSIONAL POWER AMPLIFIER Connections Applications Inter-M products are wired according to professionally accepted wiring practices used throughout the world. Balanced XLR connectors are wired as described: Pin #1 shield Pin #2 Positive Pin #3 Common Balanced 1/4” TRS connectors are wire as described:... -
Page 13: Block Diagrams
PROFESSIONAL POWER AMPLIFIER Block Diagram Block Diagram L800/1400/1800/2400... -
Page 14: Specifications
=4Ω 1kHz @ 0.5% THD Frequency Response R =8Ω, P=1W Total Harmonic Distortion f=20Hz~20kHz, Half Power(L800/1400) 1/10Power(L1800/2400) STEREO R =8Ω & 4Ω BRIDGED R =8Ω Channel Separation Half Power R f=1kHz, ATT. max. Input 600Ω Shunt Residual Noise(DIN Audio Filter) Signal-to-Noise Ratio DIN Audio, Input 600Ω... -
Page 15: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the autho- rized Inter-M Distributor for your specific country or region. - Page 16 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
