Summary of Contents for Intellinet 516624

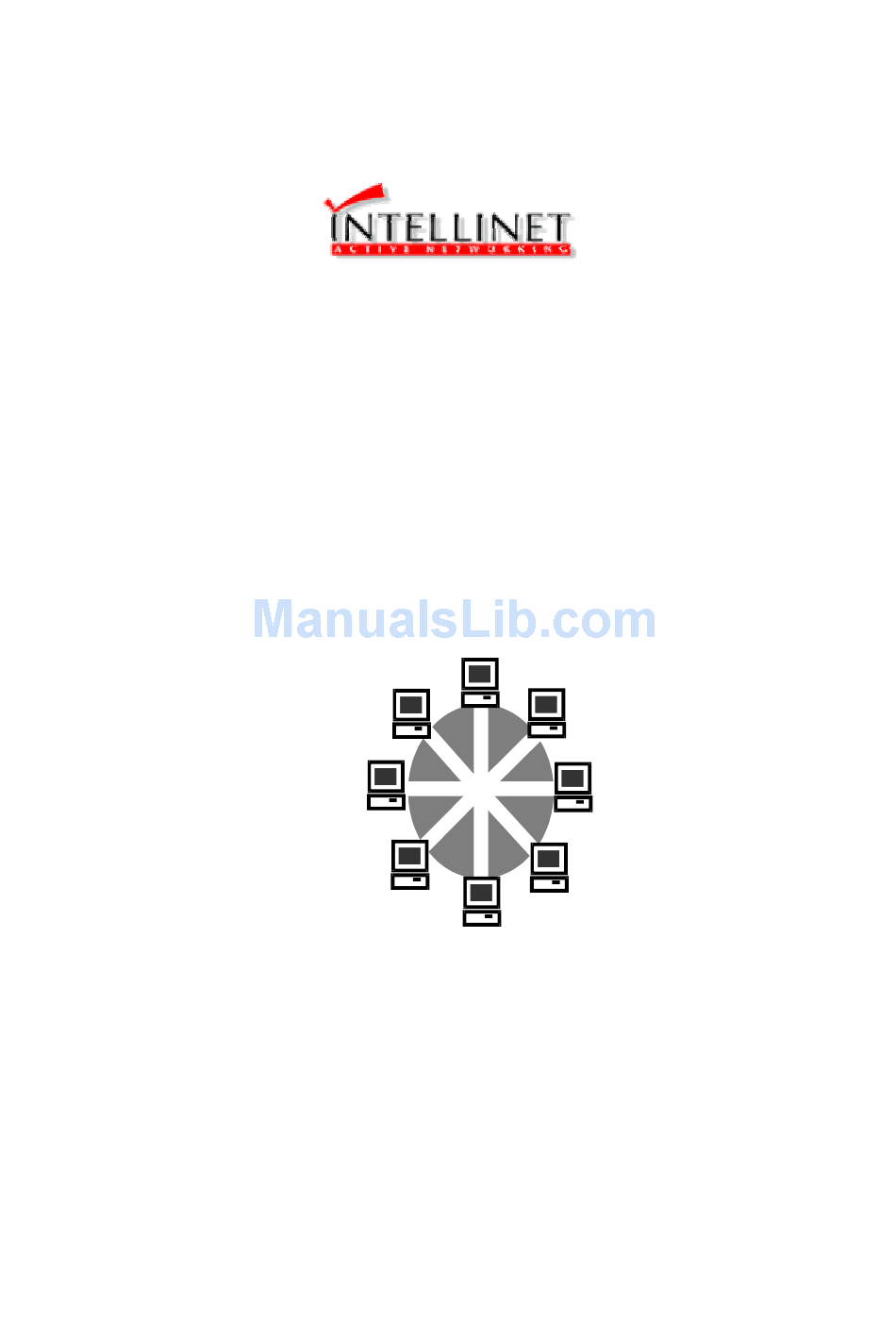

- Page 1 Internet Broadband Mini Router/Internet Broadband Router Quick Installation Guide...
-
Page 2: Package Contents
10/100M N-Way Switch function. It is expandable by cascading two or more switches together by connecting any RJ-45 ( MDI/MDIX ) auto crossover (Internet Broadband Router only) port on the router to another one. .It also uses store-and-forward switching scheme capability to support rate adaptation and ensure data integrity. -
Page 3: Front Panel
Front Panel Internet Broadband Mini Router Internet Broadband Router Internet Broadband Router Li nk/Act. W /4 Port 100/10M Swit ch Act. Internet Broadband Router W/8 Port 100/10M Switch Link/Act. Act. 7 UP-Link Rear Panel Internet Broadband Mini Router Reset---------------------... -
Page 4: Setting Up The Network Environment
STEP 1. When the Router power is on within two seconds. STEP 2. Please keep pushing the Reset bottom from the Com port Link LED twinkle quickly to it put out. STEP 3. Right now, your Router has done Reset To Factory Default? completely. Setting Up The Network Environment This quick installation guide assumes that you have installed an Ethernet network device in your pc. - Page 5 4Basic TCP/IP Settings Prior to software configuration, each PC on your LAN must be configured as follows in order to communicate with Internet Broadband Mini Router/Internet Broadband Router properly. Otherwise, the Router won between them. From your Windows95/98/NT, click Start, choose Settings and select Control Panel.
- Page 6 4IP Configuration Windows95/98 Start up your Windows95/98, please follow the next procedure to get a valid IP address for your workstation from Internet Broadband Mini Router /Internet Broadband Router. Power on Internet Broadband Mini Router/Internet Broadband Router click Start, then Run,type WINIPCFG, then OK.
- Page 7 FCC Warning This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this guide, may cause interference to radio communications. This equipment has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of the FCC rules, which are designed to provide reasonable protection against radio interference when operated in a commercial environment.
- Page 8 The manufacturer warrants to the original consumer /purchaser free from defects in materials or workmanship for limited time from the original factory shipment date. KEEP THIS Model: Date Purchased: Where Purchased: From Whom: WARRANTY REGISTRATION CARD Please complete this form and return it within 10 days of purchase to validate warranty Name/Title: Company: Address:...
- Page 9 Adapter Address , IP Address, Subnet Mask, and Default Gateway. Type IPCONFIG/release to erase the current settings. Then type IPCONFIG/renew to get IP-related information from the Router DHCP server. lClick OK to close the window.
- Page 10 After your login request is verified, the router configuration homepage will appear. lClick Quick Install button on the left. Now, you have completed the basic set up for connecting to your LAN. For advanced/custom configuration, please refer to user...
-
Page 11: Technical Specification
Internet Broadband Mini Router Hardware CPU: ARM 32-BIT RISC MICROCONTROLLER Flash Memory: 512KB SDRAM: No. of Port 1 Ethernet WAN Port 10Mbps No. of COM Port: 1 (D-SUB-9 male) COM Port Standard EIA RS232 Max. COM Port Transfer Rate 115Kbps Standard: IEEE 802.3 , IEEE802.3u...
